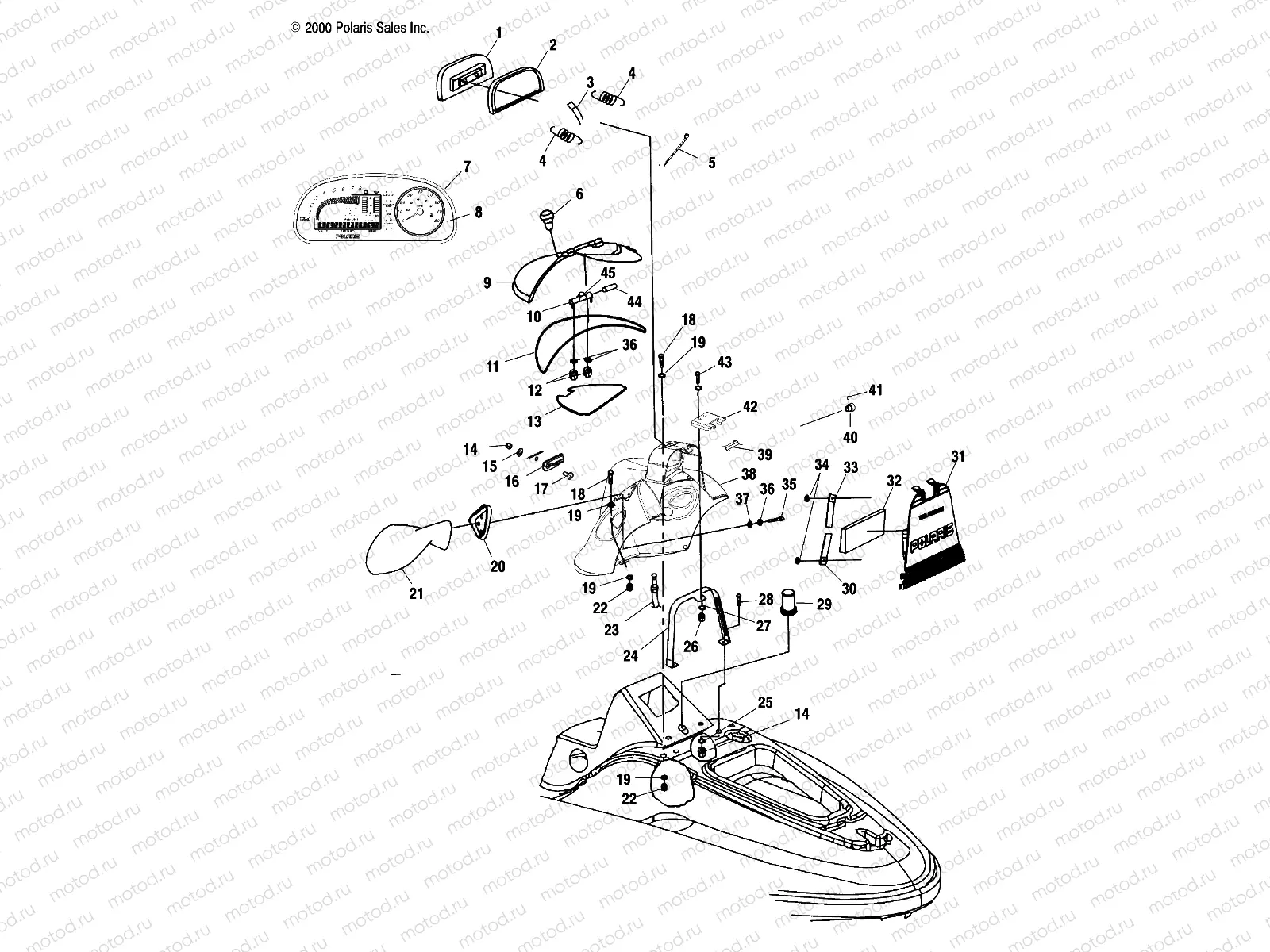

Главная Каталог товаров Polaris EPC 2001 Polaris PWC Polaris 2001 INT'L VIRAGE (W015197I) Polaris 2001 PWC SHROUD - W015197D (4964826482A003) | SHROUD - W015197D (4964826482A003)

SHROUD - W015197D (4964826482A003) | SHROUD - W015197D (4964826482A003)

SHROUD - W015197D (4964826482A003) | SHROUD - W015197D (4964826482A003)

Например: 3280365

1

3280365

GAUGE-MFI,VIRAGE,RVS RPM LIMIT

2

5411738

GASKET-MFI

3

8450070-190

"""PITOT LINE 90DEG FORMED 190CM"""

4

7041931

SPRING,MOUNTING,MFI

5

7080138

CABLE TIE

6

2653011

LATCH ASM,CONSOLE

7

2201593

MFI,BUTTON REPLACEMENT,KIT

8

3280342

BEZEL-MFI,OVERLAY

9

5434176-1119

LID-CONSOLE,CAT BLUE

10

7041754

SPRING-TORSION CONSOLE SS

11

5521579

SUBSTITUTED BY 5521630

12

7546705

NUT 6 MM. S.S.

13

5812235

PAD-CONSOLE

14

7546704

NUT NYLOK SS.

16

5245455

HOOK-CONSOLE,LATCH

17

7517669

Vis

18

7517668

Vis

19

7555874

WASHER FLAT S.S.

20

5411558

GASKET-MIRROR,RH

20

5411557

GASKET-MIRROR,LH

21

2631973-070

MIRROR,RH,BLACK,ASM.

21

2631972-070

MIRROR,LH,BLACK,ASM.

22

7546804

NUT HEX NYLOK

23

7081056

CABLE-CHOKE SNGL.CARB THK NECK

24

5244673

BRKT,SUPPORT,SHROUD

25

7555839

WASHER, FLAT, S.S.(10)

26

7541931

NUT HEX S.S.

27

7555837

WASHER, FLAT, S.S.(10)

28

7516807

Vis

29

5411664

GROMMET-DECK,WIRE HARNESS

30

2690151

STRAP-TOOL KIT LOWER

31

5433210-070

COVER-WIRE,SHROUD,BLK

32

LR--

CALIPER, BRAKE, RH

33

2690150

STRAP-TOOL KIT UPPER

34

7710517

RING-RETAINING,.25 STUD

35

7516805

SCREW, S.S.(10)

36

7552613

Rondelle (Lock)

37

7556094

Rondelle

38

2202006

KIT-SHROUD W/LID 00 VIRAGE

39

5812076

BUMPER,DOOR/SHROUD

40

2080004

KNOB,CHOKE

41

2080005

Vis

42

5244670

PLATE,LATCH,RECEIVER

43

7517879

"""SCR-#10-32X3/4 FLAT SOC SS(10)"""

44

5333698

PIN-HINGE,CONSOLE

45

5433384

HINGE-CONSOLE,3/16 PIN
