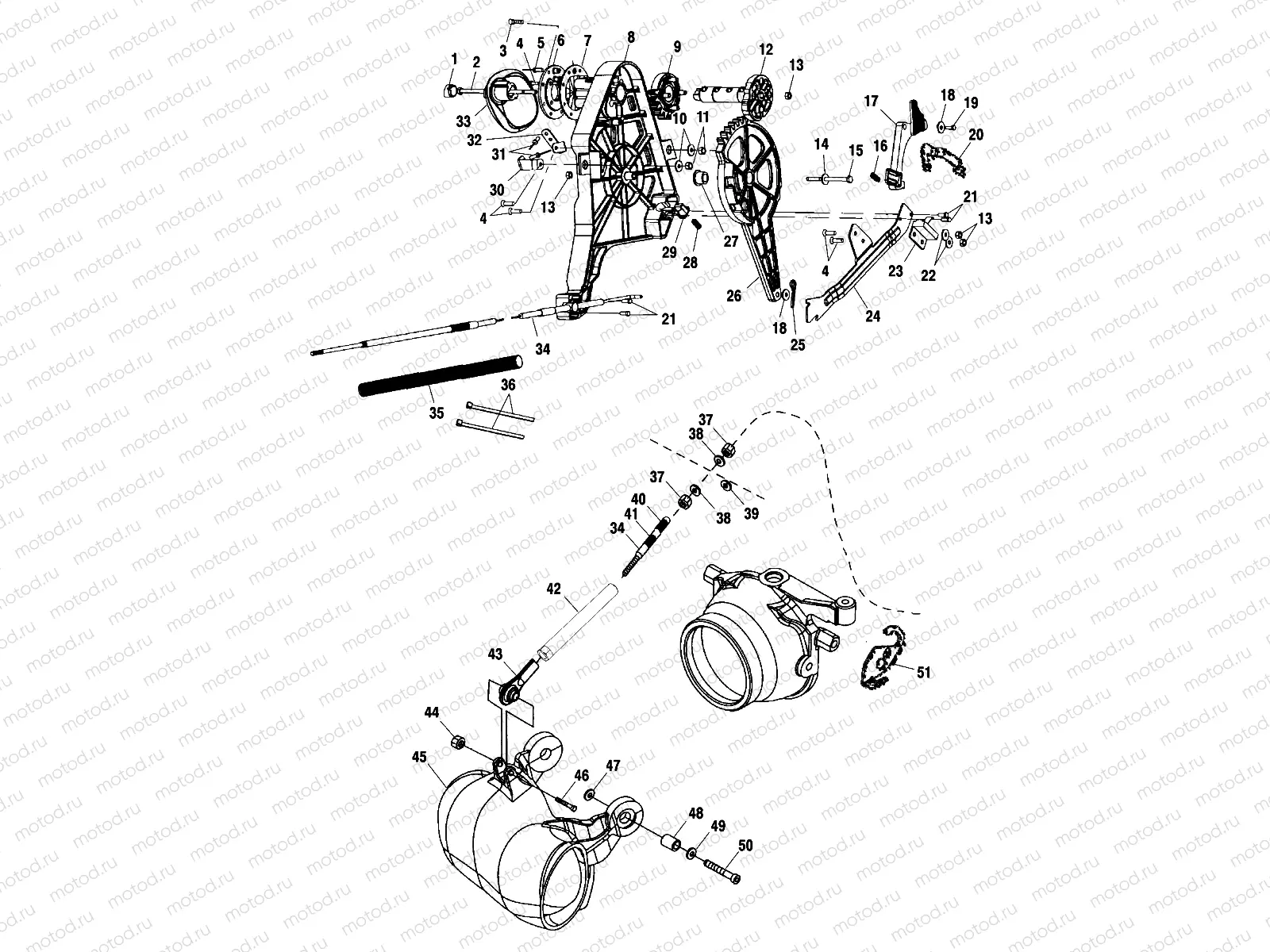

Главная Каталог товаров Polaris EPC 2001 Polaris PWC Polaris 2001 INT'L VIRAGE (W015197I) Polaris 2001 PWC REVERSE - W015197D (4964826482B003) | REVERSE - W015197D (4964826482B003)

REVERSE - W015197D (4964826482B003) | REVERSE - W015197D (4964826482B003)

REVERSE - W015197D (4964826482B003) | REVERSE - W015197D (4964826482B003)

Например: 5433677-070

1

5433677-070

CAP,REVERSE HANDLE,BLK

2

7516816

Vis

3

7516805

SCREW, S.S.(10)

4

7517669

Vis

5

7661040

RIVET-POP 3/16(10)

6

5434066

FLANGE-BASE,REVERSE

7

5811982

GASKET-REVERSE,MS

8

5434973

PLATE-BASE RVS

9

5434067

PINION-REVERSE,1"

10

7552613

Rondelle (Lock)

11

7546705

NUT 6 MM. S.S.

12

5433955

SHAFT-CAM,REVERSE [No Longer Available]

13

7546704

NUT NYLOK SS.

14

7555856

WASHER, FLAT, S.S.(10)

15

7516806

Vis

16

7041888

SPRING,COMPRESSION

17

5433676

ARM-REVERSE LOCK

18

7555837

WASHER, FLAT, S.S.(10)

19

7511882

SCREW, S.S.(10)

20

5412058

BRKT-LOCK ARM SUPPORT

21

7512049

Vis

22

7555857

WASHER, FLAT [No Longer Available]

23

2410241

SWITCH-RVS LIMIT SEALED

24

5245180

BRKT-REVERSE,SUPPORT

25

7661010

PIN COTTER

26

5433871

ARM REVERSE

27

5433647

BSHG-FLG,.500X.750X.563,AF

28

7041995

SPRING-COMPRESSION

29

5433673

PLUNGER-DETENT,REVERSE

30

5244289

BRKT,REVERSE PLATE,REAR

31

7621511

RIVET

32

5244288

BRKT,REVERSE PLATE,FWD Substituted by 5245635

33

5433605-070

HANDLE-REVERSE,BLACK

34

7080899

CABLE,REVERSE

35

4010051-100

CONDUIT-CONVOLUTED 100 CM

36

7080138

CABLE TIE

37

7542528

NUT (10)

38

1860103

Rondelle

39

7571625

Rondelle (Lock)

40

5411818

SEAL,ROD

41

5411819

SEAL,ROD

42

7080950

ASM-GUIDE TUBE REVERSE .75

43

7061062

ROD,END,1/4-28X.375

44

7547637

NUT-.25-20 HEX NK SS

45

5434049

GATE,REVERSE,DIRECTIONAL Substituted by 5434049

46

7517749

SCREW1/4-20X1.75HX(10)

47

7555866

Rondelle

48

5020683

Entretoise

49

7555874

WASHER FLAT S.S.

50

7515368

BOLT, S.S.(10)

51

5434272

BRKT-REVERSE STOP,PLASTIC GATE
