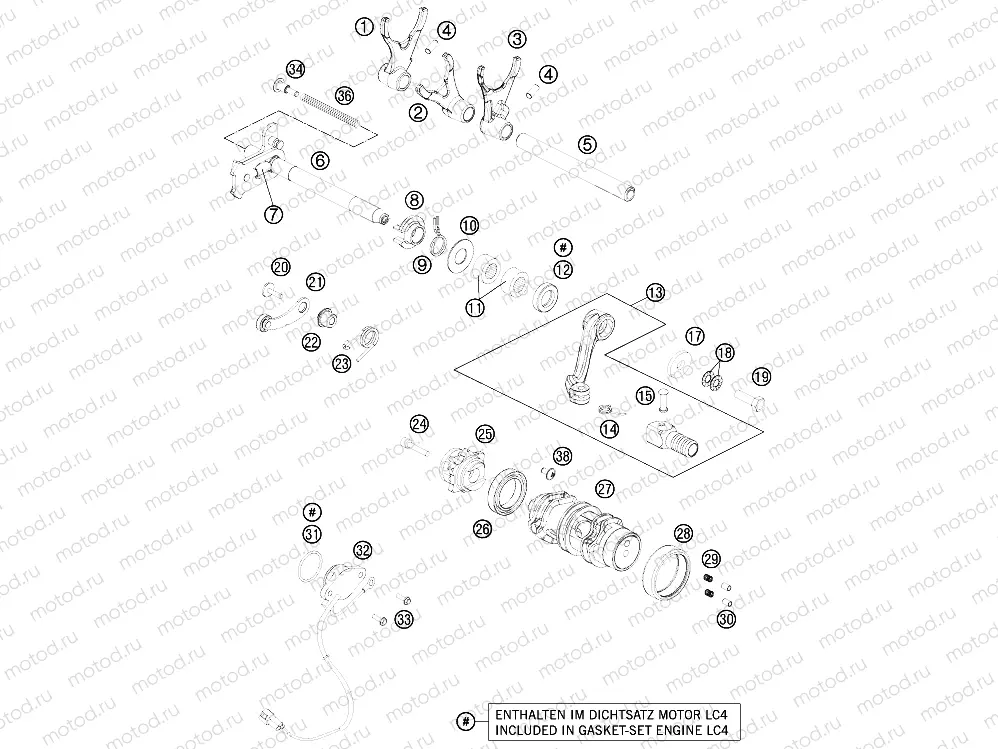

SHIFTING MECHANISM

SHIFTING MECHANISM
Например: 75034002100
1
75034002100
SHIFT FORK F. SLIDINGGEAR 5 12
2
75034001100
SHIFT FORK F. SLIDINGG. 3/4 12
3
75034003000
% SHIFT FORK F. SLIDINGGEAR 07
4
0402061480
NEEDLE ROLLER DIN5402 6X14,8
5
75034019100
SHIFTRAIL
6
75034005133
SHIFT SHAFT ASSY
7
56534013100
TENSIONING SPRING 0,8MM
8
54634020000
SPRING GUIDE
9
54634014100
RETURN SPRING 2,2MM '95
10
75034050000
STOP DISK 14X30X1,5 STEEL
11
54632095000
Needle bearing (14x20x12)
12
0760142461
SHAFT SEAL RING 14X24X6B VITON
13
76234031000
SHIFT LEVER CPL. 08
14
75034032000
SHIFTING LEVER SPRING
15
54634031050
BOLT 6X25 FOR SHIFT LEVER
17
50232050001
Rondelle (6,4x17x3)
18
50233041000
pc - Rondelle (Lock)
19
59009062016
Vis (spec)
20
0024060206
Vis
21
75034024044
LOCKING LEVER CPL. 07
22
75034052000
SLEEVE FOR LOCKING LEVER 07
23
60034023000
ARRESTING LEVER SPRING 03
24
0912060303
AH SCREW DIN0912-M 6X30
25
75034015000
SHIFT DRUM LOCATING CPL. 07
26
0625618050
Roulement (61805 C3)
27
75034012044
SHIFT ROLLER CPL. 07
28
0618354212
NEEDLE BEAR HK3512 35X42X12
29
60034014000
CONTACT SPRING 03
30
60034037000
CONTACT BOLT 03
31
0770275025
O-RING 27,5X2,5 NBR
32
60011023100
GEAR-POSITION SENSOR 06
33
0025050166
Vis
34
75034007044
SPRING F. SHIFTING SHAFT CPL.
36
75034007044
SPRING F. SHIFTING SHAFT CPL.
37
0125050003
WASHER DIN0125-A 5,3
38
073800501002
Pan Head Screw M5X10 Tx25
