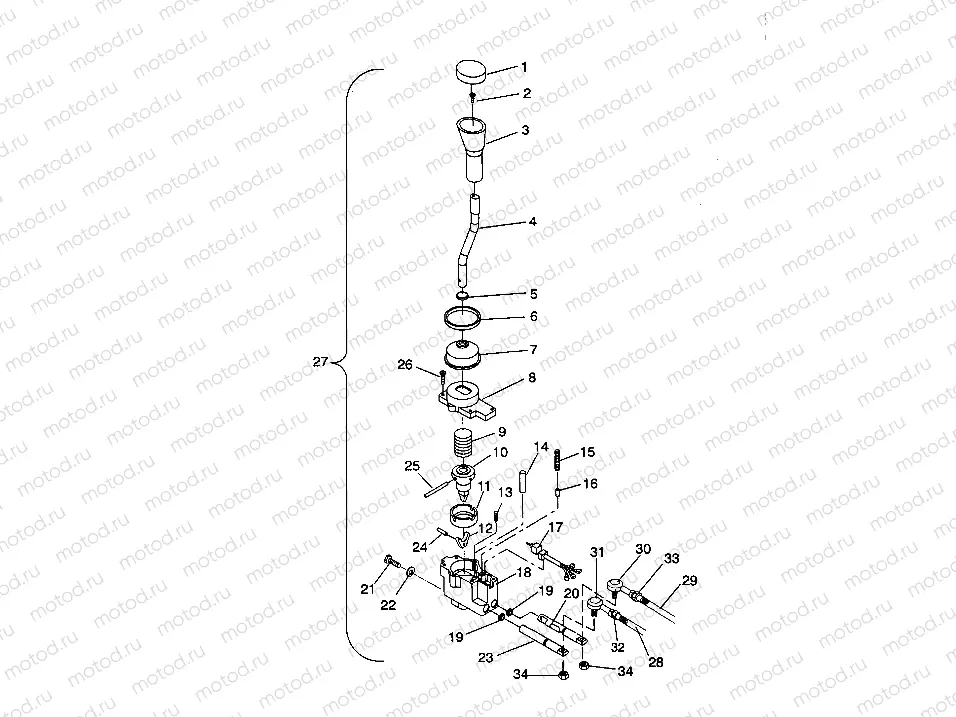

SHIFT LINKAGE ASSEMBLY Sportsman 4X4 / W938039 (4926382638031A) | SHIFT LINKAGE ASSEMBLY Sportsman 4X4 / W938039 (4926382638031A)

SHIFT LINKAGE ASSEMBLY Sportsman 4X4 / W938039 (4926382638031A) | SHIFT LINKAGE ASSEMBLY Sportsman 4X4 / W938039 (4926382638031A)

Например: 3233078

1

3233078

COVER,SHIFT KNOB

2

3233079

Vis

3

3233077

KNOB,SHIFT

4

3233086

ROD,GEAR SELECTOR Substituted by 3233203

5

3233090

STRAP WIRE

6

3233074

CLAMP,NARROW BAND

7

3233368

BOOT GEAR SELECTOR

8

3233081

COVER,GEAR SELECTOR

9

3233065

SPRING,HOLDING

10

3233061

STRIKER Substituted by 3233197

11

3233063

CUP BEARING

12

3233084

INTERLOCK BUTTERFLY

13

3233083

SPRING CENTERING

14

3233062

PIN STOP

15

3233069

SPRING DETENT

16

3233060

BULLET DETENT

17

3233371

SWITCH

18

3233082

BODY GEAR SELECTOR

19

3233076

O-Ring

20

3233088

"""SLIDE HIGH/REV."""

21

7512269

Vis

22

7552605

Rondelle

23

3233089

SLIDE LOW

24

3233070

PIN INTERLOCK

25

3233067

PIN,GROOVE

26

3233498

SCREW MAGNIGARD COATED

27

1341126

"""SELECTOR ASM GEAR"""

28

5020729

ROD HI-RA.SHIFTLINK

29

5020730

ROD,LOW-RA.SHIFTLINK

30

7061013

ROD END LH 6MM.

31

7061014

ROD END RH 6MM.

32

7546701

Nut

33

7546702

Nut

34

7546703

Nut (SELF-LOCKING)
