Главная Каталог товаров Polaris EPC 1993 Polaris ATV Polaris 1993 SPORTSMAN 4X4 (W938039) Polaris 1993 ATV GEARCASE ASSEMBLY Sportsman 4X4 / W938039 (4926382638033A) | GEARCASE ASSEMBLY Sportsman 4X4 / W938039 (4926382638033A)

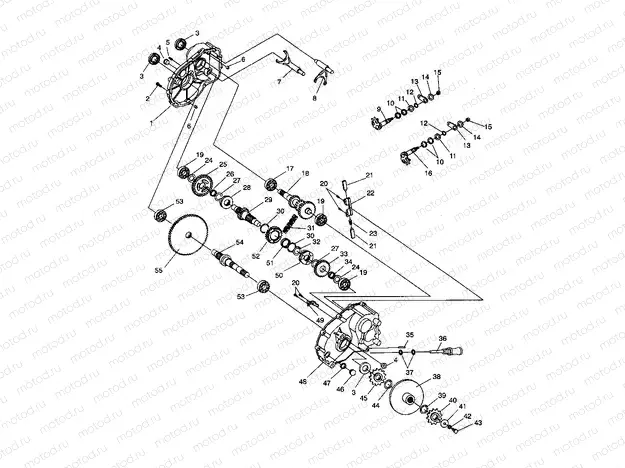

GEARCASE ASSEMBLY Sportsman 4X4 / W938039 (4926382638033A) | GEARCASE ASSEMBLY Sportsman 4X4 / W938039 (4926382638033A)

GEARCASE ASSEMBLY Sportsman 4X4 / W938039 (4926382638033A) | GEARCASE ASSEMBLY Sportsman 4X4 / W938039 (4926382638033A)

Например: 1341122

0

1341122

GEARCASE ASM.(ATV) Substituted by 1341123 (Incl. 1-39,41-44, 46-54)

1

3233002

CASE, LH

2

3233026

Vis

3

3233788

SEAL-TRIPLE LIP

4

3233024

BUSHING PIVOT

5

3233025

STUD

6

3233021

PIPE KNOCK

7

3233022

SHIFTRAIL LOW

8

3233023

SHIFTRAIL HIGH/REV.

9

3233038

SHAFT,LOW SHIFT

10

3233548

O-Ring

11

3233040

Rondelle

12

3233045

RING RETAINING

13

3233153

BELLCRANK

14

3233054

Rondelle

15

3233961

NUT-LOCK HEX FLANGE NYLON 5/16

16

3233039

SHAFT,HI/REV,SHIFT

17

3233019

Roulement

18

3233004

"""SHAFT INPUT"""

19

3233018

Roulement

20

3233747

Rondelle (Lock)

21

3233031

PIN

22

3233030

BRACKET

23

3233032

Spring

24

3233007

Rondelle

25

3233008

GEAR, 33T (33T)

26

3233009

BEARING NEEDLE

27

3233010

Rondelle

28

3233011

DOG,LOW,ENGAGEMENT

29

3233006

SHAFT,REVERSE

30

3233012

Rondelle

31

3233036

CHAIN SILENT 34P

32

3233029

RING RETAINING

33

3233016

"""GEAR 25T"""

34

3233017

BEARING NEEDLE

35

3233037

VENT

36

3233478

DIPSTICK

37

3233053

O-Ring

38

1910121

DISC,BRAKE,WELD. Substituted by 1910177

39

7710433

RING RETAINING

40

3221058

SPKT 11T

41

3233050

WASHER(10) Substituted by 7555701

42

7552901

Rondelle (Lock)

43

7515321

Vis

44

7710434

RING SNAP

45

3221044

SPKT 12T

46

3233448

PLUG

47

3233035

Rondelle

48

3233003

CASE RH

49

3233043

DEFLECTOR OIL

50

3233015

"""DOG HI/REV ENGAGEMENT"""

51

3233014

BEARING NEEDLE

52

3233013

"""SPROCKET 24T"""

53

3233020

Roulement

54

3233005

SHAFT,OUTPUT

55

3233092

GEAR 66T
