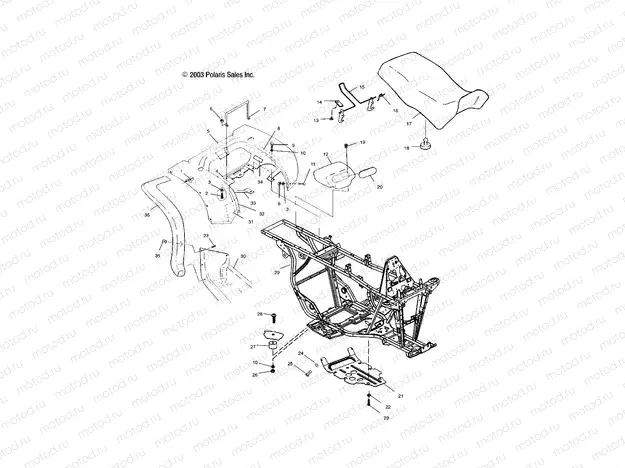

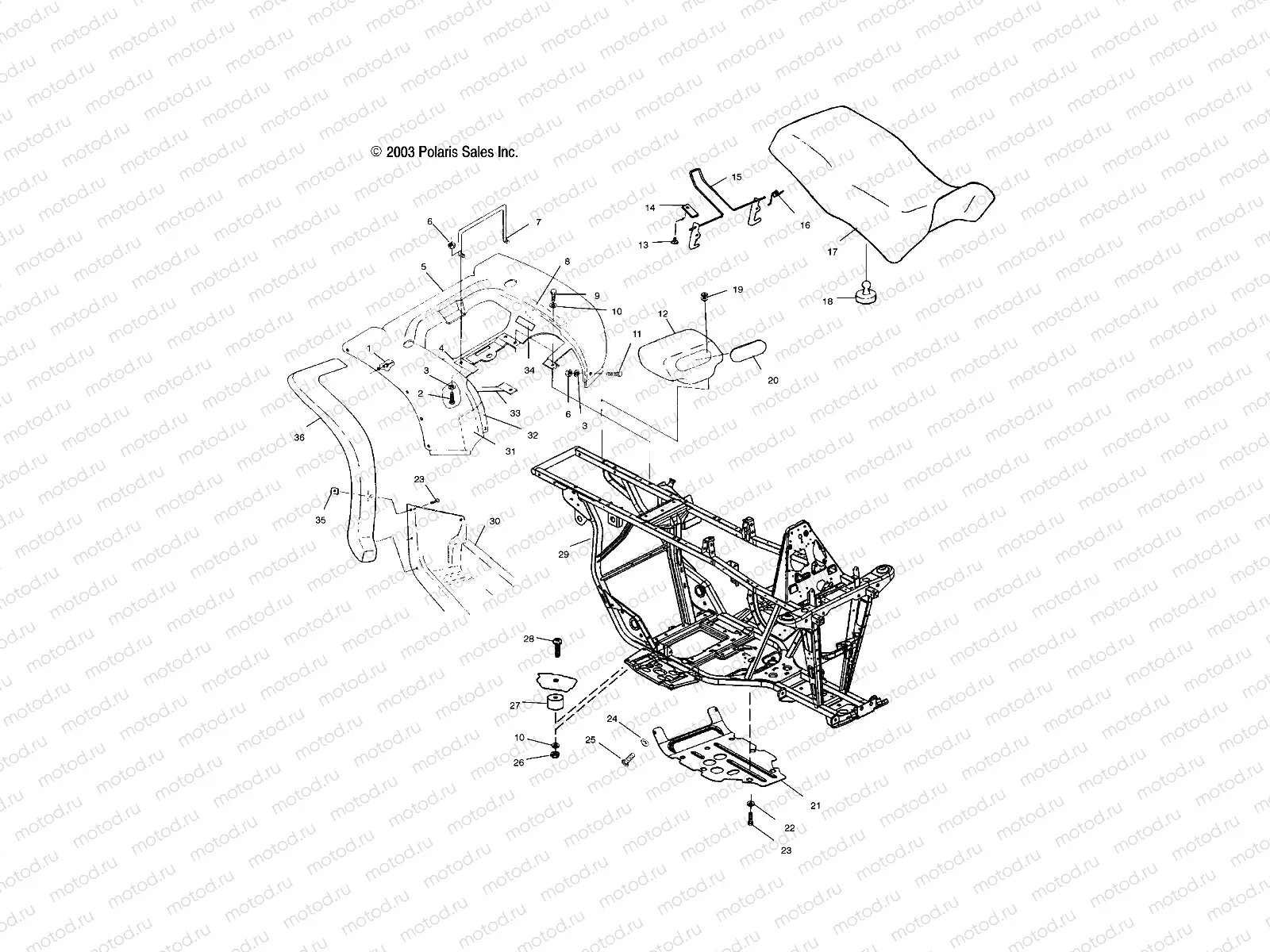

Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 MAGNUM 330 2X4 (A04CB32AA) Polaris 2004 ATV REAR CAB and SEAT - A04CB32AA/FC (4986188618A03) | REAR CAB and SEAT - A04CB32AA/FC (4986188618A03)

REAR CAB and SEAT - A04CB32AA/FC (4986188618A03) | REAR CAB and SEAT - A04CB32AA/FC (4986188618A03)

REAR CAB and SEAT - A04CB32AA/FC (4986188618A03) | REAR CAB and SEAT - A04CB32AA/FC (4986188618A03)

Например: 7661645

1

7661645

RIVET

2

7511930

Vis

3

7555792

Rondelle

4

5811107

FOIL REAR

5

5432117-400

CAB-REAR CAMO GREEN MET

6

7541925

NUT NYLOK 10-24 Y

7

5224592

RETAINER SEAT LATCH

8

5811308

FOIL TAPE 3 X 12

9

7512242

Vis

10

7555859

WASHER FLAT

11

7519641

BLT-10-24X3/4 MACHSCR PHL PAN

12

5431786

TOOLBOX

13

7621403

BLIND RIVET

14

5211033

BRACKET LEVER RETAINER

15

1040387

LATCH SEAT

16

7041370

SPRING LATCH

17

2684055

ASM-COVER TBOSS WHITE DECAL

17

2683222-070

ASM-SEAT BLK

18

5412067

BUMPER-RUBBER (.31) SHORT

19

7517312

Vis

20

5431787

COVER TOOLBOX

21

5435005

Guard, Rock

22

7556065

WASHER SKID PLATE

23

7512232

Vis

24

7558301

WASHER FLAT

25

7517386

Vis

26

7542122

NUT-NYLOK

27

5412156

Damper

28

7517987

SCR-1/4-20X1.68 TR/TX

29

1014293-067

Frame, Main

30

5434405-070

GUARD-MUDFLAP FOOTREST RH BLK

30

5434404-070

GUARD-MUDFLAP FOOTREST LH BLK

30

5432221-070

FOOTWELL LH BLK NYLON

30

5433219-070

FOOTWELL-NYLON RH BLK

31

5811111

FOIL

32

5811106

FOIL FRONT

33

5811087

FOIL (6X1)

34

7170007

Decal, Carb Information

35

7670057

NUT SPEED

36

5434408-070

Guard, Mud, Rear, LH

36

5431796-070

GUARD-MUD REAR LH BLK

36

5434409-070

Guard, Mud, Rear, RH

36

5431797-070

GUARD-MUD REAR RH BLK
