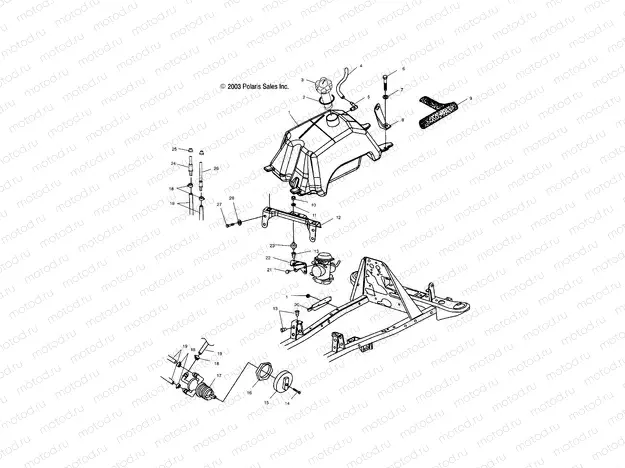

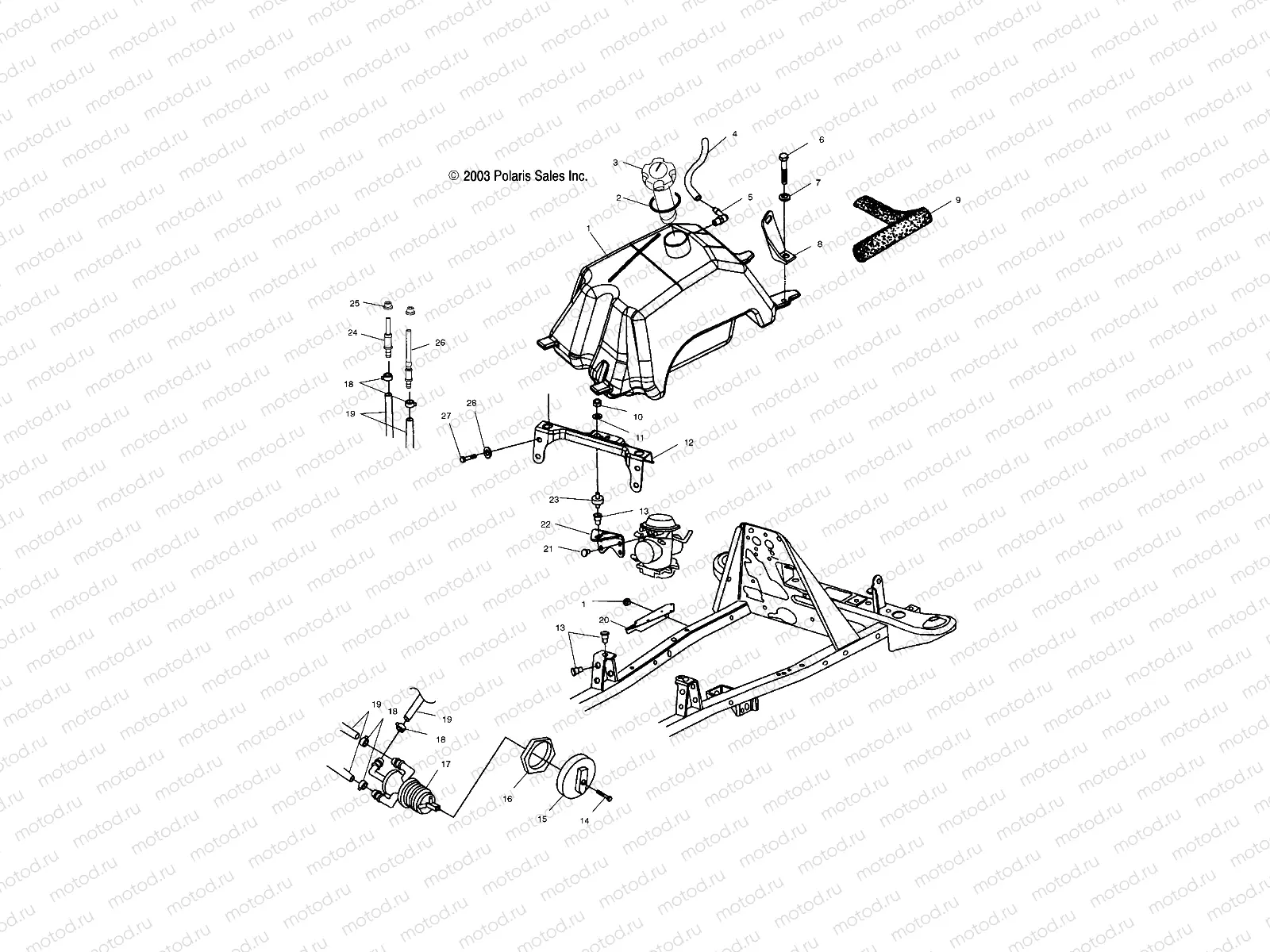

FUEL TANK and CARBURETOR MOUNTING - A04CB32AA/FC (4986188618A13) | FUEL TANK and CARBURETOR MOUNTING - A04CB32AA/FC (4986188618A13)

FUEL TANK and CARBURETOR MOUNTING - A04CB32AA/FC (4986188618A13) | FUEL TANK and CARBURETOR MOUNTING - A04CB32AA/FC (4986188618A13)
Например: 2520409
1
2520409
ASM-FUEL TANK
2
5812123
Gasket
3
2871442
CAP FUEL GAUGE LONG
4
8360009-600
LINE FUEL 1/8 ID 600 CM.
5
5431053
VENT TANK
6
7512277
Vis
7
7558301
WASHER FLAT
8
5222155
BRKT-FUEL COVER MNT RH PLTD
8
5222154
BRKT-FUEL COVER MNT LH PLTD
9
5811899
FOAM-SEAL,17"
10
7542105
NUT HEX
11
7552801
Rondelle (Lock)
12
5245671-067
Bracket, Carburetor Support
13
7547069
NUTSERT HEX
14
7517505
Vis
15
5432559
KNOB FUEL VALVE
16
5432733
NUT FUEL VALVE
17
7052161
VALVE 3-WAY
18
7080003
CLAMP HOSE
19
8450040-600
LINE FUEL 1/4 ID(600 CM.)
20
5245394-067
SHIELD-SPLASH LH BLK
21
3084205
ASM. SCREW & WASHER
22
5245674-067
MOUNT CARBURETOR BLK
23
3110050
MOUNT CARBURETOR
24
7052346
FITTING-FUEL OUTLET RES Z PRS
25
7052362
GROMMET-FLANGED .36X.56X1.06
26
7052350
Fitting, Fuel Outlet, Main
27
7512276
Vis
28
7555859
WASHER FLAT
