Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA CX 500 HONDA CX500C C CX500 1982 HONDA (VIN: CX500) REAR BRAKE PANEL

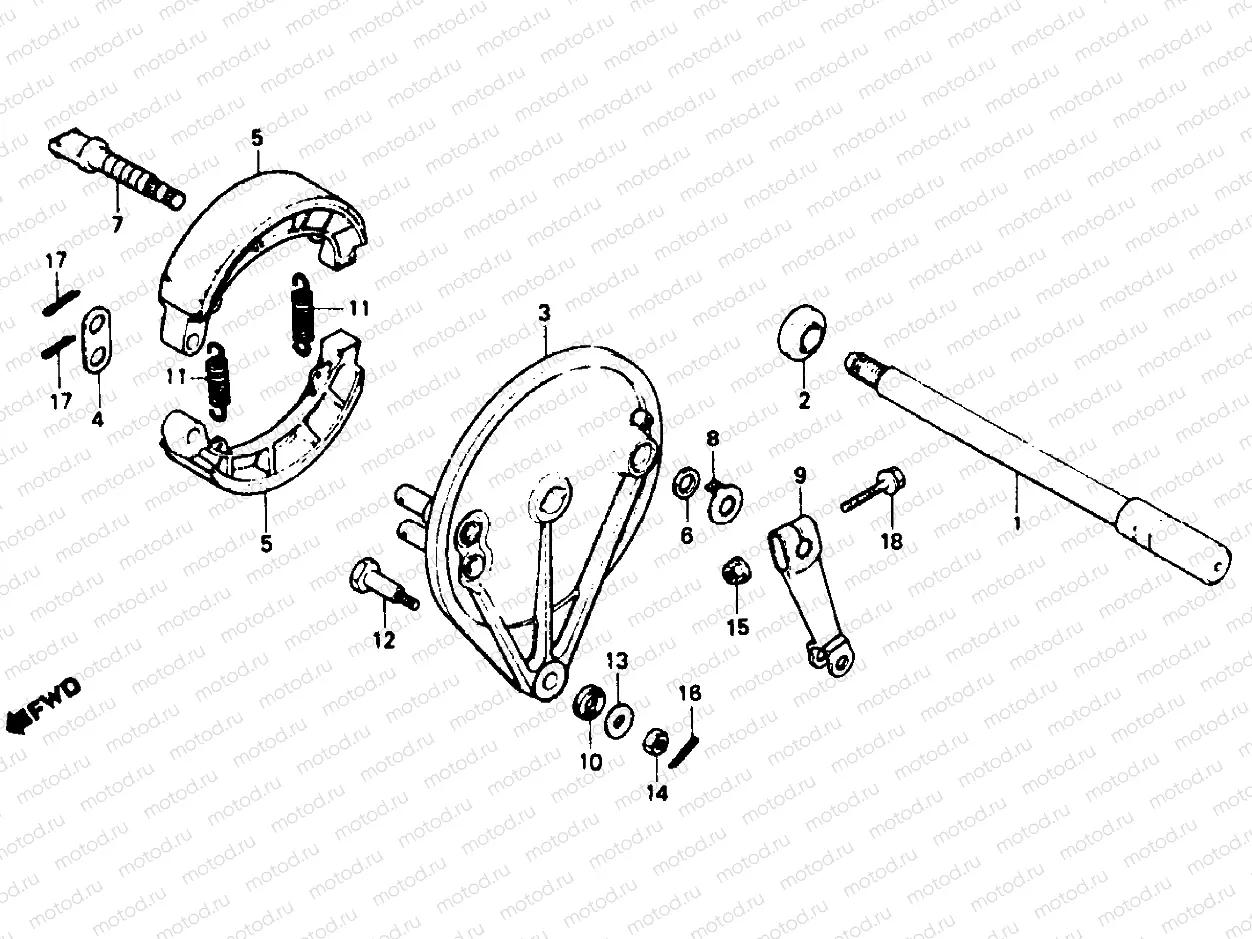

REAR BRAKE PANEL

REAR BRAKE PANEL
Например: 42301-449-840
1
42301-449-840
AXLERR.WHEEL ** NLA**
2
42311-415-000
COLLARPANEL SIDE ** NLA**
3
43100-415-010
PANEL COMP.RR.
4
43102-319-000
WASHER, ANCHOR PIN
346 ₽/шт
5
06430-MW3-671
Brake shoe
6 069 ₽/шт
6
43134-300-000
DUST SEAL, BRAKE CAM
259 ₽/шт
7
43141-415-000
CAM RR. BRAKE *** NLA***
8
43145-415-000
INDICATORBRAKE
9
43410-415-750
ARMRR.BRAKE** NLA**
10
43434-286-000
RUBBER, STOPPER ARM CUSHI
228 ₽/шт
11
45133-329-000
SPRING, FR. BRAKE SHOE
315 ₽/шт
12
90127-393-000
BOLT, RR. BRAKE STOPPER
409 ₽/шт
13
90524-030-000
Rondelle
189 ₽/шт
14
94001-080-000S
Гайка
47 ₽/шт
15
94050-08000
Nut
55 ₽/шт
16
94201-20180
PIN, SPLIT, 2.0X18
39 ₽/шт
17
94201-25200
PIN, SPLIT, 2.5X20
39 ₽/шт
18
95701-080-4000
Bolt, flange, 8x40
79 ₽/шт
