Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA CX 500 HONDA CX500C C CX500 1982 HONDA (VIN: CX500) FUEL TANK

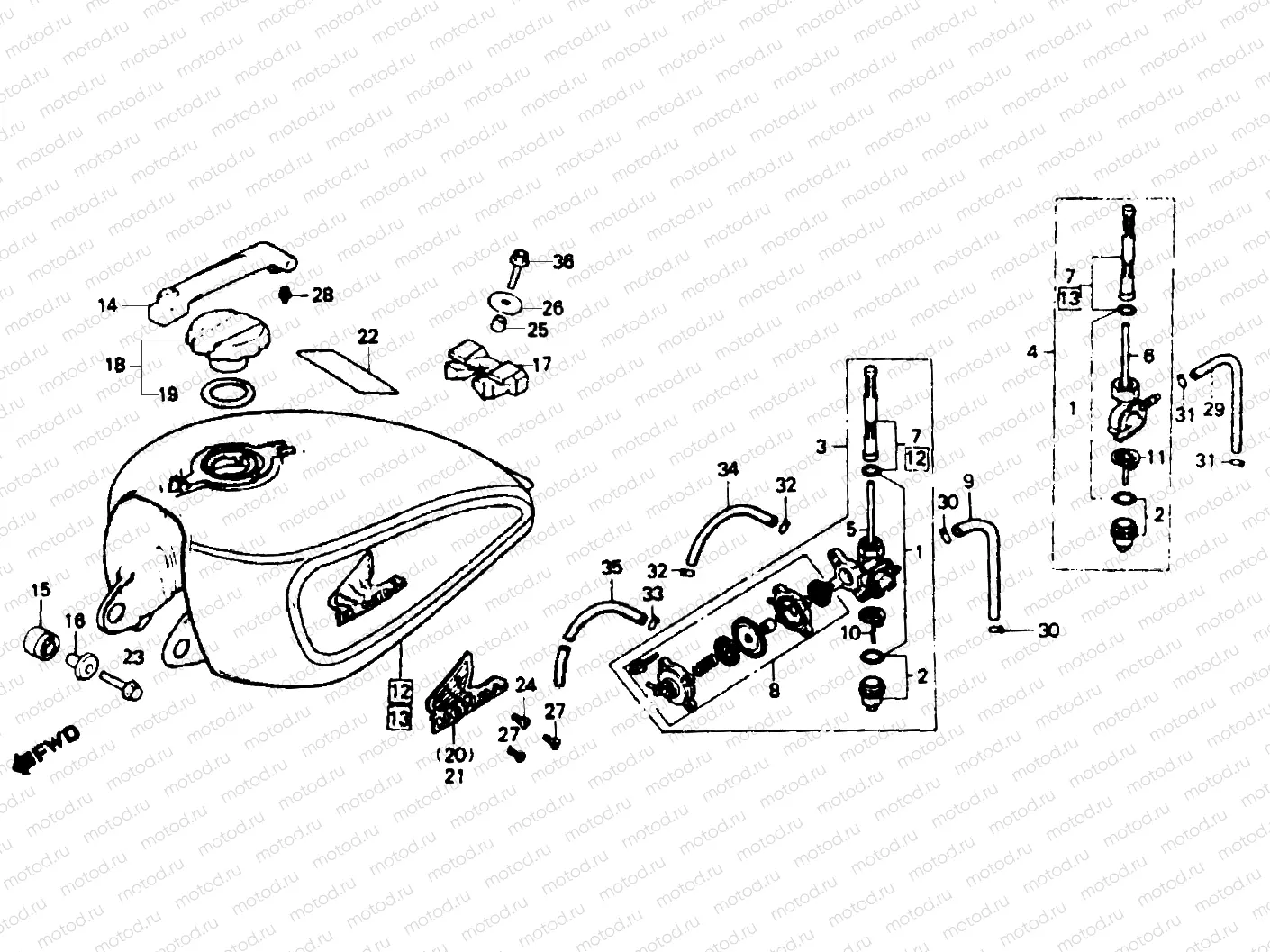

FUEL TANK

FUEL TANK

Например: 16080-471-831

1

16080-471-831

O-Ring

2

16081-471-831

CUP, FUEL STRAINER

2 471 ₽/шт

3

19650-449-841

(NO NAME) [Area CM]

4

16504-71831

(NO NAME) [Areas DE, E, ED, F, IT, ND, U, 1G, 2G]

5

16951-MA1-732

BODY COMP.COCK

6

16951-471-831

BODY COMP., COCK

7

16952-449-751

Filtre à carburant

4 017 ₽/шт

8

16953-ME5-025

COVER SET, COCK

3 902 ₽/шт

9

16956-449-750

TUBEFUEL HOSE

10

16959-461-751

CUP, FILTER

1 517 ₽/шт

11

16959-471-831

FILTER, CUP

1 242 ₽/шт

12

175A1-449-840ZB

(NO NAME) [Cosmos Black Metallic *B-100M-U* | Area CM]

12

175A1-449-840ZA

TANK SET*R-104C-U

13

175A1-449-860ZA

TANKFUEL R-107C-U

13

175A1-449-860ZB

TANK*PB-110C-U*

14

17530-443-305

LID SETFUEL TANK ** NLA**

15

17611-449-010

CUSHION, FUEL TANK FR.

503 ₽/шт

16

17612-144-9000

(NO NAME)

17

17613-449-010

CUSHION TANK RR *** NLA***

18

17620-469-000

CAP COMP FILLER

19

17632-176-772

PACKING,FUEL FILL

640 ₽/шт

20

87121-449-505

*** NLA***

21

87121-449-505

*** NLA***

22

87560-181-760ZB

Mark,drive*nh-1*

375 ₽/шт

22

87560-463-830ZB

MARKDRIVE*NH-0

23

90111-362-000

Vis

472 ₽/шт

24

90140-460-000

SCREW OVAL

25

90324-300-000

COLLAR,8M/M

432 ₽/шт

26

90534-011-000

Rondelle (8,3 mm)

204 ₽/шт

27

93700-030-060G

Screw,oval,3x6

41 ₽/шт

28

93892-040-0600

Screw-washer, 4x6

47 ₽/шт

29

95001-552-0040S

TUBE.FUEL 5.3X200

30

95002-02070

Collier

47 ₽/шт

31

95002-02100

Collier

55 ₽/шт

32

95002-02120

Collier

55 ₽/шт

33

95002-35000

CLIP, TUBE (C6.5)

39 ₽/шт

34

95005-352-4020

Tube,3.5x240

142 ₽/шт

35

95005-359-0030S

TUBE

36

95701-080-2808

ШАЙБА

79 ₽/шт
