Главная Каталог товаров Polaris EPC 1998 Polaris ATV Polaris 1998 SCRAMBER 500 (W98BC50A) Polaris 1998 ATV OIL PUMP - W98BC50A (4944994499d010) | OIL PUMP - W98BC50A (4944994499d010)

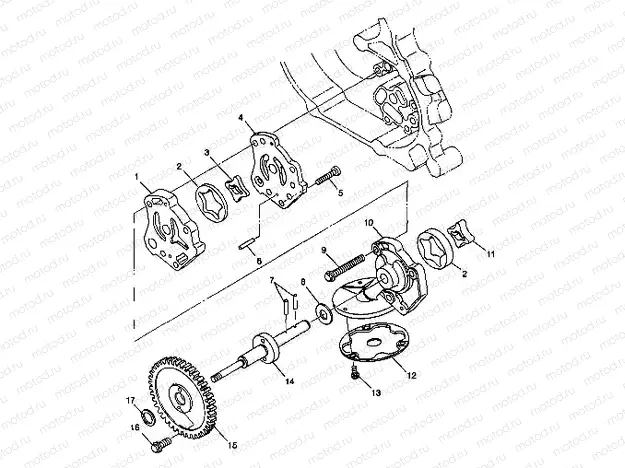

OIL PUMP - W98BC50A (4944994499d010) | OIL PUMP - W98BC50A (4944994499d010)

OIL PUMP - W98BC50A (4944994499d010) | OIL PUMP - W98BC50A (4944994499d010)

Например: 3084946

1

3084946

CASE #2 OILPUMP

2

3084949

ROTOR OUTER FEED

3

3084948

ROTOR INNER FEED

4

3090000

OIL PUMP CASE I

4

3090032

ASM-OIL PUMP

5

3085535

Vis

6

3084955

Dowel pin

7

3084954

Dowel pin

8

3084953

Rondelle

9

3084962

BOLT&WASHER ASM.

10

3087265

OIL PUMP CASE 3

11

3084950

ROTOR INNER SCAV.

12

3084956

STRAINER UNIT OIL

13

3084205

ASM. SCREW & WASHER

14

3085858

SHAFT PUMP

15

3087173

PUMP-GEAR 2

16

3085820

Vis

17

3084959

SPACER 0.8

17

3084961

SPACER 1.2

17

3084960

SPACER 1.0
