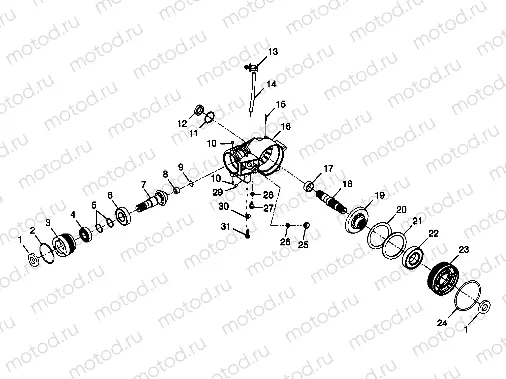

Главная Каталог товаров Polaris EPC 1998 Polaris ATV Polaris 1998 SCRAMBER 500 (W98BC50A) Polaris 1998 ATV FRONT HOUSING - W98BC50A (4944994499b003) | FRONT HOUSING - W98BC50A (4944994499b003)

FRONT HOUSING - W98BC50A (4944994499b003) | FRONT HOUSING - W98BC50A (4944994499b003)

FRONT HOUSING - W98BC50A (4944994499b003) | FRONT HOUSING - W98BC50A (4944994499b003)

Например: 1341323

0

1341323

GEARCASE FRONT ASM.

1

3233788

SEAL-TRIPLE LIP

2

3233315

O-Ring

3

3233316

COVER F.HSG INPUT

4

3233019

Roulement

5

3233306

RING RETAINING

6

3233020

Roulement

7

3233489

SHAFT,INPUT,FRONT HSG.

8

3233479

BEARING PLAIN

9

3233480

Rondelle

10

3233522

SCREW SET

11

3233320

RING,RETAINING

12

3233319

SEAL

13

7080409

CLAMP,WIRE ROUTING(10)

14

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

15

3233524

TUBE VENT

16

3233523

HOUSING FR.GEARCASE

17

3233326

BEARING NEEDLE

18

3233327

SHAFT,O/P,FR.HSG.

19

3233328

GEAR,31T,FRT.HSG.

20

3233346

WASHER THRUST

21

3233347

WASHER THRUST

22

3233329

BEARING,BALL

23

3233330

COVER FR.HSG OUTPUT

24

3233331

O-Ring

25

3233711

PLUG OIL FILL

26

3233324

Rondelle

27

3233777

PLUG-HEX FLANGE

28

3233254

WASHER PLUG

29

3233463

RIVET

30

7552603

Rondelle (Lock)

31

7512492
