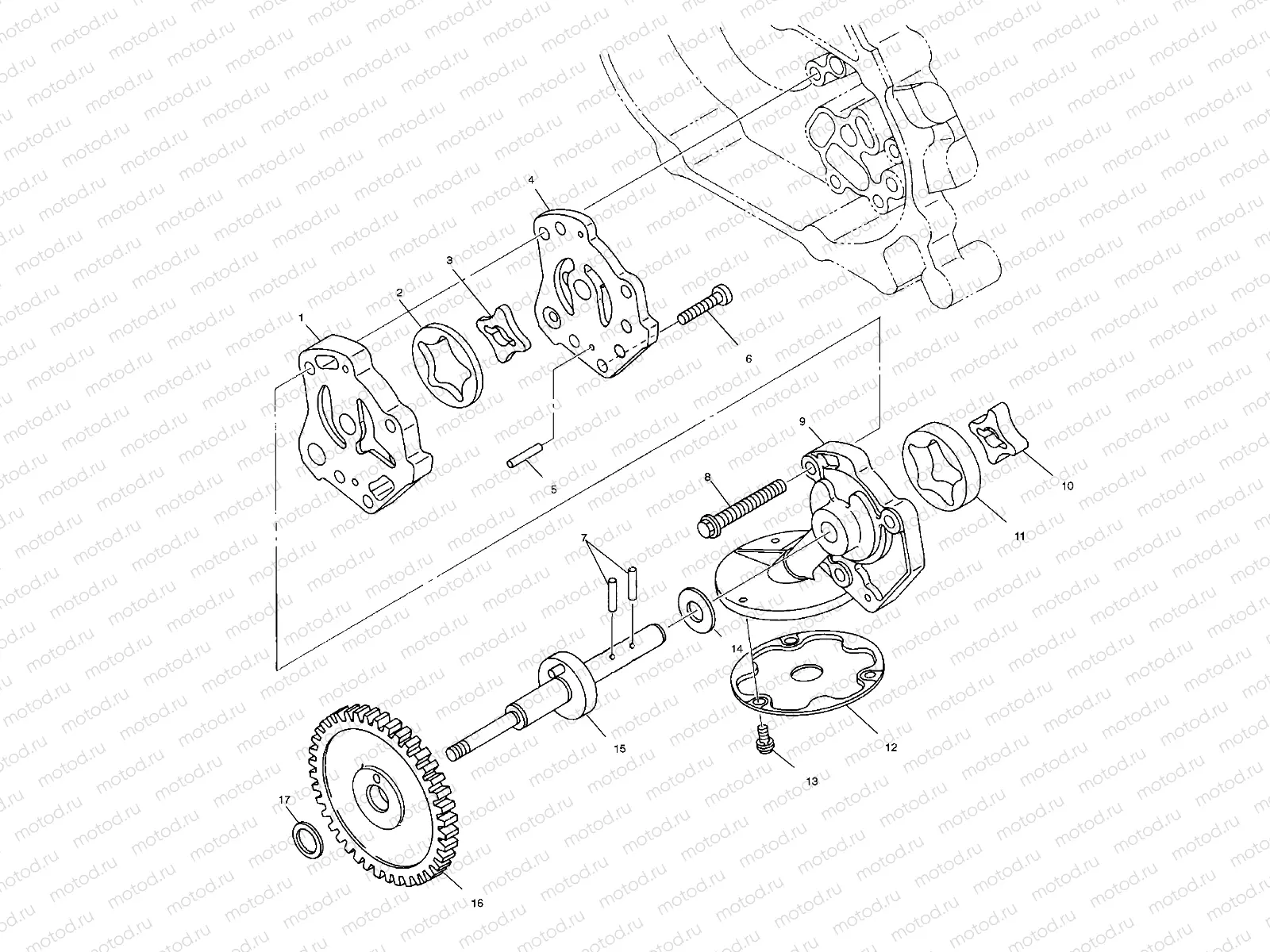

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 SPORTSMAN 400 (A01CH42AA) Polaris 2001 ATV OIL PUMP - A01CH42AA (4964436443D009) | OIL PUMP - A01CH42AA (4964436443D009)

OIL PUMP - A01CH42AA (4964436443D009) | OIL PUMP - A01CH42AA (4964436443D009)

OIL PUMP - A01CH42AA (4964436443D009) | OIL PUMP - A01CH42AA (4964436443D009)

Например: 3084946

1

3084946

CASE #2 OILPUMP

2

3084949

ROTOR OUTER FEED

3

3084948

ROTOR INNER FEED

4

3087276

OIL PUMP ASM

4

3090000

OIL PUMP CASE I

5

3084955

Dowel pin

6

3085535

Vis

7

3084954

Dowel pin

8

3084962

BOLT&WASHER ASM.

9

3087265

OIL PUMP CASE 3

10

3084950

ROTOR INNER SCAV.

11

3090307

ROTOR OUTER

12

3084956

STRAINER UNIT OIL

13

3084205

ASM. SCREW & WASHER

14

3084953

Rondelle

15

3084952

SHAFT PUMP

16

3084958

GEAR 2 PUMP

17

3084960

SPACER 1.0

17

3084959

SPACER 0.8

17

3084961

SPACER 1.2
