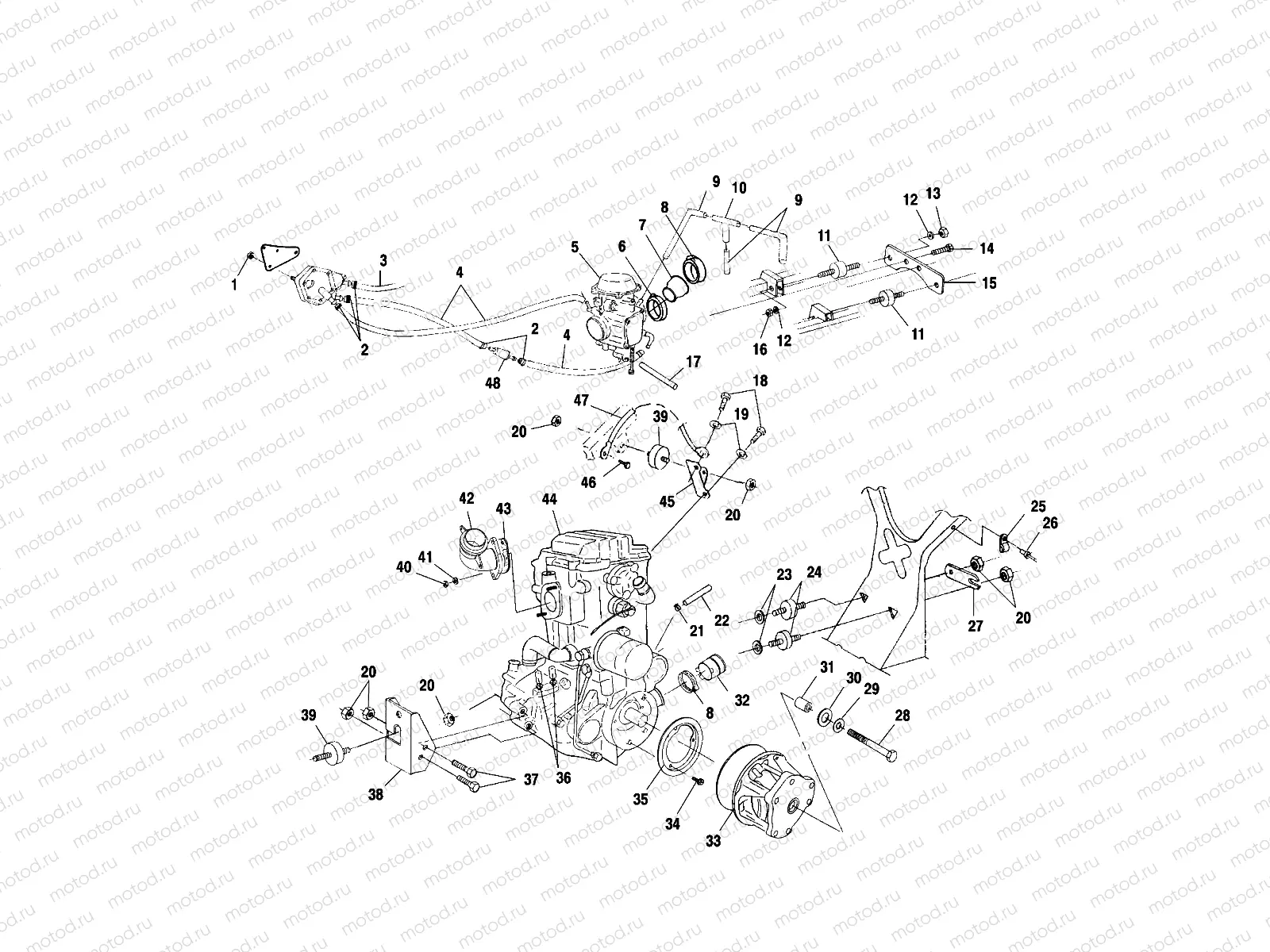

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 SPORTSMAN 400 (A01CH42AA) Polaris 2001 ATV ENGINE MOUNTING - A01CH42AA (4964436443A013) | ENGINE MOUNTING - A01CH42AA (4964436443A013)

ENGINE MOUNTING - A01CH42AA (4964436443A013) | ENGINE MOUNTING - A01CH42AA (4964436443A013)

ENGINE MOUNTING - A01CH42AA (4964436443A013) | ENGINE MOUNTING - A01CH42AA (4964436443A013)

Например: 7546601

1

7546601

NUT NYLOK

2

7080003

CLAMP HOSE

3

5811490

HOSE,(.25 IDX1.75"LG.)

4

8450040-600

LINE FUEL 1/4 ID(600 CM.)

6

7080413

CLAMP BAND NARROW

7

5410995

BOOT,CARB

8

7080511

CLAMP NARROW BAND

9

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

10

7052075

FITTING TEE

11

3110032

MOUNT RUBBER

12

7552605

Rondelle

13

7542105

NUT HEX

15

5211626-067

STRAP CARB.MT BLK.

16

7547069

NUTSERT HEX

17

8360009-600

LINE FUEL 1/8 ID 600 CM.

18

7512315

Vis

19

7552901

Rondelle (Lock)

20

7547108

Nut

21

7080694

CLAMP HOSE SPRING

23

7555815

WASHER FLAT

24

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

25

7080539

CLAMP NYLON CABLE

26

7621462

RIVET

27

5224658-067

STRAP FRAME SUPPORT BLK

28

7512566

Vis

29

7575202

Rondelle (Lock)

30

5210748

Rondelle

31

5430261

BUSHING

32

5410421

BOOT CLUTCH INTAKE

36

7080474

CLAMP HOSE

37

7515417

Vis

38

5241150-067

MOUNT,FR.ENGINE,BLK.

39

3024012

ISOLATOR-3/8-24M/M 60DURO

41

LR--

CALIPER, BRAKE, RH

42

1261688-489

WELD-MANIFOLD 1.625 BLK

44

3087023

ENGINE-EH42PLE05-SB (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

45

5241453

MOUNT-ENGINE TOP PLTD

46

7512232

Vis

47

4010132

CABLE GND-ENGINE

48

2530009

Filtre à carburant (IN-LINE)
