Главная Каталог товаров KTM EPC 2016 KTM Street KTM 2016 Travel KTM 2016 Street 1290 SUPER ADVENTURE WH ABS 16 (F9923PA) [FR] KTM MASK, FENDERS

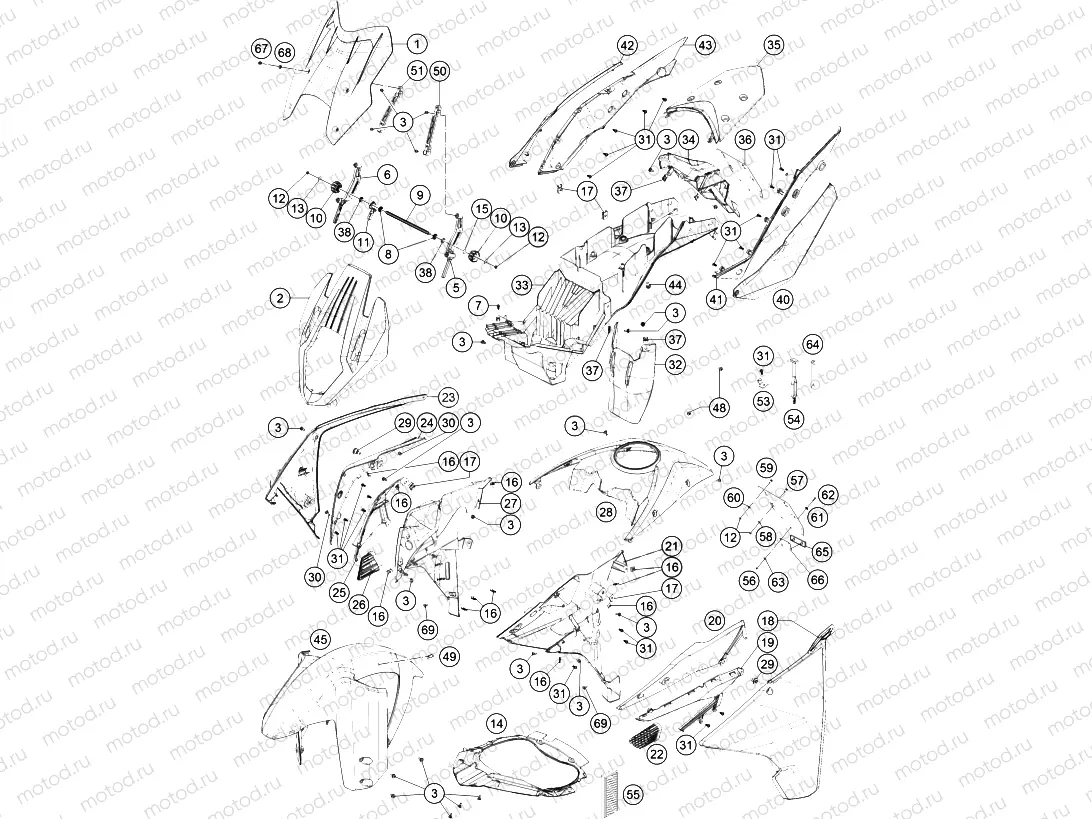

MASK, FENDERS

MASK, FENDERS

Например: 60408008044

1

60408008044

Wind shield EU cpl.

2

60408001000

HEADLIGHT MASK

3

69008021160

Vis (spec)

5

60408008050

WINDSHIELD BRACKET L/S

6

60408008051

WINDSHIELD BRACKET R/S

7

0081050181

SCREW FOR PLASTIC K50X18 T20

8

60408008155

GEAR 16TH ADJUSTMENT

9

60408008054

CONNECTIN SHAFT M6

10

60408008053

ADJUSTING WHEEL

11

60408008052

CLAMP LEVER RIGHT

12

0985060003

SELF LOCK. NUT DIN0985-M 6

13

0021060003

Rondelle

14

60308005000

COCKPIT COVER LOWER SIDE

15

60408008063

WAVO SPRING YRW-0062

16

69008021080

clip nut M5

17

54603048100

clip nut M6

18

60408050000AAA

Spoiler L/s

43 227 ₽/шт

19

60308002050KBA

ir Intake Left

10 909 ₽/шт

20

60308002000BGA

Mask Spoiler L/s

12 318 ₽/шт

21

60308025100

INNER LINING LEFT

22

60308021050

COVERING GRID AIR INTAKE L/S

23

60408051000AAA

Spoiler R/s

43 227 ₽/шт

24

60308003000BGA

Mask Spoiler R/s

12 318 ₽/шт

25

60308003050KBA

ir Inlet Right

10 909 ₽/шт

26

60308031050

COVERING GRID AIR INTAKE RIGHT

27

60308026100

INNER LINING RIGHT

28

60308030000AAA

Tank Cover

41 819 ₽/шт

29

60035001000

Vis (spec)

30

69008021060

Vis (spec)

31

0081050121

EJOT PT screw K50x12

32

60304050000

SPLASH PROTECTION

33

60308019200

HECK-UNTERTEIL

34

60308015000

NUMBER PLATE SUPPORT

35

6030801310033

Tail Fender Black

1 310 ₽/шт

36

60012081300

Licence fitting

37

54603048200

RANGE CHANGE METAL NUT M5

38

60408008057

WINDSHIELD HOLDER RUBBER

40

60308041000AAA

Tail Spoiler L/s Pearl W

29 466 ₽/шт

41

6030804300033

Rear Side Cover Left

3 005 ₽/шт

42

60308042000AAA

Tail Spoiler R/s Pearl W

29 466 ₽/шт

43

6030804400033

Rear Side Cover Right

3 005 ₽/шт

44

83008000015

Vis (spec)

45

60308110100AAA

Front Fender

30 672 ₽/шт

48

0025060126

Vis

49

58111076000

CABLE SUPPORT KHS NR.150-47610

50

60408008060

WINDSHIELD ADAPTER L/S

51

60408008061

WINDSHIELD ADAPTER R/S

53

60312062000

BRACKET FOR VEHICLE TOOLS

54

50303018000

RUBBER L=145MM

55

60012080100

SIDE REFLECTOR YELLOW "CEV"

56

0985050003

SELF LOCKING NUT DIN0985-M 5

57

0024060156

Vis

59

0024060206

Vis

60

0125060003

WASHER DIN0125-A 6,4

61

40006006000

WASHER 6MM

62

0966050163

OVAL HEAD SCREW DIN0966-M 5X16

63

0125050003

WASHER DIN0125-A 5,3

64

60011093075

RUBBER CABLE TIE 75MM 03

65

58412080400

Rear reflector red (red)

66

58412080050

BRACKET FOR REFLECTOR

67

60708008071

Vis (spec)

68

60708008070

rubber bush windshield fixation

69

69007125050

SCREW M5X14 ISA30 ALU
