Главная Каталог товаров KTM EPC 2016 KTM Street KTM 2016 Travel KTM 2016 Street 1290 SUPER ADVENTURE WH ABS 16 (F9923PA) [FR] KTM FRAME

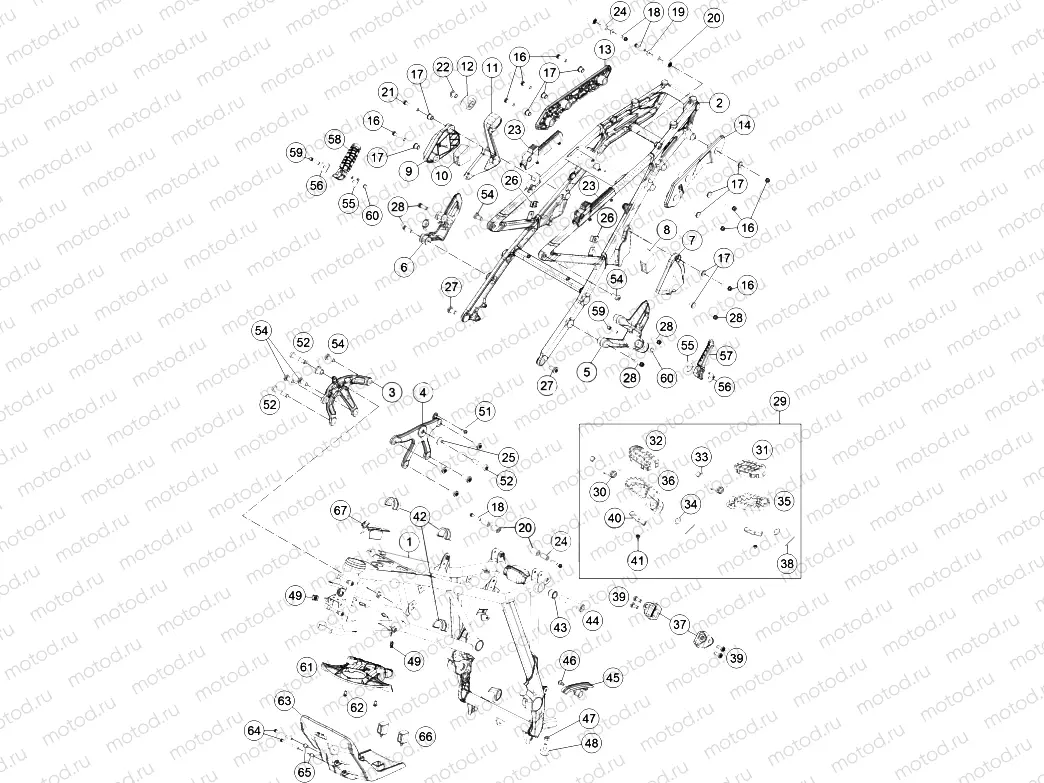

FRAME

FRAME

Например: 60403001000KB

1

60403001000KB

Frame 604 Oa

248 351 ₽/шт

2

6030300200033

Sub Frame

121 765 ₽/шт

3

6030300600033S

Engine Support R/s Black

11 122 ₽/шт

4

6030300500033S

Engine Supportl/s Black

11 122 ₽/шт

5

6030304800033S

Footr. Sup. Rear L/s Black

13 681 ₽/шт

6

6030304900033S

Footr. Sup. Rear R/s Black

13 077 ₽/шт

7

60312010050

SUITCASE HOOK L/S

8

60312010060

DAMPING RUBBER SUITCASE HOOK

9

60312011050

SUITCASE HOOK R/S

10

60312011060

DAMPING RUBBER SUITCASE HOOK

11

6030508400033S

Exhaust Bracket

11 282 ₽/шт

12

61305068000

DAMPING RUBBER

13

60312021250

CASE BAR R/S

14

60312020250

CASE BAR L/S

16

0025080306

Vis

17

60303002058

SPACER BUSHING 13X17X8,2

18

0025060356

Vis

19

0021060003

Rondelle

20

60307048000

RUBBER SEAT-CONTACT SURFACE

21

0025080506

Vis

22

60305069100

Bushing

23

60307040041

PLATE RUBBER SEAT

24

60307049000

BUSH 6.2X12X21.5

25

60303007000

SPACER BUSH ENGINE SUPPORT

26

54603048100

clip nut M6

27

0035100209

AH-COLLAR SCREW M10X20 ISA45

28

76009062000

Vis (spec)

29

60003040133

FOOTPEG LS+RS CPL.

30

54603041000

FOOTREST SPRING L/S & R/S

31

60003040010

FOOTREST RUBBER FRONT L/S 03

32

60003041010

FOOTREST RUBBER FRONT R/S 03

33

54803044000

PIN FOR FOOT PED 51.5X9.8 MM

34

0125100003

washer DIN 125 A 10.5

35

78003040050

FOOTREST L/S 08

36

78003041050

FOOTREST R/S 08

37

6030310109533S

Footrest Mounting

3 259 ₽/шт

38

0094032253

PIN DIN0094-3,2X25 STEEL

39

0025080166S

Vis

40

60003044010

CLOSING PANEL FRONT L/S R/S 03

41

0985050003

SELF LOCKING NUT DIN0985-M 5

42

61007014000

SPACER FUEL TANK 05

43

60004030151

BUSHING MONOSHOCK SOCKET 05

44

60004017000

SCREW M14X1,5 L=73MM 03

45

60303070000

CHAIN GUIDE

46

0024060156

Vis

47

0934080003

Nut

48

58303070100

BUMP RUBBER M8X25MM

49

54603048200

RANGE CHANGE METAL NUT M5

51

69008021160

Vis (spec)

52

0035100509S

AH-COLLAR SCREW M10X50 ISA45

54

0035100249

SHCS M10x24 TX45

55

60003152000

ENGAGE PANEL FOOTREST L/S 03

56

60003052000

ENGAGE PANEL FOOTREST R/S 03

57

60003050000

FOOTREST CPL. L/S REAR 03

58

60003051000

FOOTREST CPL. R/S REAR 03

59

60003044100

footrest bolt, rear

60

0799060003

retaining washer DIN 6799 - 6

61

60308024200

TRIPLECLAMP-FACEPLATE BELOW

62

83008000015

Vis (spec)

63

6030319000030

Skid Plate Adv

7 816 ₽/шт

64

0025060406

Vis

65

45239060050

COLLAR BUSHING 6,3X8X13X9,5

66

60003096000

VIBRATION DAMPER 03

67

60303003010

STEARING HEAD COVER
