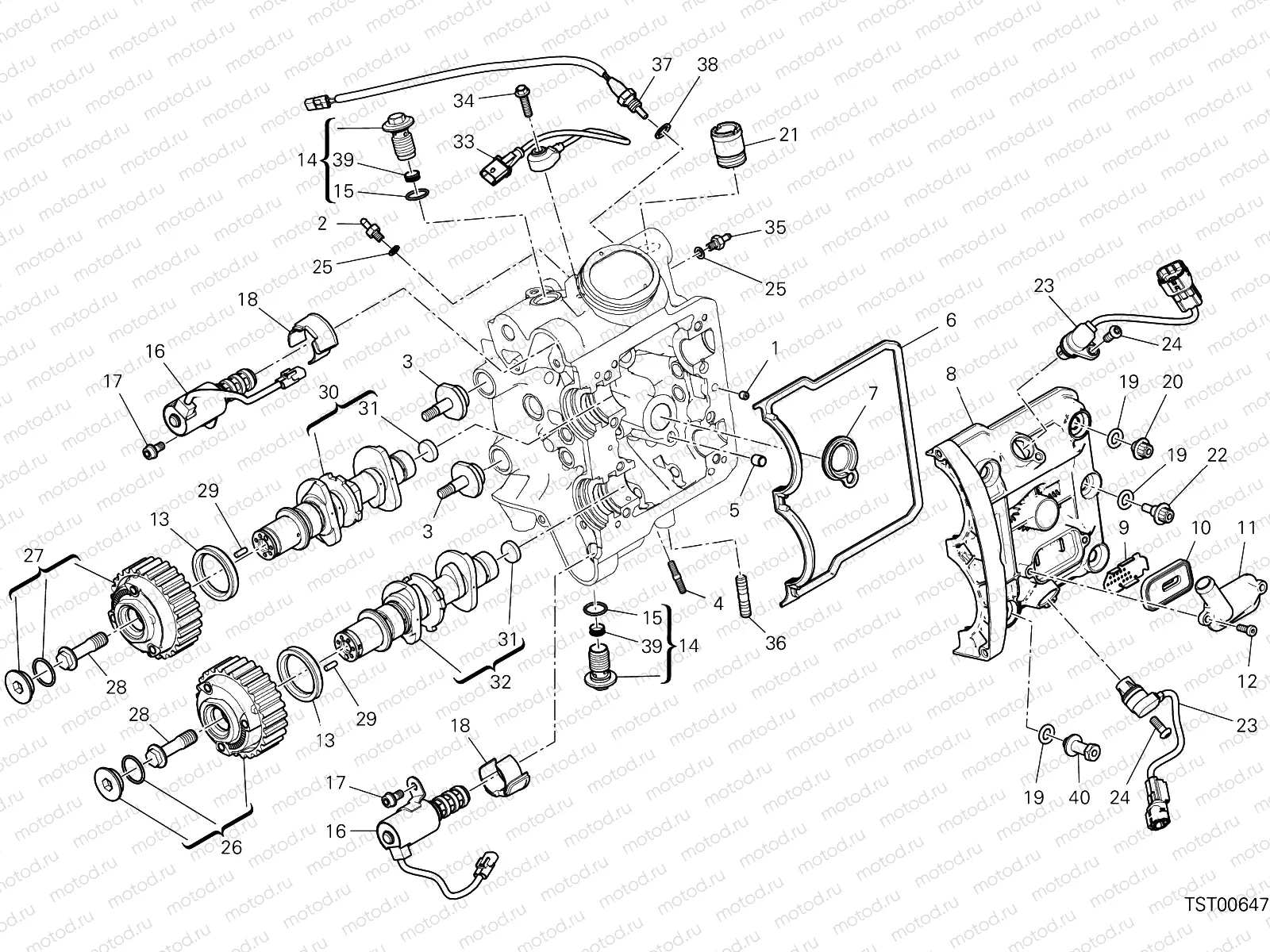

HORIZONTAL HEAD – TIMING SYSTEM [MOD:DVL1260]

HORIZONTAL HEAD – TIMING SYSTEM [MOD:DVL1260]
Например: 86010061A
1
86010061A
PIN
1 шт. в узле
2
81413341A
UNION
1 шт. в узле
3
45110462A
MOBILE TENSIONER PIN
2 шт. в узле
4
76640191A
pc - Stud bolt
3 шт. в узле
5
71113742A
.BUSH
1 шт. в узле
6
78811331B
Joint de couvercle de soupape
1 шт. в узле
7
78811341B
Joint de couvercle de soupape
1 шт. в узле
8
24714801FJ
COVER CYLINDER HEAD, HORIZONTAL
1 шт. в узле
9
82716351A
PLATE
1 шт. в узле
10
81140012B
VALVE
1 шт. в узле
11
24714161A
Couvrir
1 шт. в узле
12
77350403B
10 pc - Vis
2 шт. в узле
13
93042181A
OIL SEAL
2 шт. в узле
14
87321421B
.PLUG
2 шт. в узле
15
88640851A
O-Ring
2 шт. в узле
16
45040023A
VALVE
2 шт. в узле
17
77140648CA
Vis
2 шт. в узле
18
24511481A
INSERT
2 шт. в узле
19
88642621A
O-Ring
6 шт. в узле
20
7791C021A
Nut (Special)
2 шт. в узле
21
66810501B
NIPPLE, HOSE
1 шт. в узле
22
77919061B
Vis (spec)
2 шт. в узле
23
55243341A
DETECTOR
2 шт. в узле
24
77550218CJ
Vis
2 шт. в узле
25
85250231A
Rondelle
2 шт. в узле
26
17740061A
TIMING BELT PULLEY, DRIVEN
1 шт. в узле
27
17740051A
TIMING BELT PULLEY, DRIVEN
1 шт. в узле
28
77918271A
Vis (spec)
2 шт. в узле
29
86050131A
PIN
2 шт. в узле
30
14825011E
HORIZONTAL INTAKE CAMSHAFT
1 шт. в узле
31
87310051A
.PLUG 18 MM
1 шт. в узле
32
14825021E
HORIZONTAL EXHAUST CAMSHAFT
1 шт. в узле
33
55243181A
DETECTOR
1 шт. в узле
34
77244661A
Vis
1 шт. в узле
35
81411113B
NIPPLE, HOSE
1 шт. в узле
36
76640331A
Stud bolt
37
55242671A
SENSOR, TEMPERATURE
38
85250421A
Rondelle
39
42750061A
FILTER, OIL NUT, SPECIAL
40
77919241C
Nut (Special)
