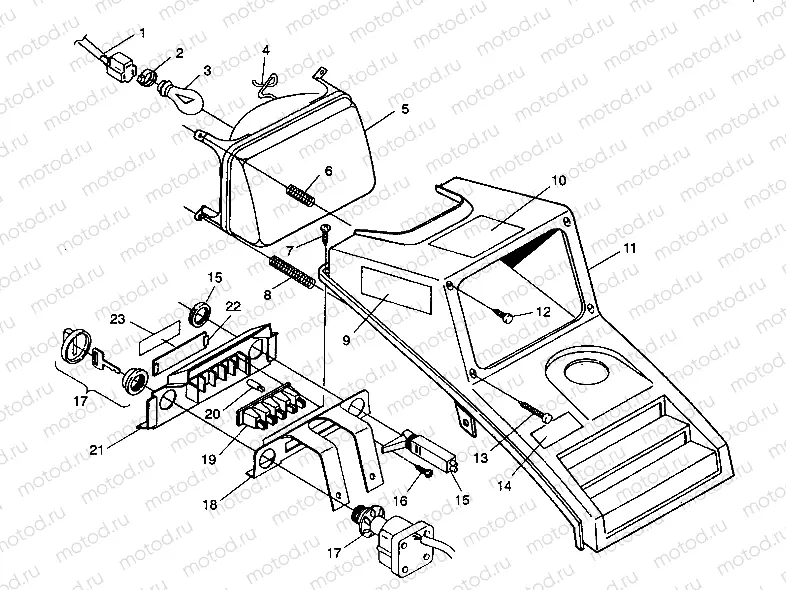

Главная Каталог товаров Polaris EPC 1993 Polaris ATV Polaris 1993 TRAIL BLAZER (W937221) Polaris 1993 ATV HEADLIGHT ASSEMBLY Trail Blazer W937221 (4924082408008A) | HEADLIGHT ASSEMBLY Trail Blazer W937221 (4924082408008A)

HEADLIGHT ASSEMBLY Trail Blazer W937221 (4924082408008A) | HEADLIGHT ASSEMBLY Trail Blazer W937221 (4924082408008A)

HEADLIGHT ASSEMBLY Trail Blazer W937221 (4924082408008A) | HEADLIGHT ASSEMBLY Trail Blazer W937221 (4924082408008A)

Например: 2460404

1

2460404

HARNESS, MAIN WIRE,

2

4032066

COVER,SOCKET,H/L.

3

4030028

BULB H/L

4

4032063

RETAINER H/L BULB

5

4032065

HEADLIGHT ASM., INCANDESCENT W/BULB SEAL

6

4032002

SPRING-ADJ

7

7512017

Vis

8

4032041

SPRING ADJ.

9

7073780

DECAL,'250'TR.BLAZER

10

7073464

DECAL, CERTIFICATION

11

5430973-179

COVER OILTANK/HD.LAMP

12

7518157

SCR-M5X.8X50MM

13

4032042

SCREW ADJUST (ATV)

14

7073024

LABEL, 'U.S.A.'

15

2200188

KIT-CHOKE CONTROL

15

7080371

CABLE CHOKE

16

7511862

Vis

17

4110139

SWITCH,IGNITION,A.D. (See Footnote Below)

18

5220965-067

BRKT, IGN. PANEL

19

4032037

STRIP, SOCKET

20

4080872

BULB

21

5430995

PANEL, IGNITION

22

2652067

LENS ASM.,DASH

23

7072904

DECAL,PANEL,BLACK [No Longer Available]
