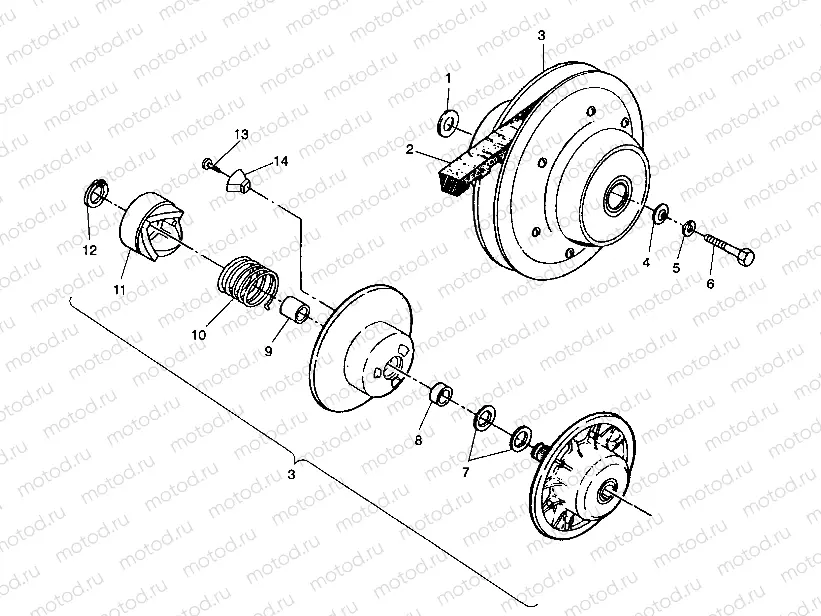

Главная Каталог товаров Polaris EPC 1993 Polaris ATV Polaris 1993 TRAIL BLAZER (W937221) Polaris 1993 ATV DRIVEN CLUTCH ASSEMBLY Trail Blazer W937221 (4924082408020A) | DRIVEN CLUTCH ASSEMBLY Trail Blazer W937221 (4924082408020A)

DRIVEN CLUTCH ASSEMBLY Trail Blazer W937221 (4924082408020A) | DRIVEN CLUTCH ASSEMBLY Trail Blazer W937221 (4924082408020A)

DRIVEN CLUTCH ASSEMBLY Trail Blazer W937221 (4924082408020A) | DRIVEN CLUTCH ASSEMBLY Trail Blazer W937221 (4924082408020A)

Например: 7556401

1

7556401

BUSHING

2

3211113

Courroie

3

1322180

ASM. CLUTCH DRIVEN HVY RET

4

5220646

WASHER DOMED

5

7552901

Rondelle (Lock)

6

7515327

Vis

7

7556804

WSHR-1.505X2.00X.030-Y

8

3576504

BUSHING MOVEABLE 1/2 INCH

9

3576511

BUSHING MOVEABLE 1 INCH

10

7041198

SPRING CLUTCH (RED)

11

5130738

RAMP, STATIONARY

12

7714401

RETAINING RING

13

7511854

Vis

14

5450873

BUTTON (3)
