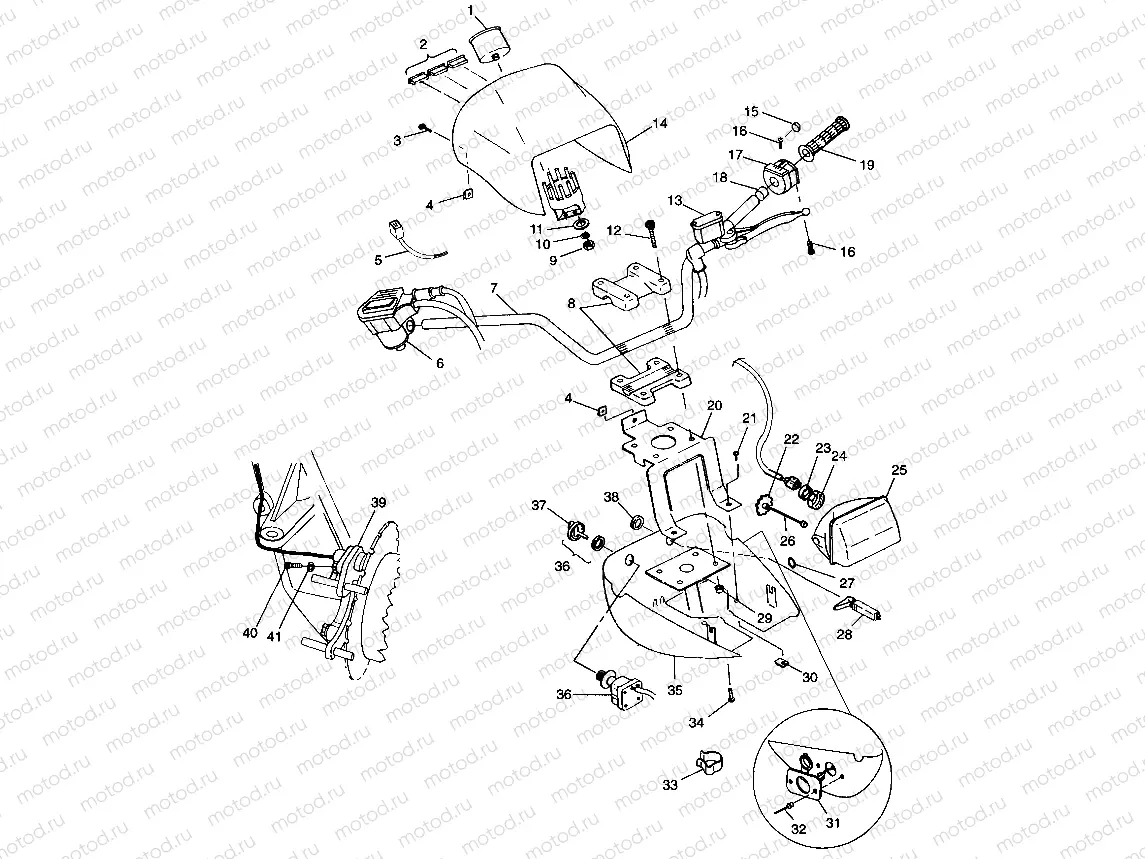

Главная Каталог товаров Polaris EPC 1999 Polaris ATV Polaris 1999 SPORTSMAN 500 RSE (A99CH50AC) Polaris 1999 ATV HANDLEBAR and HEADLIGHT POD - A99CH50AC (4952455245b013) | HANDLEBAR and HEADLIGHT POD - A99CH50AC (4952455245b013)

HANDLEBAR and HEADLIGHT POD - A99CH50AC (4952455245b013) | HANDLEBAR and HEADLIGHT POD - A99CH50AC (4952455245b013)

HANDLEBAR and HEADLIGHT POD - A99CH50AC (4952455245b013) | HANDLEBAR and HEADLIGHT POD - A99CH50AC (4952455245b013)

Например: 3280363

1

3280363

SPEEDOMETER 3.38 6-PULSE

2

4040053

INDICHOT TEMPERATURE

2

5430967

PLUG INDIC.HOLE

2

4040054

INDICNEUT./REV.

3

7511881

Vis

4

7670086

NUT

5

2460668

HARNESS,CTR.PNL.

6

LR--

CALIPER, BRAKE, RH

7

5242987-067

TUBE-HANDLEBAR BLK

8

2202395

KIT-HANDLE BAR BLOCK

8

5630616-067

BLOCK,H'BAR RETAINER,BLK

9

7541933

Nut

10

7555868

Rondelle (Lock)

11

7558212

WASHER 13/64X1/2X18GA FL-Y (10

12

7515189

Vis

14

5433289-283

HEADLIGHT POD,UPPER,M.O. CAMO Substituted by 5433289-283A

15

5432952

PLUG HOLE

16

7517625

SCREW SET

17

4010262

SWITCH-HANDLEBAR H/L/O REV/OR

18

5432926

SPACER,SWITCH,LH

19

5433834-070

GRIP-HNDLBAR 7/8 ID BLACK

20

5244969-329

BRKT-POD MOUNTING E-COAT

21

7517317

Vis

22

4032079

KNOB ADJUSTING

23

5411120

BOOT HEADLIGHT

24

4032077

COLLAR LOCK

25

2870448

BULB QUARTZ.H/L H4 60/55W

25

4032075

ASM HEADLIGHT W/ADJUST ROD-KNO

26

4032078

ROD ADJUSTING

27

5410163

O RING

28

2200188

KIT-CHOKE CONTROL

28

7080726

CABLE CHOKE W/ADJUSTER

29

7542122

NUT-NYLOK

30

7670089

NUT U-TYPE

31

2410025

POWERPLUG ASM,12V

32

7621334

RIVET

33

7080631

CLIP CABLE RETAIN

34

7522021

Vis

35

5433366-070

POD HEADLIGHT LOWER BLK

36

4110209

SWITCH IGN.W/ CON

36

5433733

NUT IGNITION SWITCH

37

5433534

KEY COVER-KEYSWITCH

38

7080229

Nut

39

2201625

KIT SPEEDO SENSOR LG

40

7515181

SCREW(10)

41

7558203

Rondelle
