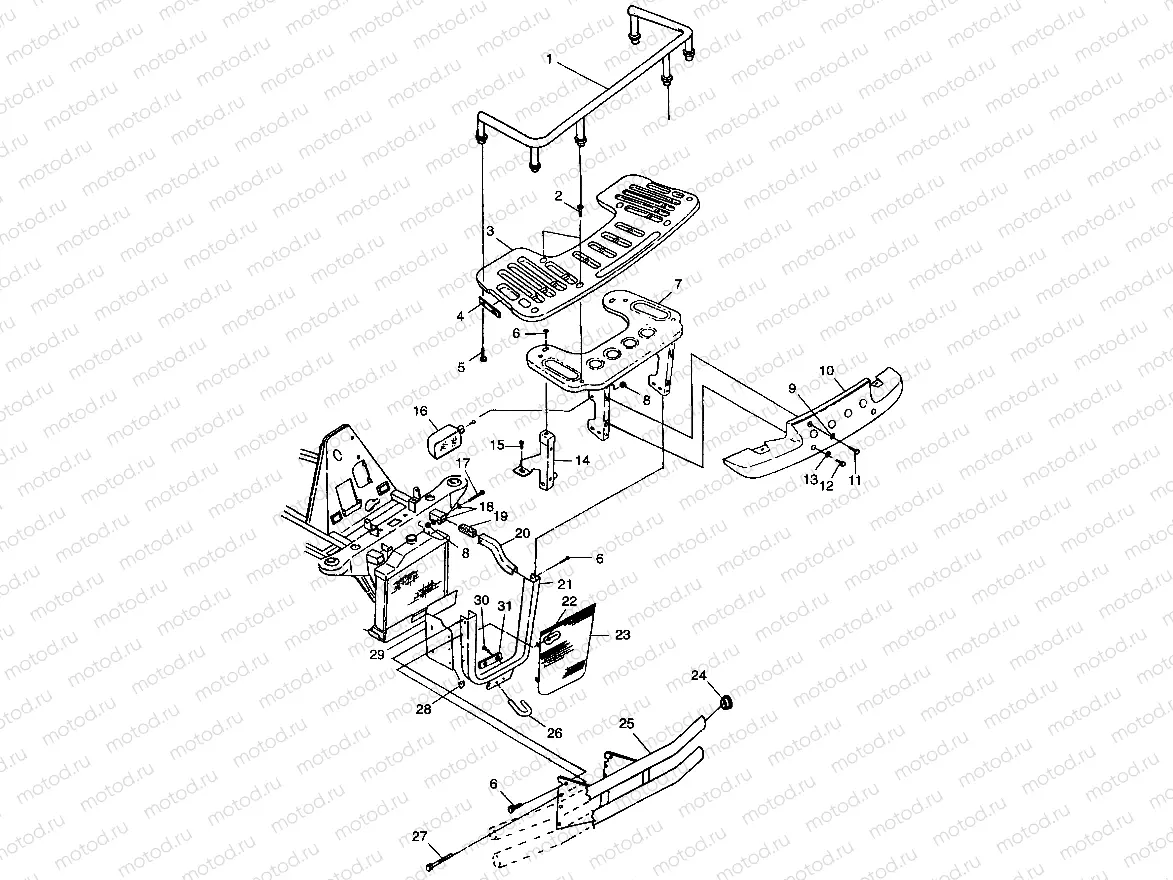

Главная Каталог товаров Polaris EPC 1999 Polaris ATV Polaris 1999 SPORTSMAN 500 RSE (A99CH50AC) Polaris 1999 ATV FRONT RACK and BUMPER MOUNTING - A99CH50AC (4952455245a009) | FRONT RACK and BUMPER MOUNTING - A99CH50AC (4952455245a009)

FRONT RACK and BUMPER MOUNTING - A99CH50AC (4952455245a009) | FRONT RACK and BUMPER MOUNTING - A99CH50AC (4952455245a009)

FRONT RACK and BUMPER MOUNTING - A99CH50AC (4952455245a009) | FRONT RACK and BUMPER MOUNTING - A99CH50AC (4952455245a009)

Например: 1040526-067

1

1040526-067

RACK EXT,FR,LOW,BLK Substituted by 2871499

2

7517685

Vis

3

2670180-070

RACK FRONT BLK

4

2670071

REFLECTOR AMBER

5

7517208

Vis

6

7515399

Vis

7

1014023-067

SUPPORT FRONT RACK BLK

8

7542324

Nut (SELF-LOCKING)

9

7558403

WASHER WROUGHT

10

5432155-070

BUMPER BLK

11

7515391

Vis

12

7515390

Vis

13

7555954

Rondelle

14

1013210-067

SUPPORT FRT.RACK LH BLK

14

1013211-067

SUPPORT FRT. RACK RH BLK

15

7512232

Vis

16

2431014

ASM. HEADLIGHT SIDE MOUNT LH

16

4030061

BULB H/L 30/30 W.

16

2431015

ASM. HEADLIGHT SIDE MOUNT RH

17

7515384

Vis

18

7558402

WASHER FLAT

19

5810467

PLUG FRAME

20

5241398-067

EXTENSION,LH.FRAME,BLK.

20

5241399-067

EXTENSION RH.FRAME BLK.

21

1013772-067

WELD-BRUSH GUARD BLK

22

7621330

RIVET POP

23

5240591-067

GRILL BRUSHGUARD BLK.

24

5433305

CAP-BUMPER END

25

5243377-067

BUMPER-FRONT RSE BLK

26

5241224-067

HITCH,U-BOLT,BLK.

27

7512097

Vis

28

7670094

Nut

29

5431815

SHIELD,RH RADIATOR

29

5431814

SHIELD,LH RADIATOR

30

7515547

Vis

31

5211633-067

PLATE,BACK MT,BLK.
