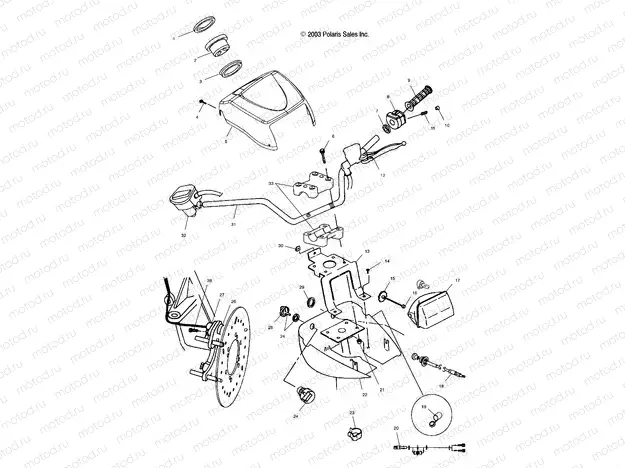

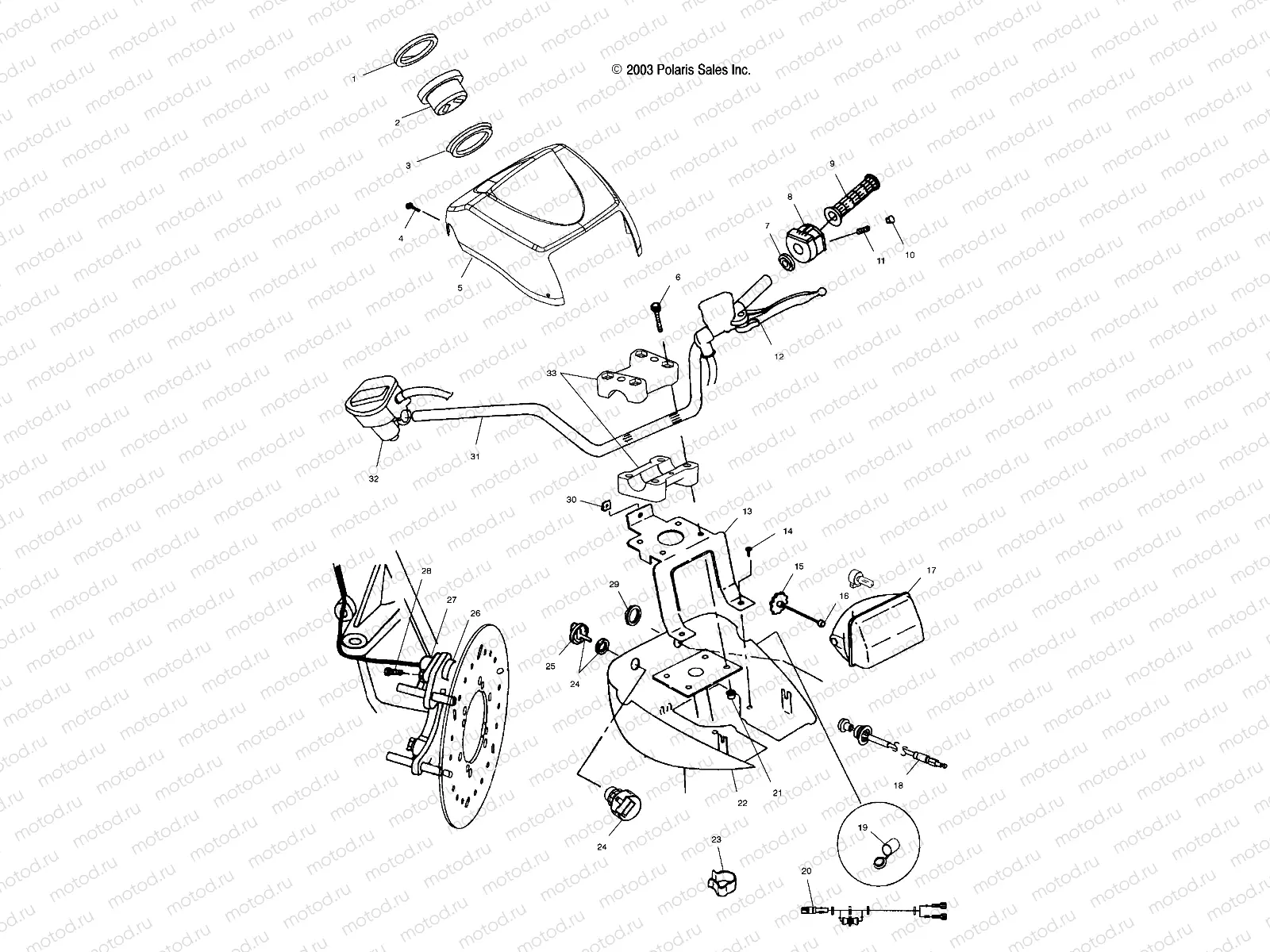

HANDLEBAR and HEADLIGHT POD - A04CH68AK/AL/AN/AO (4987438743C01) | HANDLEBAR and HEADLIGHT POD - A04CH68AK/AL/AN/AO (4987438743C01)

HANDLEBAR and HEADLIGHT POD - A04CH68AK/AL/AN/AO (4987438743C01) | HANDLEBAR and HEADLIGHT POD - A04CH68AK/AL/AN/AO (4987438743C01)

Например: 5437258

1

5437258

BEZEL-REPLACEMENT ATV CLUSTER

2

3280431

ASM-CLUSTER 110MM W/FUEL

3

5412138

MOUNT-RUBBER INSTR. CLUSTER

4

7511881

Vis

5

5434706-053

POD-HDLT UPPR SNAP GENVI M YLW

5

5435239-455

Pod, Headlight, Upper [AC]

5

5434706-400

POD-HDLT UPPR SNAP GENVI CGRNM

5

5434706-341

POD-HDLT UPPR SNAP SONIC BLUE

6

7517238

Vis

7

5433903

SPACER-SWITCH LH 99

8

4019044

CONTROL-LH HI/LO/OFF

9

5433834-070

GRIP-HNDLBAR 7/8 ID BLACK

10

5432952

PLUG HOLE

11

7517625

SCREW SET

13

5244969-329

BRKT-POD MOUNTING E-COAT

14

7517317

Vis

15

4032079

KNOB ADJUSTING

16

4032078

ROD ADJUSTING

17

2204143

KIT-HARNESS HEADLIGHT

17

4010253

BULB-HEADLIGHT 50 WATT

17

2410268

HEADLAMP ASM. 50 WATT

18

7081008

CABLE-CHOKE FRICTION 40

18

7081008

CABLE-CHOKE FRICTION 40

19

4010638

RECEPTACLE-POD MNT 12 VOLT

20

2461045

Harness, Light, Pod/Accy.

21

7542122

NUT-NYLOK

22

5433762-382

POD-HEADLIGHT LOWER SNAP SLV

22

5433762-177

POD-HEADLIGHT LOWER SNAP BLKMT

22

5433762-070

POD-HEADLIGHT LOWER SNAP BLK

23

7080631

CLIP CABLE RETAIN

24

4010321

Clé Vierge

24

4012165

SWITCH-KEY 3 POS MT SLV

24

4010278

Clé Vierge

25

5433534

KEY COVER-KEYSWITCH

26

5132382

CAP-HALL SENSOR

27

4010298

SENSOR HALL EFFECT

28

7517658

Vis

29

7080922

NUT CHOKE M24X1.5 THD M29 HEX

30

7670127

CLIP-SCREW #8/10 .03-.10 PANEL

31

5242987-067

TUBE-HANDLEBAR BLK

32

LR--

CALIPER, BRAKE, RH

33

5631146

Block Handlebar Pegged

33

5631972

BLOCK-HANDLEBAR PEG 89 ID

33

5631973

BLOCK-HANDLEBAR .89 ID

33

5631147

Block Handlebar
