Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO Polaris 2004 ATV ELECTRICAL/TAILLIGHT - A04CH68AK/AL/AN/AO (4987438743C09) | ELECTRICAL/TAILLIGHT - A04CH68AK/AL/AN/AO (4987438743C09)

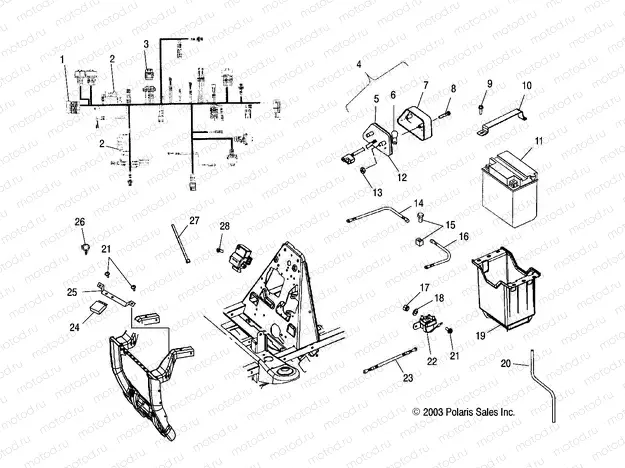

ELECTRICAL/TAILLIGHT - A04CH68AK/AL/AN/AO (4987438743C09) | ELECTRICAL/TAILLIGHT - A04CH68AK/AL/AN/AO (4987438743C09)

ELECTRICAL/TAILLIGHT - A04CH68AK/AL/AN/AO (4987438743C09) | ELECTRICAL/TAILLIGHT - A04CH68AK/AL/AN/AO (4987438743C09)

Например: 2461208

1

2461208

Harness, Main [If built before 4/01/04]

1

2202607

KIT-FUSIBLE LINK 0.8 MM

2

2410323

BREAKER-CIRCUT 20 AMP

3

2204890

KIT-HARNESS RESISTOR MODULE

4

2410320

ASM-TAILLIGHT 12V SERIES FIL

5

4032045

Gasket

6

4030043

BULB

7

4032046

Taillight lens

8

4032029

Vis

9

7517386

Vis

10

5247376

STRAP-BATTERY HOLD DOWN 30 AMP

11

4016741

La batterie

12

4032064

BACKING TAILLIGHT

13

7670054

NUT PUSH-ON

14

4010470

Cable

15

2202099

BATTERY BOLT-KIT 30AH

16

4010471

CABLE-RED 8.5 BATTERY/SOLENOID

17

7542105

NUT HEX

18

7552801

Rondelle (Lock)

19

5434037

BOX-BATTERY

20

5432077

TUBE VENT

21

7512024

Vis

22

4011335

SWITCH-MAGNETIC

23

4010376

CABLE SOLENOID/STATER.25

24

2205236

KIT-RECT REG LR-302

24

2204317

KIT-RCT/REG RPL 4010929

25

5133182

HEAT-SINK RECT.

26

4020139

CLIP ROSEBUD

27

7080138

CABLE TIE

28

7512027

Vis
