Главная Каталог товаров KAWASAKI EPC ATV / Quad KAWASAKI 2010 KAWASAKI ATV / Quad KVF360 4x4 KAWASAKI ATV / Quad 2010 KVF360 4x4 (KVF360AAF) KAWASAKI 2010 Handlebar

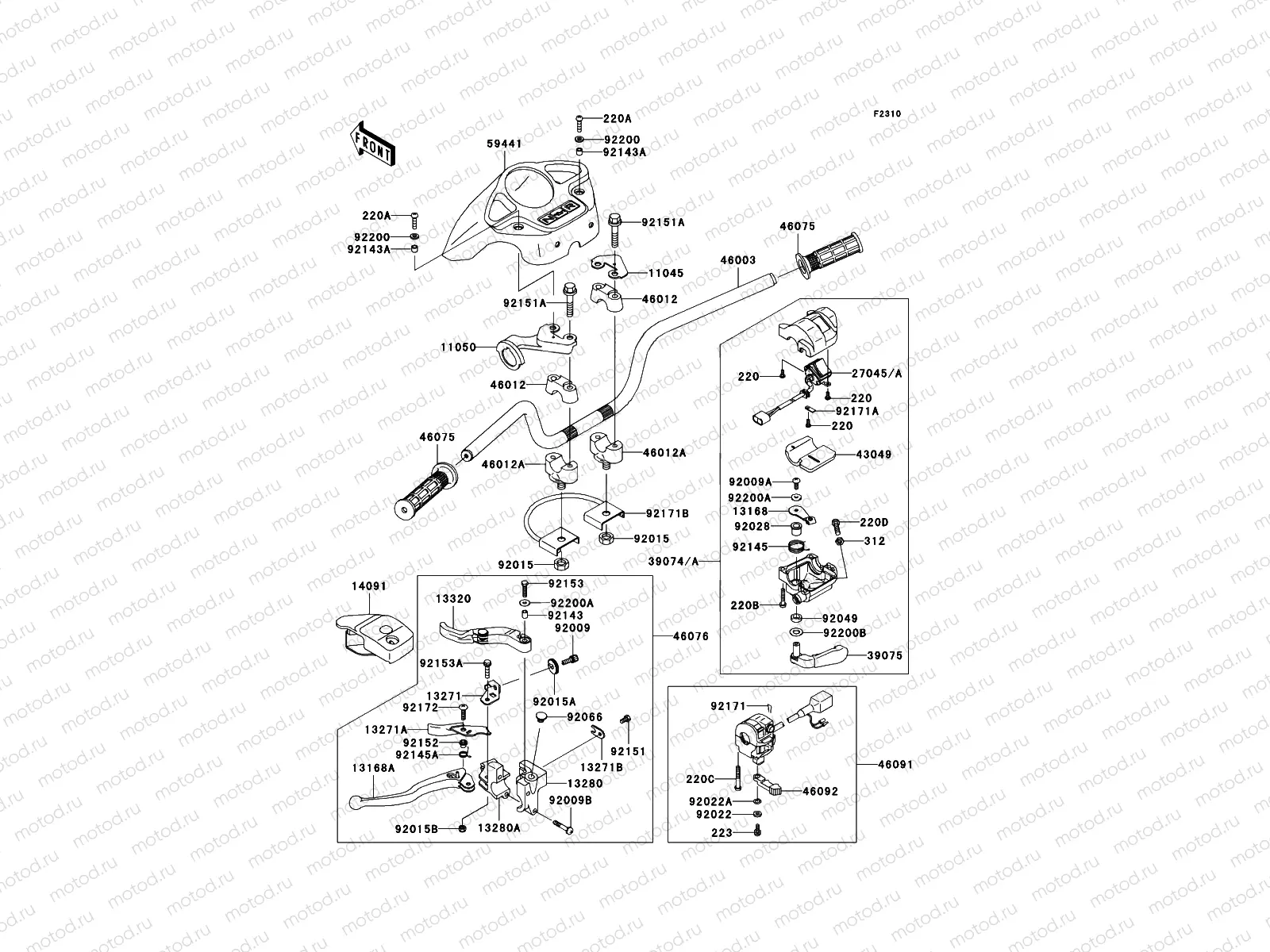

Handlebar

Handlebar

Например: 220AA-0308

220

220AA-0308

5 pc - Vis

80 ₽/шт

220

220AB-0416

5 pc - Vis

89 ₽/шт

220

220AB-0525

Vis (5x25)

89 ₽/шт

220

220AB-0535

Vis

97 ₽/шт

220

220AB-0625

SCREW-PAN-CROS,6X25,B

97 ₽/шт

223

223AB-0512

SCREW-PAN-WS-CROS

312

312AB-0600

NUT-HEX,6MM,BLACK

97 ₽/шт

11045

11045-1925

BRACKET,HANDLE COVER

11050

11050-1727

BRACKET,HANDLE COVER,

13168

13168-1715

LEVER

13168

13168-1736

LEVER,LH

13271

13271-1259

PLATE,LOCK

13271

13272-3826

PLATE,LEVER LOCK

13271

13271-1636

PLATE,WIRE OUTER STOP

13280

13280-1226

HOLDER,DIFF LOCK LEVE

13280

13280-1227

HOLDER,LEVER,LH

13320

13320-0040

LEVER-ASSY,DEFF LOCK

14091

14091-1403

COVER,DIFF LOCK LEVER

27045

27045-0010

SWITCH-ASSY

39074

39074-0011

LEVER-ASSY-THROTTLE

39075

39075-0032

LEVER-THROTTLE

43049

43049-1088

PACKING

46003

46003-7503

Handlebar

46012

46012-1168

HOLDER-HANDLE

46012

46012-7501

HOLDER-HANDLE

46075

46075-7501

GRIP,HANDLE

46076

46076-0180

LEVER-ASSY-GRIP,DIFF LOC

46091

46091-1848

HOUSING-ASSY-CONTROL,

46092

46092-1217

Lever starter

59441

59441-7501-6Z

COVER-HANDLE,F.BLACK

92009

46055-003

SCREW-CABLE ADJUST

92009

92009-1959

Vis

92009

92009-1961

SCREW,6X30

92015

92015-1429

Nut (Lock, 10mm)

402 ₽/шт

92015

46056-005

NUT-LOCK

92015

92019-008

Nut

238 ₽/шт

92022

92022-1837

WASHER,5MM

238 ₽/шт

92022

92022-1838

WASHER,WAVE,5MM

238 ₽/шт

92028

92028-1986

BUSHING

92049

92049-1578

Joint

92066

92066-1077

CAP,REAR VIEW MIRROR

274 ₽/шт

92143

92143-1216

Entretoise

92143

92143-1336

COLLAR,5.6X8X6

225 ₽/шт

92145

92145-1392

Spring

92145

92145-1429

Spring

92151

92151-1975

Vis (5x10)

92151

92151-2130

Vis

113 ₽/шт

92152

92152-1176

Entretoise

92153

92153-1129

Vis

92153

92153-1919

Vis

92171

92171-1095

CLAMP,CLIP

92171

92171-1344

Collier

92171

92171-1503

CLAMP,HARNESS&CABLE

92172

92172-0078

Vis

92200

92200-1361

Rondelle

92200

92200-1558

Rondelle

92200

92200-1559

Rondelle
