Главная Каталог товаров KAWASAKI EPC ATV / Quad KAWASAKI 2010 KAWASAKI ATV / Quad KVF360 4x4 KAWASAKI ATV / Quad 2010 KVF360 4x4 (KVF360AAF) KAWASAKI 2010 Carburetor

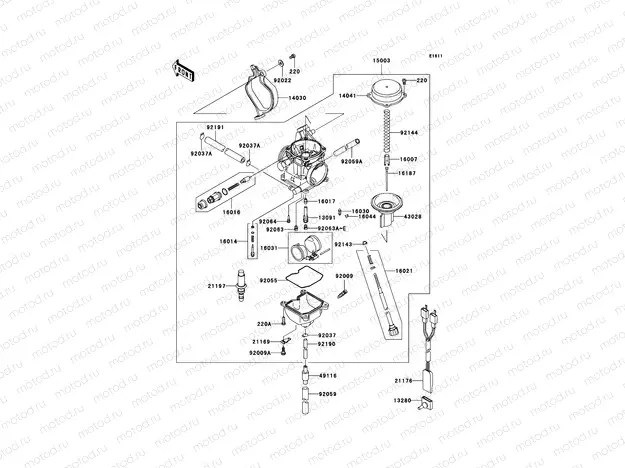

Carburetor

Carburetor

Например: 220AA-0408

220

220AA-0408

5 pc - Vis

74 ₽/шт

220

220AA-0414

5 pc - Vis

80 ₽/шт

13091

13091-1914

HOLDER,NEEDLE JET

13280

13280-1253

Pipe d’admission

14030

14030-1054

COVER-CARBURETOR

14041

16005-1065

TOP-CHAMBER,MIXING

4 451 ₽/шт

15003

15003-1686

Carburettor

16007

16007-1134

SEAT-SPRING,VALVE

16014

16014-1081

SCREW-PILOT AIR (PILOT AIR)

2 246 ₽/шт

16016

16016-1101

PLUNGER

16017

16017-0055

JET-NEEDLE,#6

2 908 ₽/шт

16021

16021-1242

SCREW-THROTTLE STOP

16030

16030-1007

FLOAT VALVE ASSY

3 747 ₽/шт

16031

16031-1077

FLOAT

3 534 ₽/шт

16044

16044-007

5 pc - CLIP, FLOAT VALVE

562 ₽/шт

16187

16187-1236

NEEDLE-JET,N2LQ

21169

21169-1072

TERMINAL

21176

21176-1111

SENSOR,CARBURETOR

21197

21197-1006

HEATER

43028

43028-1081

DIAPHRAGM,VALVE

14 475 ₽/шт

49116

49116-1126

VALVE-ASSY

92009

92009-1551

SCREW,DRAIN

1 309 ₽/шт

92009

92009-1713

Vis

241 ₽/шт

92022

92022-1380

WASHER,5.2X13X1

238 ₽/шт

92037

92037-1201

Collier

305 ₽/шт

92037

92037-1531

Collier

305 ₽/шт

92055

92055-1222

Gasket - float chamber

1 108 ₽/шт

92059

92059-1736

TUBE,7X10X100

92059

92059-1861

TUBE,6.5X9.5X320

1 077 ₽/шт

92063

92063-1003

MAIN JET, 2ND, # 90

900 ₽/шт

92063

92063-1330

JET-MAIN,#150

836 ₽/шт

92063

92063-1331

JET-MAIN,#152

900 ₽/шт

92063

92063-1332

JET-MAIN,#155

900 ₽/шт

92063

92063-1344

JET-MAIN,#158

900 ₽/шт

92063

92063-1345

JET-MAIN,#160

900 ₽/шт

92064

92064-1101

JET-PILOT,#35

1 532 ₽/шт

92143

92143-1589

Entretoise

92144

92144-1066

SPRING,VACUUM VALVE

92190

92190-1557

TUBE,4.5X8X330

1 607 ₽/шт

92191

92191-1144

TUBE,6.5X11.5X130
