Главная Каталог товаров DUCATI EPC 1991 DUCATI Superbike 851 DUCATI 1991 GENERATOR - STARTING MOTOR » IGNITION SYSTEM

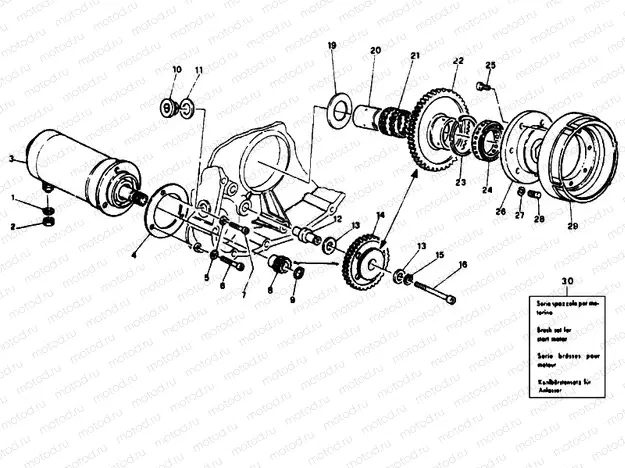

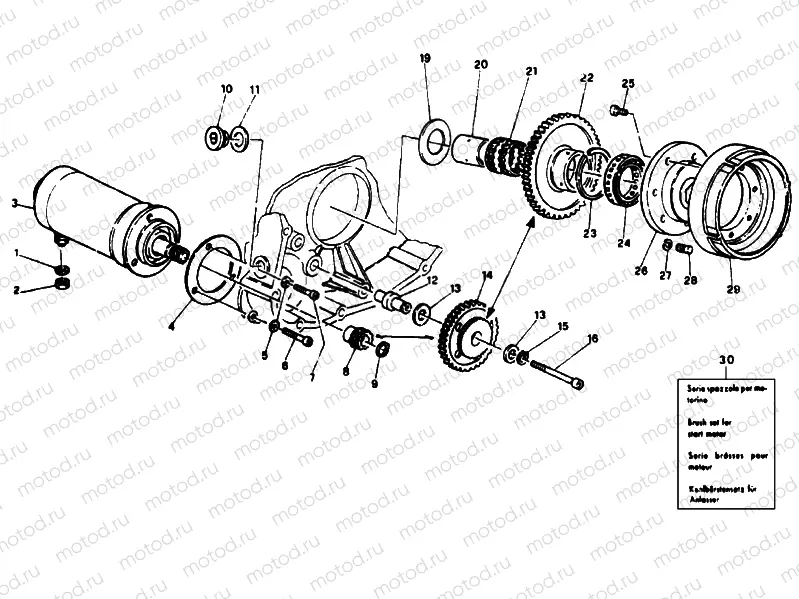

GENERATOR - STARTING MOTOR » IGNITION SYSTEM

GENERATOR - STARTING MOTOR » IGNITION SYSTEM
Например: 75011211A
1
75011211A
Nut
2
85310031A
Rondelle (spring)
3
27040011A
Moteur de démarreur
4
78810542A
Joint - démarreur
5
85310041A
.SPRING WASHER 6 MM
6
77110518B
pc - Vis
7
77150682B
pc - Vis (M6x22)
8
17610011A
PINION STARTER MOTOR
9
88450361A
pc - Seeger
10
78040011A
THREADED PLUG 22X1.5
11
22032083A
Rondelle
12
066050020
STARTER REDUCTION SHAFT
13
85610711A
Rondelle
14
17610021A
IDLE GEAR
15
735001440
Seeger
16
77150772B
Vis
19
061950065
.THRUST WASHER 35.5X48
20
88110101A
.INNER RING
21
70140031A
Needle bearing
22
17310041A
DRIVEN GEAR
23
88240011A
.SPRING RING
24
70140011A
Clutch, one way
25
77140011A
.SCREW M6X12
26
16010102A
FLANGE
27
88210121A
.STOP RING
28
064729045
LOCATING PIN 6X8X10
29
27610021A
FLYWHEEL
30
067050815
.BRUSH SET STARTING MOTOR
