Главная Каталог товаров Triumph EPC 2020 Triumph Tiger 1200 Desert Triumph 2020 (VIN: SMTV1F49) Gear Change Mechanism

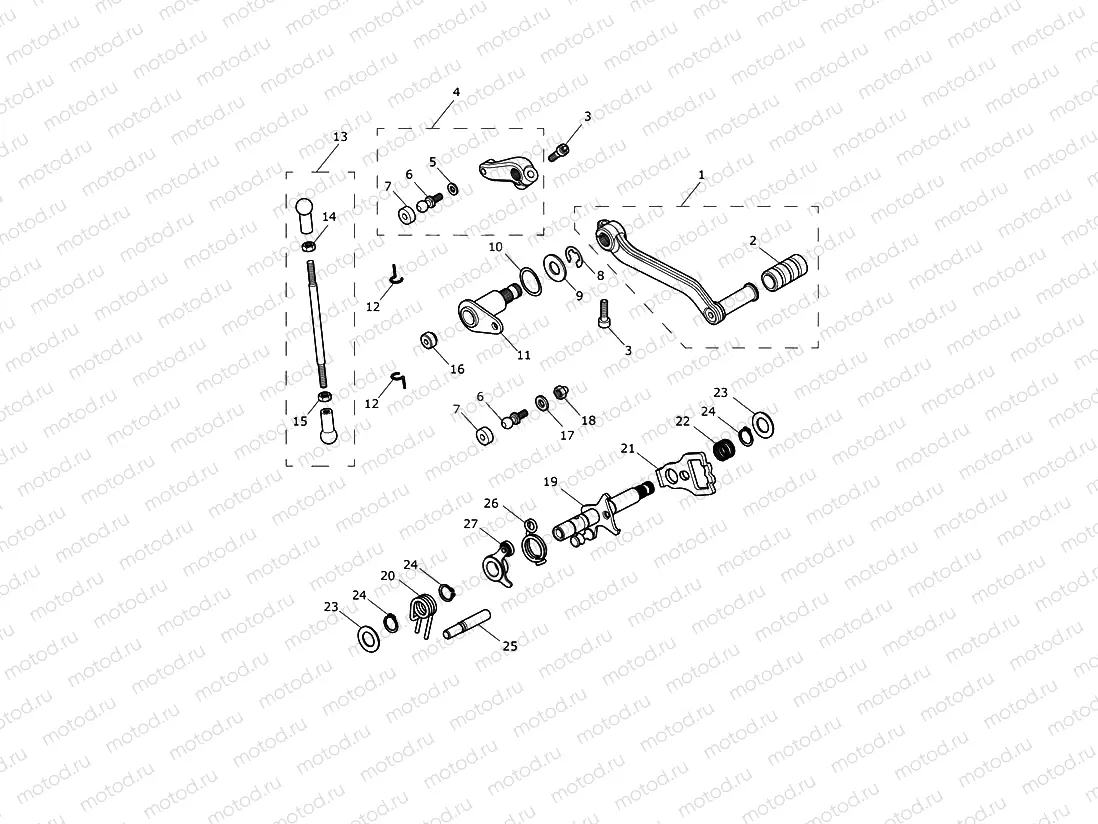

Gear Change Mechanism

Gear Change Mechanism

Например: T2081811

1

T2081811

Pedal Assy, Gearchange

1 шт. в узле

2

T2080529

Rubber, Gearchange Pedal

1 шт. в узле

3

T3050334

Screw, Cap/Hd, M6 x 20, Slv

2 шт. в узле

4

T2081817

Clamp, Linkage Assy

1 шт. в узле

5

T2082156

Washer, 6.4 x 11 x 1.6

1 шт. в узле

6

T2082155

Ball, Ball Joint

2 шт. в узле

7

T2080532

Seal, Gearchange

2 шт. в узле

8

T3500094

E-Circlip, Internal Dia 10

1 шт. в узле

9

T3501795

Washer, M12, OD26, Hardened, S

1 шт. в узле

10

T3550950

Wavy Washer

1 шт. в узле

11

T2081919

Pivot Arm, Gearchange

1 шт. в узле

12

T2081666

Clip, Wire Retention

2 шт. в узле

13

T2081597

Rod, Gearchange Assy, Black

1 шт. в узле

14

T3350307

Nut, M6, LH, Black

1 шт. в узле

15

T3350306

Nut, M6, Black

1 шт. в узле

16

T3021161

Rubber Foot, Dia 14.22 x 7.1

1 шт. в узле

17

T3552004

Washer, M6 x 14 x 2.0

1 шт. в узле

18

T3350305

Locknut, Flgd, M6 x 1.0, Slv

1 шт. в узле

19

T1194444

Shaft Assy, Pivot Gearchange

1 шт. в узле

20

T1191207

Spring, Gearchange Return

1 шт. в узле

21

T1191200

Plate, Pivot

1 шт. в узле

22

T1192521

Spring, Coil, Pivot Plate

1 шт. в узле

23

T3550444

Washer, 15.5 x 25

2 шт. в узле

24

T3502535

Circlip, Din 471, Dia. 14.0

3 шт. в узле

25

T1191189

Abutment Pin, Dowel, Dia 8mm

1 шт. в узле

26

T1191513

Spring, Detent, Torsion

1 шт. в узле

27

T1192122

Detent Arm, Assembly

1 шт. в узле
