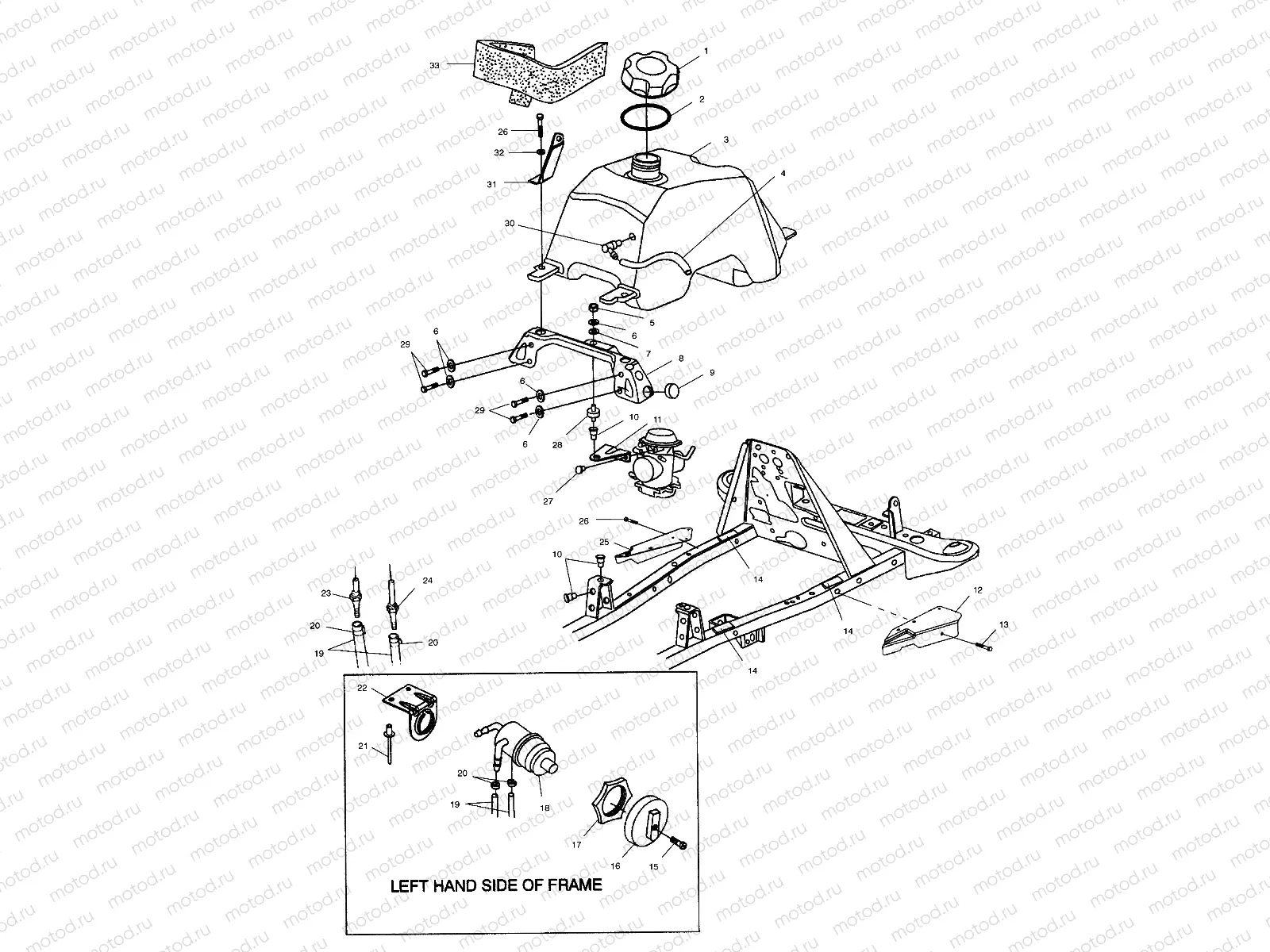

Главная Каталог товаров Polaris EPC SERIES 10 Polaris PPS Polaris SERIES 10 PTV 4X4 (C10CD50AA) Polaris SERIES 10 PPS FUEL TANK and CARBURETOR MOUNTING - C10CD50AA (4977417741B01) | FUEL TANK and CARBURETOR MOUNTING - C10CD50AA (4977417741B01)

FUEL TANK and CARBURETOR MOUNTING - C10CD50AA (4977417741B01) | FUEL TANK and CARBURETOR MOUNTING - C10CD50AA (4977417741B01)

FUEL TANK and CARBURETOR MOUNTING - C10CD50AA (4977417741B01) | FUEL TANK and CARBURETOR MOUNTING - C10CD50AA (4977417741B01)

Например: 5450389

1

5450389

Fuel cap

2

5812123

Gasket

3

2520143

TANK ASM,FUEL Substituted by 2520174 (Incl. 5,19,20)

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

7542105

NUT HEX

6

7552801

Rondelle (Lock)

7

7555859

WASHER FLAT

8

5245672-067

BRKT-CARB SUPPORT,BLK (AA)

9

5410414

BUMPER RUBBER

10

7547069

NUTSERT HEX

11

5245673-067

MOUNT-425/500 CARB,BLK

12

5434762-067

Shield, Splash, RH

13

7517386

Vis

14

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

15

7517505

Vis

16

5432559

KNOB FUEL VALVE

17

5432733

NUT FUEL VALVE

18

7052161

VALVE 3-WAY

19

8450040-600

LINE FUEL 1/4 ID(600 CM.)

20

7080003

CLAMP HOSE

21

7661637

RIVET INTERLOCK Z

22

5240577-067

BRKT,FUELVALVE,BLK

23

7052150

FITTING FUEL OUT MAIN 4 Y

24

7052149

FITTING FUEL OUT RES. Z

25

5245394-067

SHIELD-SPLASH LH BLK

26

7512277

Vis

27

3084205

ASM. SCREW & WASHER

28

3110050

MOUNT CARBURETOR

29

7512276

Vis

30

5431053

VENT TANK

31

5222154

BRKT-FUEL COVER MNT LH PLTD

31

5222155

BRKT-FUEL COVER MNT RH PLTD

32

7558301

WASHER FLAT

33

5811899

FOAM-SEAL,17"
