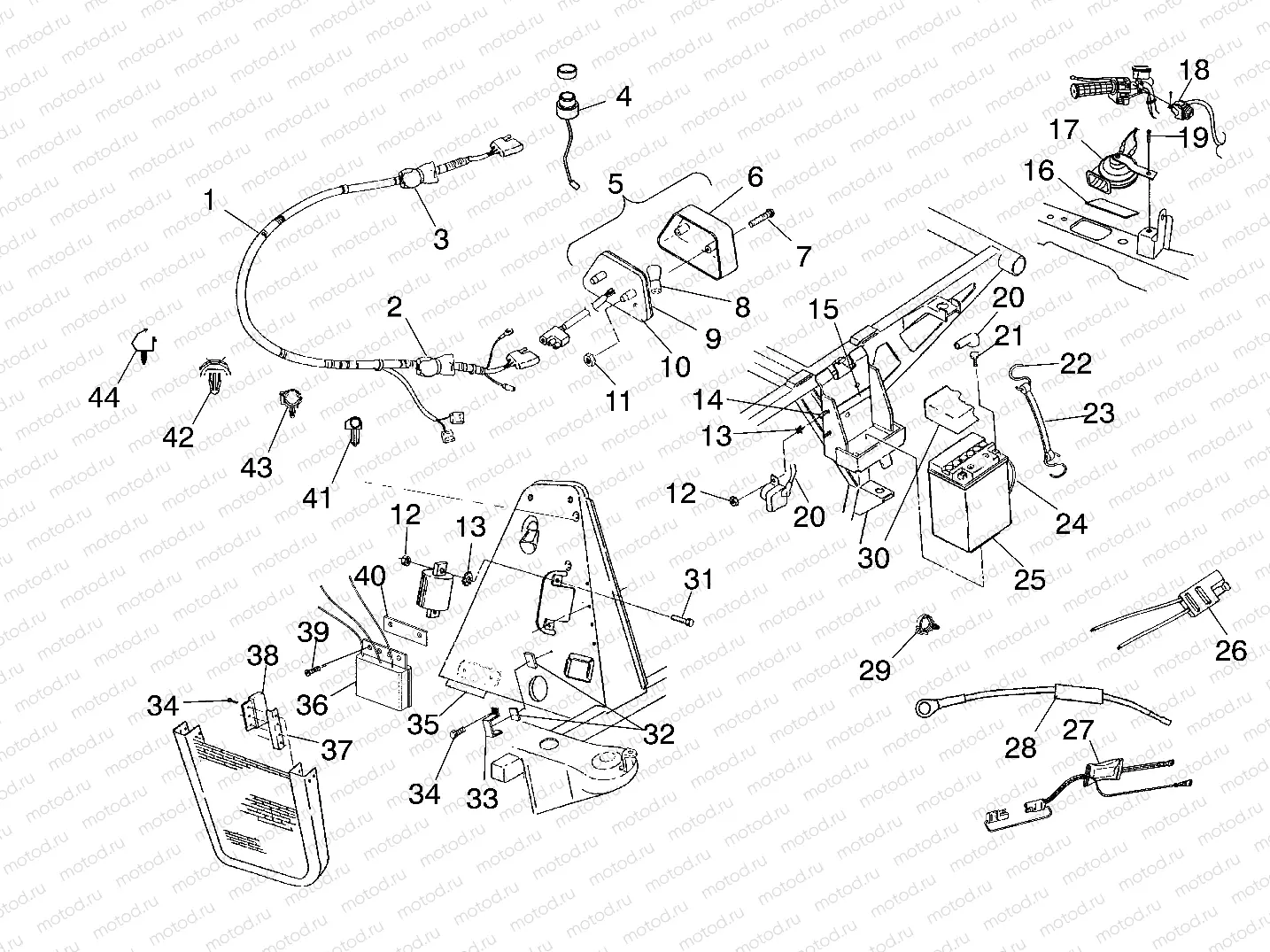

Главная Каталог товаров Polaris EPC SERIES 10 Polaris PPS Polaris SERIES 10 PTV 4X4 (C10CD50AA) Polaris SERIES 10 PPS ELECTRICAL/TAILLIGHT - C10CD50AA (4977417741C07) | ELECTRICAL/TAILLIGHT - C10CD50AA (4977417741C07)

ELECTRICAL/TAILLIGHT - C10CD50AA (4977417741C07) | ELECTRICAL/TAILLIGHT - C10CD50AA (4977417741C07)

ELECTRICAL/TAILLIGHT - C10CD50AA (4977417741C07) | ELECTRICAL/TAILLIGHT - C10CD50AA (4977417741C07)

Например: 2460970

1

2460970

Harness, Main

2

2200593

KIT CKT.BRKR 20 AMP

3

2201795

KIT-CIRCUT BREAKER FAN

4

4040028

Alarm, Reverse

5

2410320

ASM-TAILLIGHT 12V SERIES FIL

6

4032046

Taillight lens

7

4032029

Vis

8

4030043

BULB

9

4032045

Gasket

10

4032064

BACKING TAILLIGHT

11

7670054

NUT PUSH-ON

12

7541925

NUT NYLOK 10-24 Y

13

7571602

Rondelle

14

7512027

Vis

15

5810290

PAD BATTERY

16

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

17

4010310

HORN (FA)

18

4010311

SWITCH BUTTON

19

7517386

Vis

20

4010094

CABLE BATT/SOLENOID RED

21

2200361

KIT-BATTERY BOLT (SHORT)

22

7010032

HOOK-BATTERY STRAP

23

5418182

STRAP-BATTERY HOLD DOWN-C

24

5432077

TUBE VENT

25

4140006

La batterie

26

2460442

PIGTAIL POWER

27

2410022

POWER ASM 12V

28

2202147

KIT-FUSIBLE LINK

29

4020139

CLIP ROSEBUD

30

5431769

COVER BATTERY

31

7512007

Vis

32

5810455

PAD

33

5241416

BRACKET-CDI

34

7512018

Vis

35

5521131

TRIM EDGE 6FT BLACK

36

4010639

Limiter, RPM

37

5131036

HEATSINK RECT.

38

4013954

REGULATOR-RECT LR-390 1200HZOB

39

7519641

BLT-10-24X3/4 MACHSCR PHL PAN

40

5210650

HEAT SINK

41

7670102

CLIP

42

7080965

MOUNT-CABLE TIE .25

43

4020149

CLIP ROSEBUD

44

7670109

CLIP-ROUTING
