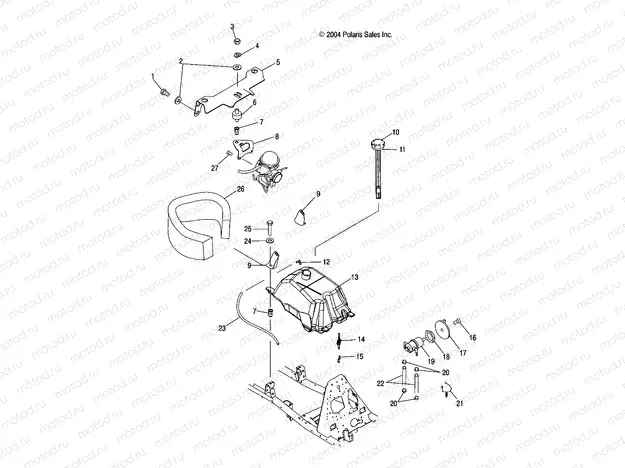

Главная Каталог товаров Polaris EPC 2005 Polaris ATV Polaris 2005 ATP 330 4X4 (A05JD32AA) Polaris 2005 ATV FUEL TANK and CARBURETOR MOUNTING - A05JD32AA (4995169516B03) | FUEL TANK and CARBURETOR MOUNTING - A05JD32AA (4995169516B03)

FUEL TANK and CARBURETOR MOUNTING - A05JD32AA (4995169516B03) | FUEL TANK and CARBURETOR MOUNTING - A05JD32AA (4995169516B03)

FUEL TANK and CARBURETOR MOUNTING - A05JD32AA (4995169516B03) | FUEL TANK and CARBURETOR MOUNTING - A05JD32AA (4995169516B03)

Например: 7512276

1

7512276

Vis

3

7542105

NUT HEX

4

7552801

Rondelle (Lock)

5

5245671-067

Bracket, Carburetor Support

6

3110050

MOUNT CARBURETOR

7

7547069

NUTSERT HEX

8

5245674-067

MOUNT CARBURETOR BLK

9

5222155

BRKT-FUEL COVER MNT RH PLTD

9

5222154

BRKT-FUEL COVER MNT LH PLTD

10

2871442

CAP FUEL GAUGE LONG

11

5812123

Gasket

12

5431053

VENT TANK

13

2520409

ASM-FUEL TANK

14

7052364

Fitting, Fuel Outlet, Dual

15

7515136

Vis

16

7517505

Vis

17

5432559

KNOB FUEL VALVE

18

5432733

NUT FUEL VALVE

19

7052161

VALVE 3-WAY

20

7080003

CLAMP HOSE

21

7670109

CLIP-ROUTING

22

8450117-250

FUEL HOSE-250 CM

23

8360009-600

LINE FUEL 1/8 ID 600 CM.

24

7558301

WASHER FLAT

25

7512277

Vis

26

5811899

FOAM-SEAL,17"

27

3084205

ASM. SCREW & WASHER
