Главная Каталог товаров Polaris EPC 2005 Polaris ATV Polaris 2005 ATP 330 4X4 (A05JD32AA) Polaris 2005 ATV ELECTRICAL - A05JD32AA (4995169516C07) | ELECTRICAL - A05JD32AA (4995169516C07)

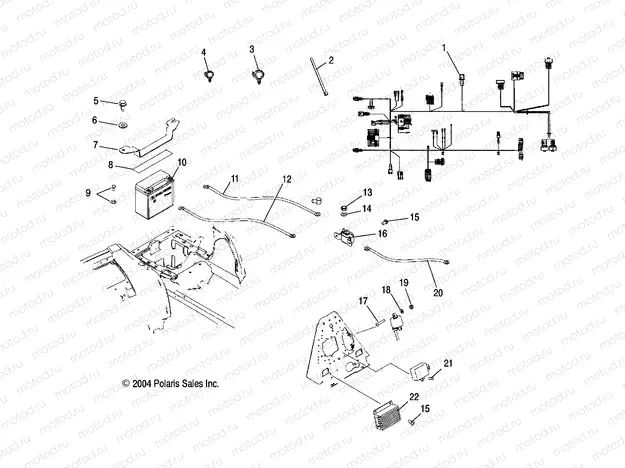

ELECTRICAL - A05JD32AA (4995169516C07) | ELECTRICAL - A05JD32AA (4995169516C07)

ELECTRICAL - A05JD32AA (4995169516C07) | ELECTRICAL - A05JD32AA (4995169516C07)

Например: 2410496

1

2410496

Harness, Main

1

2204890

KIT-HARNESS RESISTOR MODULE

1

2202147

KIT-FUSIBLE LINK

2

7080138

CABLE TIE

3

4020149

CLIP ROSEBUD

4

4020139

CLIP ROSEBUD

5

7512242

Vis

6

7555859

WASHER FLAT

7

5247373-067

Strap, Battery

8

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

9

2202848

KIT-BATTERY BOLT

10

4011138

BATTERY-SEALED 14AH ETX15

11

4010095

CABLE BATT/ENG. BLK.

12

4011147

CABLE-16.5 BAT/SOLENOID RED

13

7547283

NUT-1/4-20 HX JAM-Y

14

7552801

Rondelle (Lock)

15

7512024

Vis

16

4011251

SWITCH-MAGNETIC

17

7512007

Vis

18

7571602

Rondelle

19

7541925

NUT NYLOK 10-24 Y

20

4010093

CABLE SOL/STARTER

21

7512018

Vis

22

2203129

KIT-SUREPOWER ECM 4011084
