Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 MAGNUM 325 4X4 FREEDOM (A02CD32AC) Polaris 2002 ATV FUEL TANK and CARBURETOR MOUNTING - A02CD32AA/AB/AC/FB (4970147014B05) | FUEL TANK and CARBURETOR MOUNTING - A02CD32AA/AB/AC/FB (4970147014B05)

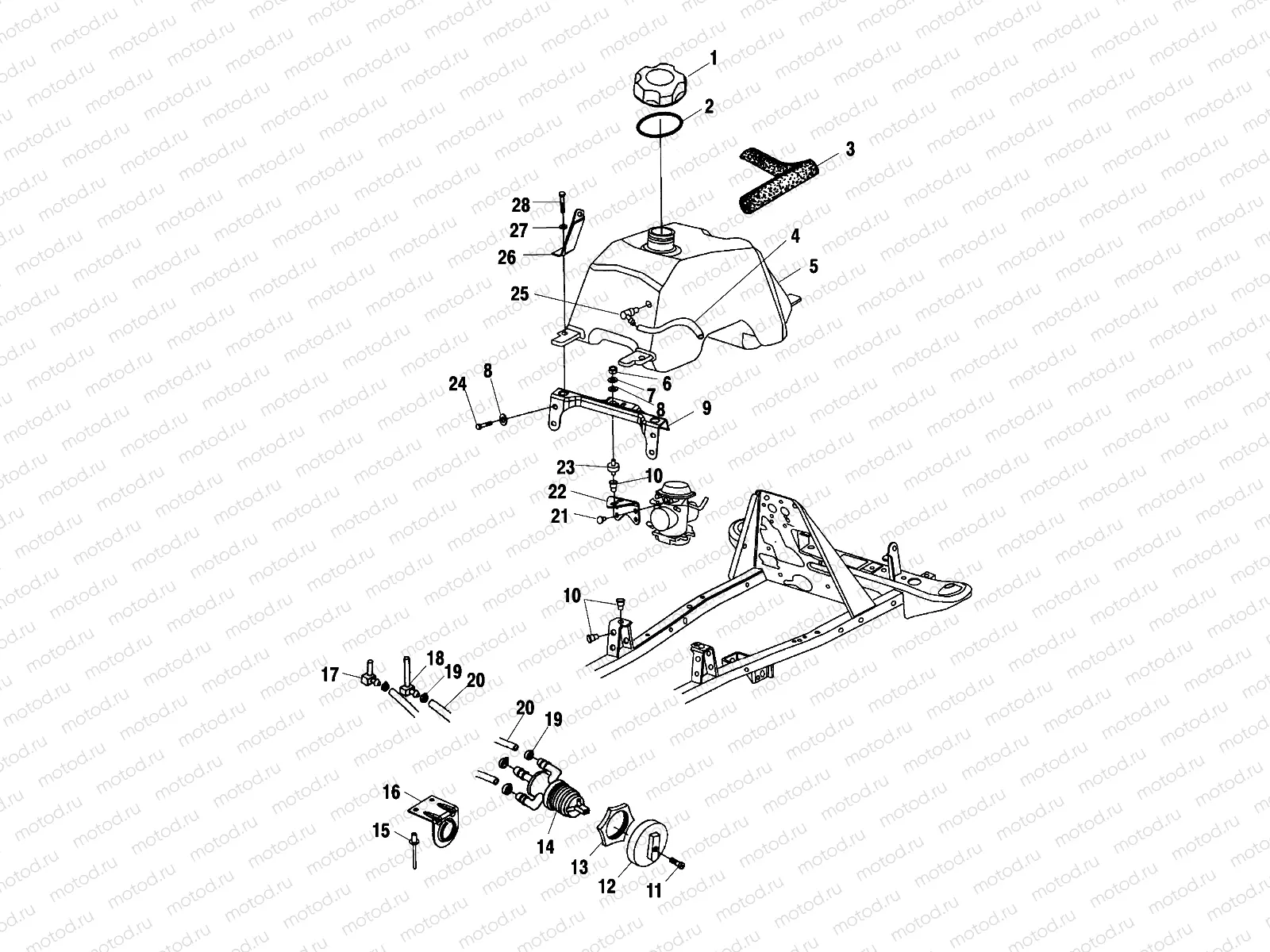

FUEL TANK and CARBURETOR MOUNTING - A02CD32AA/AB/AC/FB (4970147014B05) | FUEL TANK and CARBURETOR MOUNTING - A02CD32AA/AB/AC/FB (4970147014B05)

FUEL TANK and CARBURETOR MOUNTING - A02CD32AA/AB/AC/FB (4970147014B05) | FUEL TANK and CARBURETOR MOUNTING - A02CD32AA/AB/AC/FB (4970147014B05)

Например: 5450389

1

5450389

Fuel cap

2

5812123

Gasket

3

5811899

FOAM-SEAL,17"

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

2520409

ASM-FUEL TANK

6

7542105

NUT HEX

7

7552605

Rondelle

8

7555859

WASHER FLAT

9

5245671-067

Bracket, Carburetor Support

10

7547069

NUTSERT HEX

11

7517505

Vis

12

5432559

KNOB FUEL VALVE

13

5432733

NUT FUEL VALVE

14

7052161

VALVE 3-WAY

15

7661637

RIVET INTERLOCK Z

16

5240577-067

BRKT,FUELVALVE,BLK

17

7052146

FITTING FUEL OUT MAIN Y

18

7052149

FITTING FUEL OUT RES. Z

19

7080003

CLAMP HOSE

20

8450040-600

LINE FUEL 1/4 ID(600 CM.)

21

3084205

ASM. SCREW & WASHER

22

5245674-067

MOUNT CARBURETOR BLK

23

3110050

MOUNT CARBURETOR

24

7512276

Vis

25

5431053

VENT TANK

26

5222154

BRKT-FUEL COVER MNT LH PLTD

26

5222155

BRKT-FUEL COVER MNT RH PLTD

27

7558301

WASHER FLAT

28

7512277

Vis
