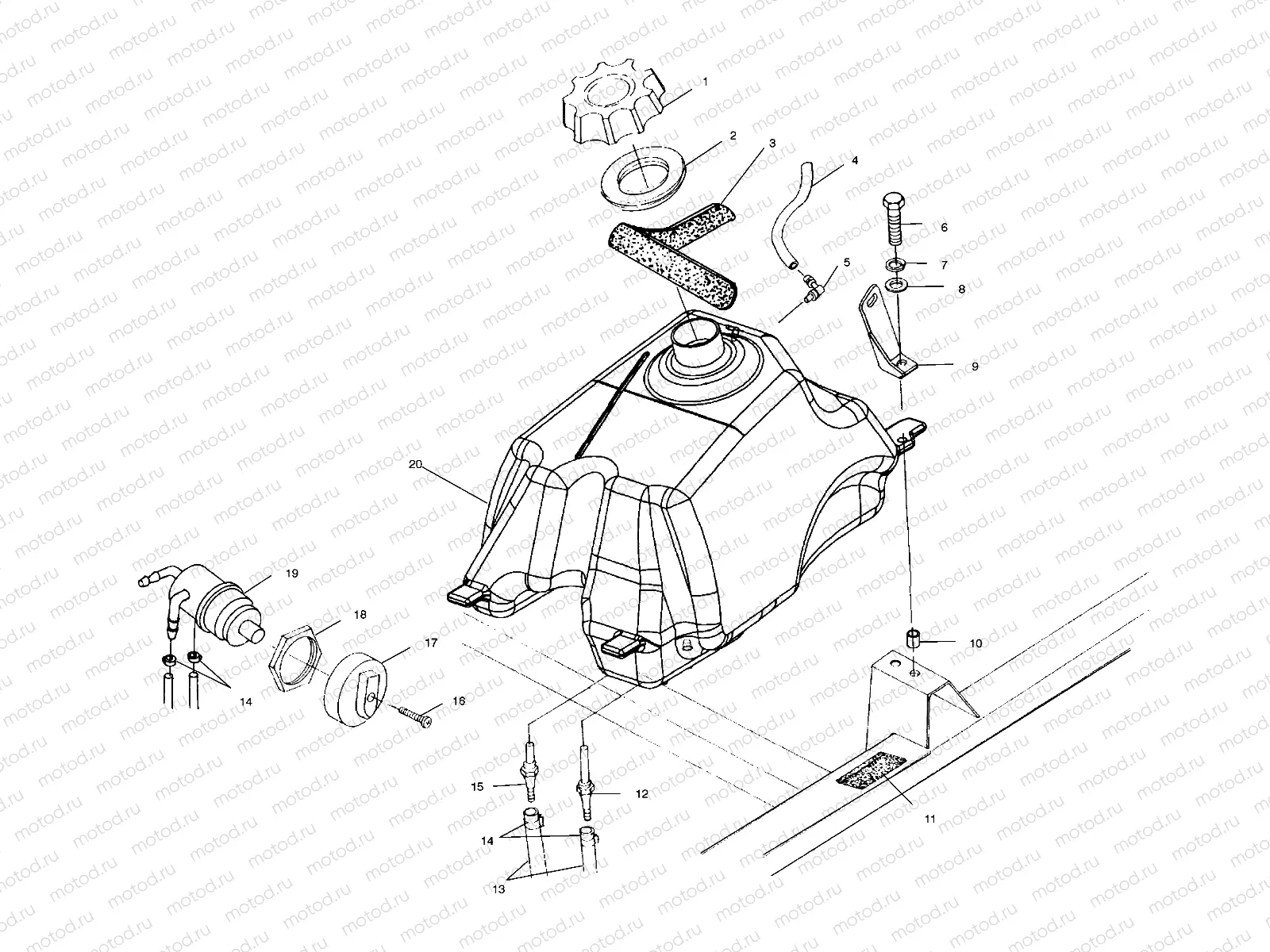

FUEL TANK - A00CH33AC (4959905990B002) | FUEL TANK - A00CH33AC (4959905990B002)

FUEL TANK - A00CH33AC (4959905990B002) | FUEL TANK - A00CH33AC (4959905990B002)

Например: 5430725

1

5430725

CAP GAS (BLACK)

2

5810144

GASKET-GAS CAP

3

5811310

SEAL-FOAM 21 IN

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

5431053

VENT TANK

6

7512247

Vis

7

7552801

Rondelle (Lock)

8

7558301

WASHER FLAT

9

5222154

BRKT-FUEL COVER MNT LH PLTD

9

5222155

BRKT-FUEL COVER MNT RH PLTD

10

7542143

INSERT

11

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

12

7052146

FITTING FUEL OUT MAIN Y

13

8450040-600

LINE FUEL 1/4 ID(600 CM.)

14

7080003

CLAMP HOSE

15

7052149

FITTING FUEL OUT RES. Z

16

7517505

Vis

17

5432559

KNOB FUEL VALVE

18

5432733

NUT FUEL VALVE

19

7052161

VALVE 3-WAY

20

2511289

TANK ASM,FUEL (Incl. 5,13,16)
