Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 SPORTSMAN 335 (A00CH33AF) Polaris 2000 ATV FRONT STRUT - A00CH33AC (4959905990B007) | FRONT STRUT - A00CH33AC (4959905990B007)

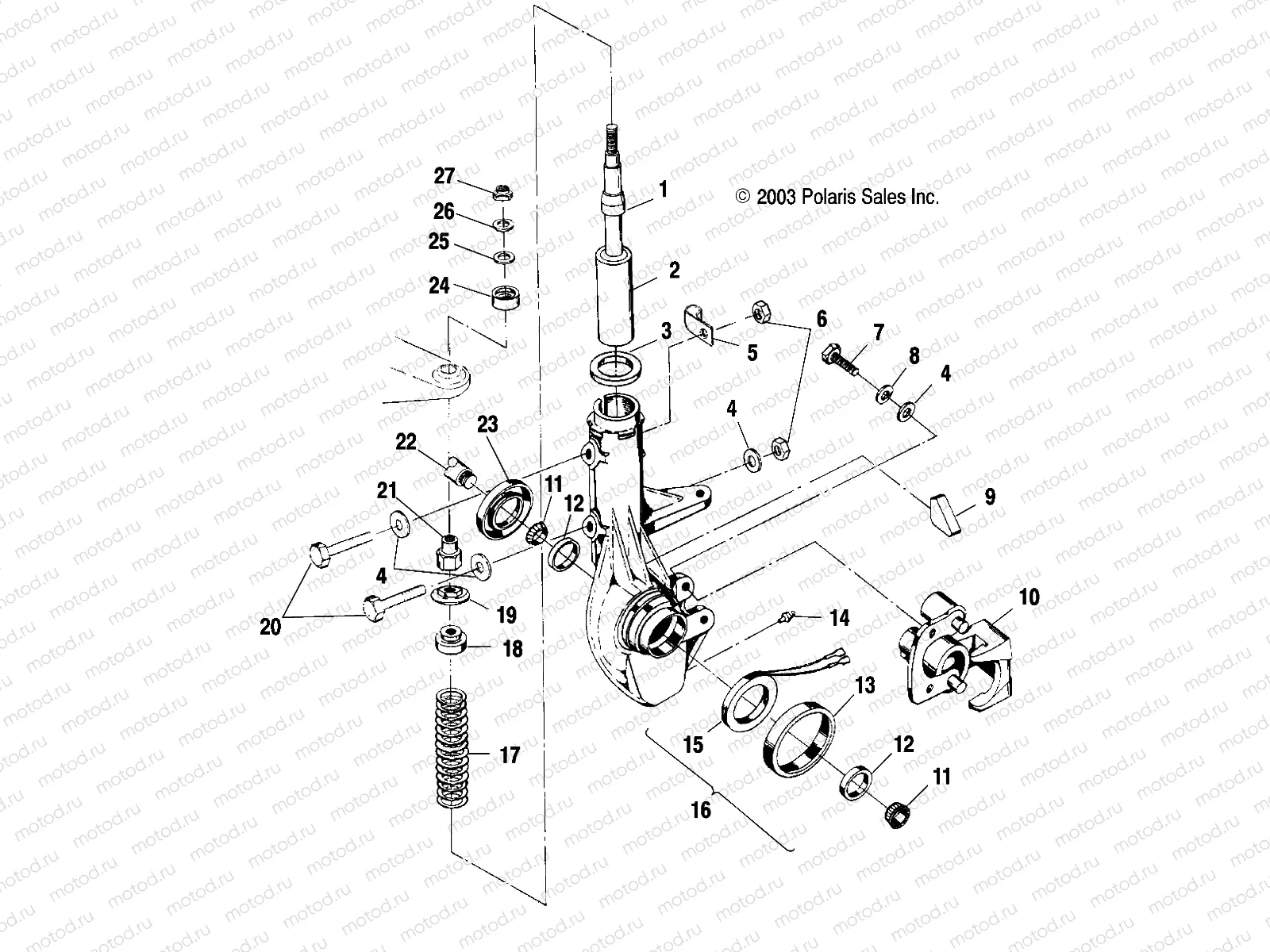

FRONT STRUT - A00CH33AC (4959905990B007) | FRONT STRUT - A00CH33AC (4959905990B007)

FRONT STRUT - A00CH33AC (4959905990B007) | FRONT STRUT - A00CH33AC (4959905990B007)

Например: 5412665

1

5412665

BUMPER-MCU 17.8MM ID

2

7041761

STRUT-FRONT 18X30MM 153.8MM ST

3

5211115

Rondelle

4

7558402

WASHER FLAT

5

7080573

CLAMP RUBBER-COATED .562

6

7542303

NUT FLEX-LOC

7

7512365

SCREW CAP

8

7552901

Rondelle (Lock)

9

5810439

RETAINER,WIRE,STRUT CAST

10

LR--

CALIPER, BRAKE, RH

11

3554509

BEARING TAPERED ROLLER

12

3554507

BRG TAPER ROLL CUP

13

5222193

SLEEVE STRUT HUB SEAL

14

7080306

FITTING LUBE.W/BALL CK.

15

2201313

HUB/COIL(KIT)

16

2201311

HUBSTRUT SVC BRN/WHT 42 LH

16

2201312

HUBSTRUT SVC BRN/WHT 42 RH

17

7042312-067

SPRING-COMP 64-113# 11.6 BLK

18

5243364

RETAINER-SPRING

19

5432871

PIVOT BALL BOTTOM

20

7515339

Vis

21

5132062

SPACER-1/2-20

23

3610028

SEAL HUB STRUT

24

5432872

PIVOT BALL TOP

25

5810291

SPACER RUBBER

26

7555749

Rondelle

27

7547104

NUT
