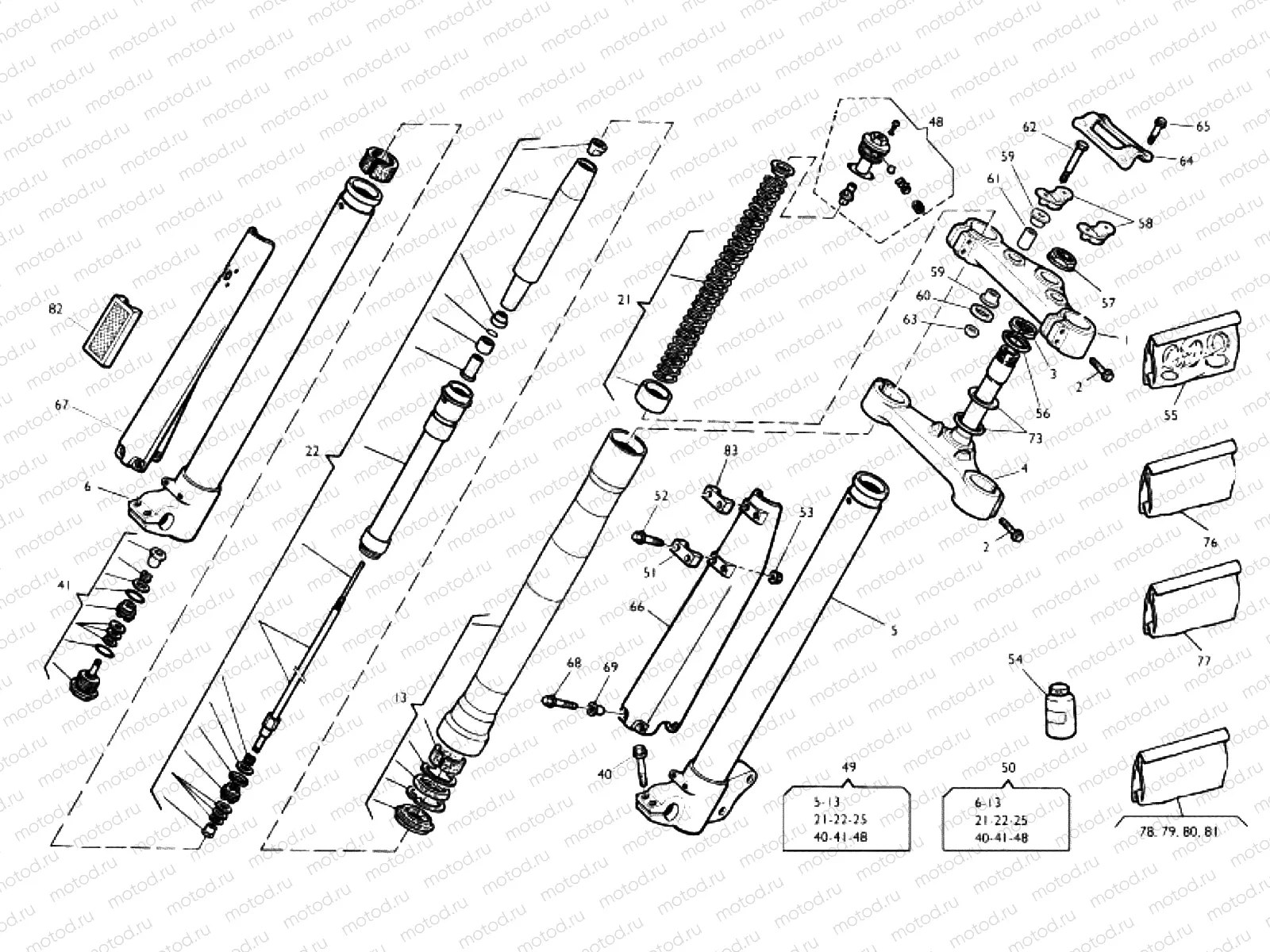

FRONT FORK ASSEMBLY

FRONT FORK ASSEMBLY
Например: 8000A3563
1
8000A3563
HEAD, STEERING STEM
2
8F0096722
SCREW M8X40
3
800083395
RING NUT, STERING STEM
4
8000A3564
STEERING STEM
5
800098787
FORK INNER TUBE LEFT
6
800098786
FORK INNER TUBE RIGHT
13
800091474
FORK OUTER TUBE ASSY
21
800091610
FORK SPRING K=4.5 N/MM
22
800098552
PISTON, FRONT FORK
40
8D0096721
Vis
41
800098781
BOTTOM VALVE ASSY
48
800091480
CAP, FRONT FORK
49
8000A3567
FORK LEG ASSY, LEFT
50
8000A3568
FORK LEG ASSY, RIGHT
51
8000A0633
PLATE
52
8C0096720
Vis
53
Z00061355
Nut (Lock)
54
800080260
FORK OIL
55
8000A3569
GASKET SET
56
8A0065503
WASHER 34.5X26
57
800069315
NUT, STEERING STEM M24X1 CH30
58
8A00A3572
HANDLEBAR CLAMP
59
800060233
RUBBER
60
800060234
Rondelle (28x22x10.5x2.5)
61
8000H3016
Entretoise
62
SPMV8T0082751
is
63
60N115218
ut
64
8000A3573
HANDLEBAR BRACKET, UPPER
65
8B0096719
SCREW M8X20
66
8000A3574
PROTECTION FORK TUBE,LEFT
67
8000A3620
PROTECTION FORK TUBE, RIGHT
68
8A0096720
SCREW M5 L10
69
800069282
Bushing
76
8000A3570
BUSH KIT
77
8000A3571
SEAL RING KIT
78
800098782
REED SET 0.1 MM
79
800098783
REED SET 0.2 MM
80
800098784
REED SET 0.3 MM
81
800098785
REED SET 0.4 MM
82
800073832
REFLEX REFLECTOR, SIDE
82
SPMV80B073832
RETROREFLECTOR
83
8000A4013
PLATE
