Главная Каталог товаров Triumph EPC 2023 Triumph Tiger 1200 GT Pro Triumph 2023 (VIN: SMTTAP22) Frame & subframe

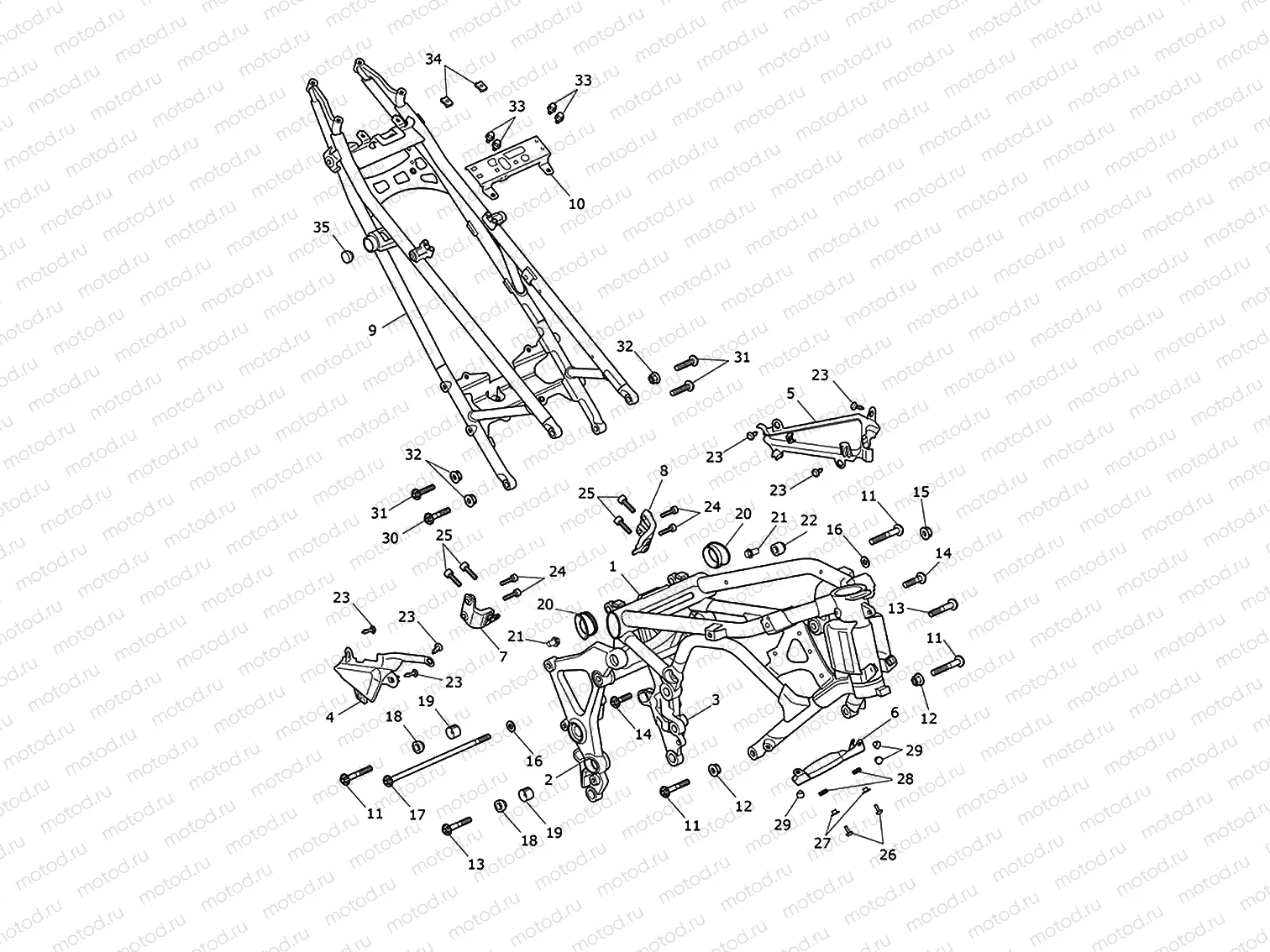

Frame & subframe

Frame & subframe

Например: T2078903

1

T2078903

Frame Assembly, Spares, CA

1 шт. в узле

1

T2078904

Frame Assembly, Spares, US

1 шт. в узле

1

T2078902

Frame Assembly, Spares, AU

1 шт. в узле

1

T2078905

Frame Assembly, Spares, CN

1 шт. в узле

1

T2078901

Frame Assembly, Spares, A3

1 шт. в узле

1

T2078907

Frame Assembly, Spares, KR

1 шт. в узле

1

T2078906

Frame Assembly, Spares, XA

1 шт. в узле

2

T2077873

Outrigger, Forged, RH

1 шт. в узле

3

T2077872

Outrigger, Forged, LH

1 шт. в узле

4

T2073808

Frame Infill, RHS

1 шт. в узле

5

T2071571

Frame Infill, LH

1 шт. в узле

6

T2074115

Frame Infill, Front

1 шт. в узле

7

T2077875

Bracket, Support, Outrigger, RH

1 шт. в узле

8

T2077874

Bracket, Support, Outrigger, LH

1 шт. в узле

9

T2071409

Rear Subrame Assy, Nevada Silver

1 шт. в узле

10

T2071425

Bridge, Front

1 шт. в узле

11

T3331342

Bolt, TX, M12 x 70, Slv

4 шт. в узле

12

T3350184

Nut, LH, M6, Slv

2 шт. в узле

13

T3331341

Bolt, TX, M12 x 63, Shld, Slv

2 шт. в узле

14

T3331343

Bolt, TX, M12 x 40, Slv

2 шт. в узле

15

T3350250

Locknut, Flanged, M10

3 шт. в узле

16

T3555029

Washer, 10.5 x 23 x 2

2 шт. в узле

17

T3202110

Bolt, TX, M10 x 270

1 шт. в узле

18

T2077847

Sleeve, Tapered

2 шт. в узле

19

T2077846

Sleeve, Expanding

2 шт. в узле

20

T2072269

Bung

2 шт. в узле

21

T3205156

Bolt, HHF, Lghtd, M8 x 18, Slv

2 шт. в узле

22

T2072421

Nut Cover, LH Outrigger

1 шт. в узле

23

T3701170

Plastic Rivet, Screw Type

6 шт. в узле

24

T3050323

Screw, Cap/Hd, M8 x 30, Slv

4 шт. в узле

25

T3050176

Screw, Cap/Hd. M8 x 30, Slv

4 шт. в узле

26

T3330941

Screw, But/Hd, Skt, M5 x 16, S

2 шт. в узле

27

T3010126

Flanged Sleeve, M5, Slv

2 шт. в узле

28

T3020085

Grommet, Dia 18x1x9

2 шт. в узле

29

T3021161

Rubber Foot, Dia 14.22 x 7.1

3 шт. в узле

30

T3151125

BOLT,TX,M10X1.25X52,SLV

1 шт. в узле

31

T3210022

Bolt, TX, M10 x 45, Slv

3 шт. в узле

32

T3350250

Locknut, Flanged, M10

3 шт. в узле

33

T3203222

Bolt, HHF, M6 x 12, Slv

3 шт. в узле

34

T3350123

Nut, Captive, M5, Non-Secured

2 шт. в узле

35

T2307369

Rubber Foot, 4mm Deep

1 шт. в узле
