Главная Каталог товаров KTM EPC 2016 KTM Offroad KTM 2016 MX KTM 2016 Offroad 250 SX-F FACTORY EDITION (F8175P1) [US] KTM (VIN: VBKSXK43) FRAME

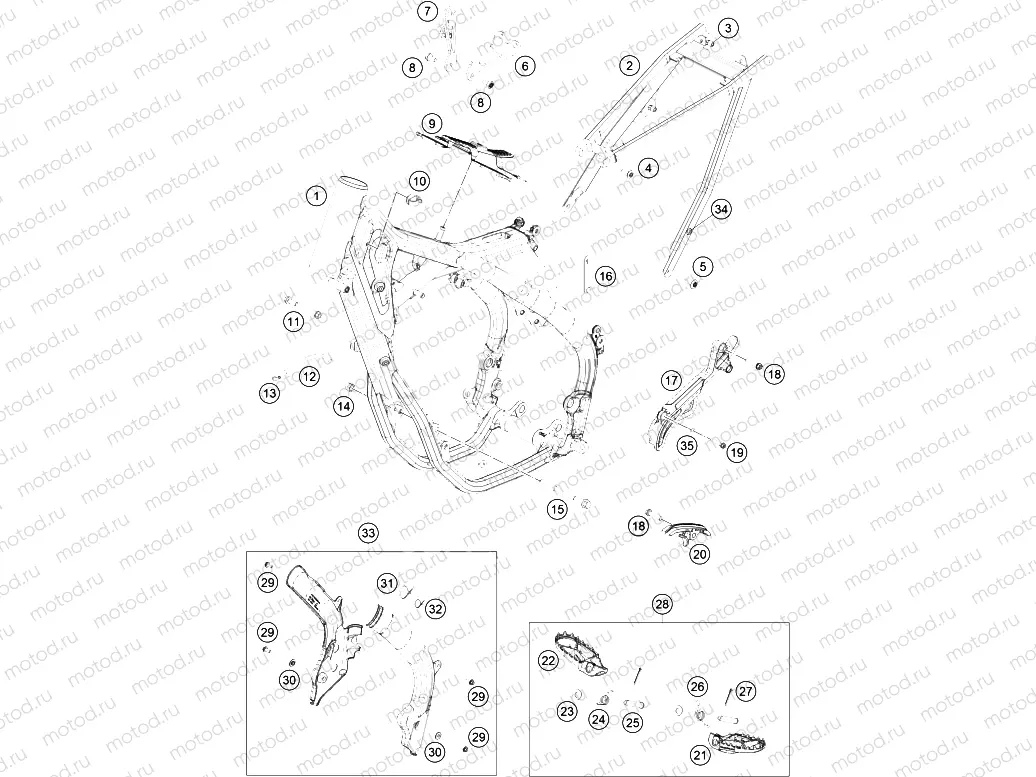

FRAME

FRAME
Например: 79003001000EB
1
79003001000EB
FRAME "790P3" EL.ORANGE
2
79003002000
SUBFRAME 2016
3
77303139000
BLIND RIVET NUT EM6-60LF/HX
4
0019080206S
Vis (Flat M8x20)
5
79003003000
Vis (spec)
6
79003013000
ENGINE BRACE L/S
7
79003014044
REINFORCING RIGHT CPL.
8
0035080156S
AH-COLLAR SCREW M8X15 TORX45
9
79007012000
TANK REST RUBBER
10
58111076000
CABLE SUPPORT KHS NR.150-47610
11
0025080166S
Vis
12
55007016001
PVC-HOSE 7X10 PER METER
13
50303089000
ANGLE PIECE '97
14
54310086100
SELF LOCKING NUT M10 CU WS=14
15
77203014000
engine brac.scr. M10x115
16
60011093075
RUBBER CABLE TIE 75MM 03
17
79003096000
ENGINE SPROCKET COVER 250/350
18
0025080306
Vis
19
0025060406
Vis
20
79003053000
CHAIN SLIDER LOWER PART CPL.
21
79003040000
FOOTREST L/S 2016
22
79003041000
FOOTREST R/S 2016
23
0125100003
washer DIN 125 A 10.5
24
79003044000
FOOTREST SPRING R/S 2016
25
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
26
79003045000
FOOTREST SPRING L/S 2016
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
79003040033
FOOT PEGS SET CPL. 2016
29
0014050123
Vis
30
54803092060
BUSH F. FRAME PROTECTION 03
31
44011076305
CABLE TIE 300/4,8MM BLACK
32
44011076140
CABLE TIE 140/2,5MM BLACK
33
79003094000EB
Frame Protection Set Orange
3 623 ₽/шт
34
79003002080
BLIND RIVET NUT M6 KNURLED
35
0125060003
WASHER DIN0125-A 6,4
