Главная Каталог товаров KTM EPC 2007 KTM Street KTM 2007 Naked Bike KTM 2007 Street 990 SUPER DUKE R (9803G8) [EU] KTM (VIN: VBKVD940) FRAME

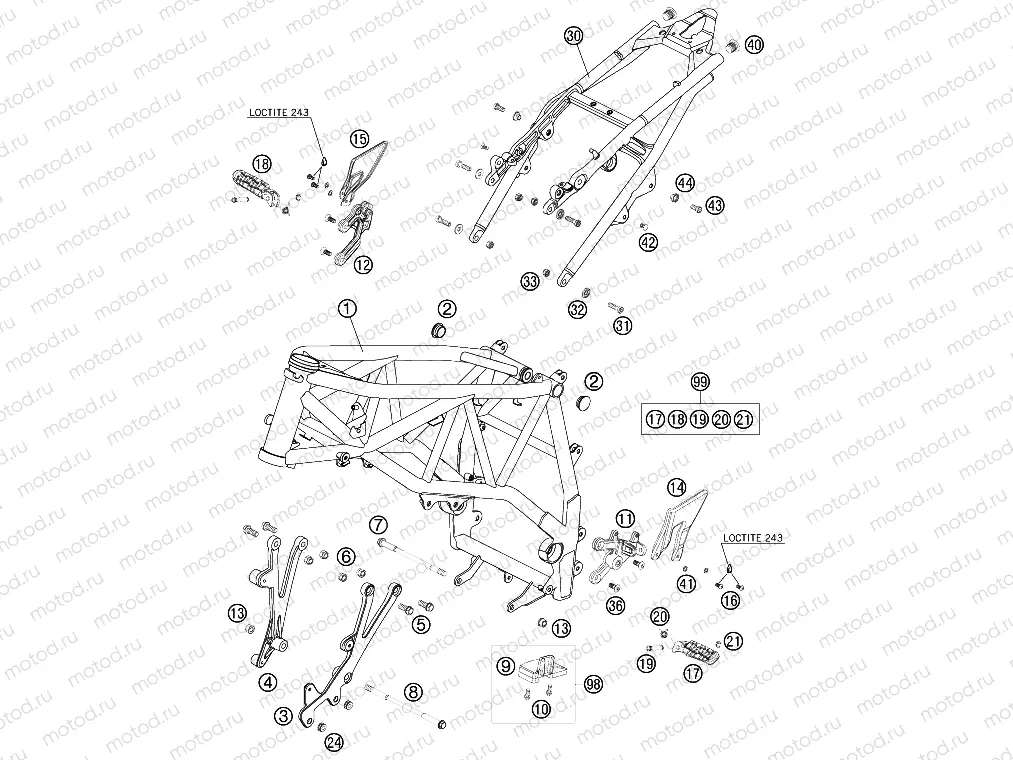

FRAME

FRAME
Например: 6110300110004
1
6110300110004
FRAME ''FG07'' ORANGE 990SD-R 07
2
61003088000
PLUG SFL28 05
3
6100300500033S
ENGINE SUPPORT L/S 07
4
6100300600033S
ENGINE SUPPORT R/S 07
5
0015100243
Vis
6
54310086100
SELF LOCKING NUT M10 CU WS=14
7
60003013000
Vis (M10x172)
8
60003014000
ENGINE BRAC. SCREW M10X206 03
9
60004076100
CHAIN SLIDING BLOCK 05
10
0017060206
SCREW F. PLASTIC K60X20AL SW6
11
6100303800033S
FOOT REST BRACKET FR. LE. 07
12
6100303900033S
FOOT REST BRACKET FRONT R/S 05
13
55530044000
Nut
14
6103413200049
HEEL PROTECTOR L/S 07
15
6101313200049
HEEL PROTECTOR R/S 07
16
0738060101
COU.SUNK SCR. AH ISO7380 M6X10
17
61003050000
FOOTREST FRONT L/S CPL. 05
18
61003051000
FOOTREST FRONT R/S CPL. 05
19
60003044000
BOLT FOR FOOTREST REAR 03
20
61003042000
SPRING FOOTREST FRONT 05
21
0799060003
retaining washer DIN 6799 - 6
24
60003098000
RUBBER SLEEVE 03
30
6110300210033
SUB FRAME BLACK MATT 07
31
0012080303
AH SCREW DIN6912-M 8X30
32
61003002058
STEPPED WASHER 8,5X20X3,5 05
33
0926080003
STOP NUT DIN6926 M8 SS
36
0019080206S
Vis (Flat M8x20)
40
61003089000
PLUG SFL 22X1,8-3,5
41
0137060004
SPRING WASHER DIN 137
42
61103165000
PLUG FOR M8
43
0984080183
AH SCREW DIN7984-M 8X18
44
61108128000
SPACER BUSH REAR-TOP-PART L=10
98
60004076110
CHAIN SLIDING KIT BELOW
99
61003040010
FOOTPEG KIT 990 SD/SDR
