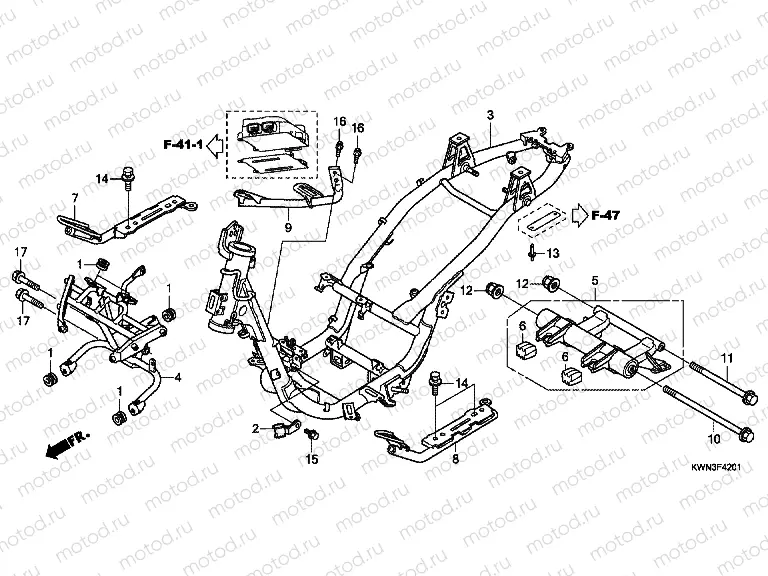

F-42-1 FRAME HOUSING (WW125EX2C / EX2D / EX2E / D)

F-42-1 FRAME HOUSING (WW125EX2C / EX2D / EX2E / D)
Например: 19051-KA4-000
1
19051-KA4-000
Damper (Radiator)
315 ₽/шт
2
43456-KWN-710
CLAMPER ARR BRK
591 ₽/шт
3
50100-KZY-700
BODY COMP., FRAME
4
50310-KWN-710
STAY, FR. COVER
5
50350-KWN-710
LINK ASSYENG HAN
14 739 ₽/шт
6
50352-KWN-710
RUBBERLINK STOPP
582 ₽/шт
7
50620-KWN-710
STAY COMP., R. FLOOR
4 581 ₽/шт
8
50621-KWN-710
STAY COMP., L. FLOOR
4 581 ₽/шт
9
50622-KWN-710
STAY COMPECU
1 384 ₽/шт
10
90105-KVY-900
is
613 ₽/шт
11
90106-GCC-C50
Vis
802 ₽/шт
12
90304-KGH-901
Nut (10 mm)
291 ₽/шт
13
90841-KM1-670
RIVET, PLATE
213 ₽/шт
14
93404-080-1600
Bolt-washer
71 ₽/шт
15
95701-060-1200
Bolt
58 ₽/шт
16
95701-060-1400
Bolt
55 ₽/шт
17
95801-080-4508
Bolt
86 ₽/шт
