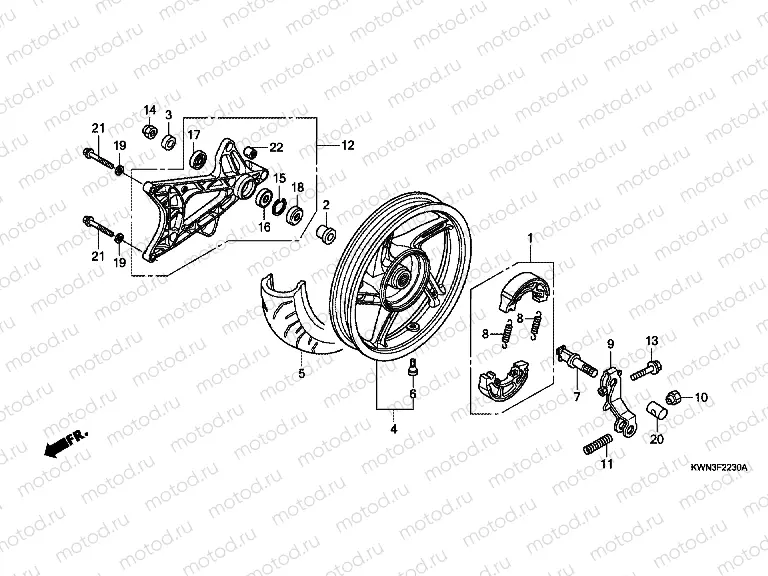

F-22-30 REAR WHEEL / SWING

F-22-30 REAR WHEEL / SWING
Например: 06430-KWN-900
1
06430-KWN-900
Brake shoe
3 627 ₽/шт
2
42311-KWN-900
Entretoise
1 069 ₽/шт
3
42312-KWN-700
COLLAR B, RR. WHEEL SIDE
739 ₽/шт
4
42650-KWN-711ZB
HEEL SUB ASSY., RR. *NH3
5
42711-KWN-903
TIRERR(IRC)
6
42753-K38-901
IS REPLACED BY 42753K38901
7
43141-KWN-930
CAMREAR BRAKE
2 254 ₽/шт
8
43151-329-000
Spring, brake shoe
315 ₽/шт
9
43410-KWN-900
ARMREAR BRAKE
1 478 ₽/шт
10
95015-42000
NUT B, BRAKE ROD ADJUSTIN
157 ₽/шт
11
43472-KVB-900
SPRING, RR. BRAKE ARM
275 ₽/шт
12
52100-KWN-710
SWINGARM ASSY
18 207 ₽/шт
13
90112-KVB-900
is
236 ₽/шт
14
90305-KWN-701
UT, U, 16MM
912 ₽/шт
15
94520-40000
Seeger (40mm)
110 ₽/шт
16
91053-MV1-003
Roulement
1 354 ₽/шт
17
91253-KZR-601
DUST SEAL, 25X35X6
660 ₽/шт
18
91252-KZR-601
DUST SEAL, 25X40X5
660 ₽/шт
19
94101-10000
Rondelle (10 mm)
47 ₽/шт
20
95015-32001
JOINT B, BRAKE ARM
79 ₽/шт
21
95701-100-4000
Bolt, flange, 10x40
86 ₽/шт
22
11203-KVB-901
USH, RR. CUSHION UNDER R
582 ₽/шт
