Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA XR 150 L HONDA XR150LEKE XR150LEK 2014 HONDA F-4 HANDLE LEVER / SWITCH / CABLE (DISC BRAKE)

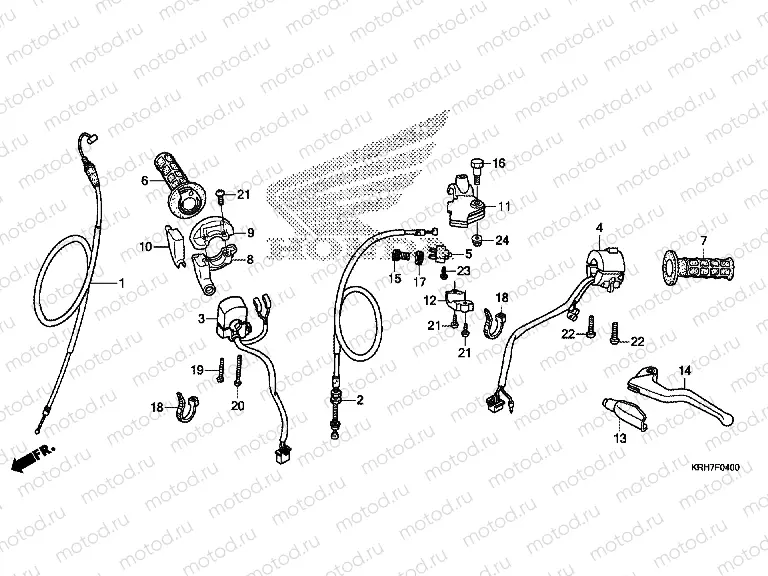

F-4 HANDLE LEVER / SWITCH / CABLE (DISC BRAKE)

F-4 HANDLE LEVER / SWITCH / CABLE (DISC BRAKE)
Например: 17910-KRH-A00
1
17910-KRH-A00
Câble de gaz
2
22870-KRH-780
Câble d'embrayage
3
35131-KRH-601
SW COMPSTART
4
35201-KRH-601
SW COMPWINKER
5
35330-KRH-901
SW ASSY CLUTCH
6
53140-KB9-752
Poignée d'accélérateur
2 269 ₽/шт
7
53166-MK5-010
Poignées (L.H.)
1 211 ₽/шт
8
53167-KRH-920
OUSING, UPPER THROTTLE
9
53168-KRH-920
OUSING, LOWER THROTTLE
10
53169-KRH-900
SLIDER, THROTTLE
11
53172-KRH-900
BRKTL HNDL LEVER
12
53174-KRH-900
OLDER, L. LEVER BRACKET
13
53177-KRH-900
COVER, L. HANDLE LEVER
14
53178-KRH-900
LEVER, L. STEERING HANDLE
15
53192-KRH-900
BOLT, WIRE ADJUSTING
16
90113-KRH-900
BOLTHNDL LEVERPI
17
90322-KRH-900
NUTFIXING
18
90650-KW3-000
BAND, WIRE
303 ₽/шт
19
93500-040-320G
Screw, pan, 4x32
39 ₽/шт
20
93500-040-450G
Screw, pan (4x45)
50 ₽/шт
21
93500-050-160G
Болт
39 ₽/шт
22
93500-050-200G
Болт
39 ₽/шт
23
93901-32320
Vis (3x10)
39 ₽/шт
24
94050-06000
Nut
55 ₽/шт
