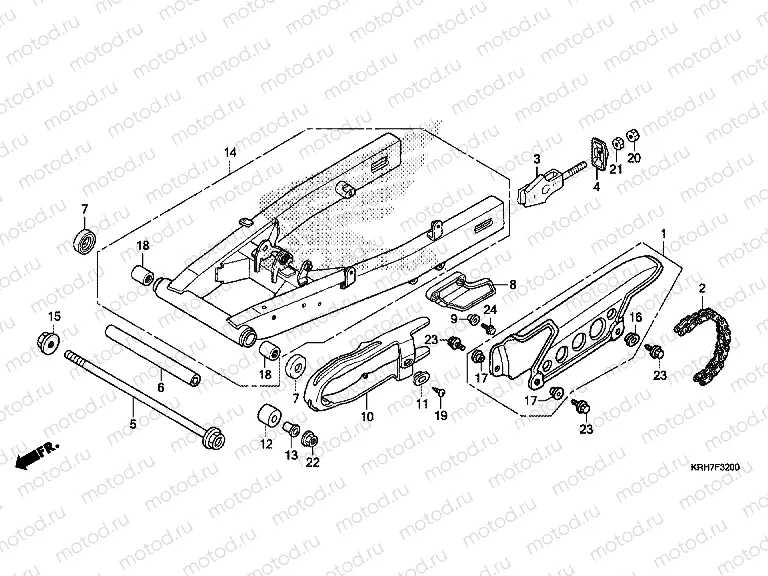

F-32 SWING ARM

F-32 SWING ARM
Например: 40510-KRH-900
1
40510-KRH-900
CASE, DRIVE CHAIN
2
40530-KRH-781
CHAIN DRIVE,CHOHO
3
40543-KRH-900
ADJUSTER, CHAIN
4
40546-KRH-900
CAP, RR. FORK END
5
52101-KRH-900
BOLT, SWINGARM PIVOT
6
52141-KRH-900
COLLAR, SWINGARM PIVOT CE
7
52144-356-005
CAP, SWINGARM DUST SEAL (
1 437 ₽/шт
8
52155-KRH-900
GUARDCHAIN
9
52159-KRH-900
COLLARCHAIN GUAR
10
52170-KRH-660
SLIDERCHAIN
11
52171-KRH-900
WASHCHAINSLIDER
12
52175-KRE-900
OLLER, CHAIN
13
52176-KRH-900
COLLARCHAIN ROLL
14
52200-KRH-780ZA
SWINGARM *NH411M*
15
90305-KYA-601
NUTFLG PT 14MM
16
90505-KRH-900
WASHER6X9
17
90512-KRH-900
ondelle (6,5x20)
18
91070-GC4-601
Needle bearing (20x26x20)
912 ₽/шт
19
93901-25080
Vis
39 ₽/шт
20
94002-080-000S
Гайка
47 ₽/шт
21
94030-08000
Nut
47 ₽/шт
22
94050-06000
Nut
55 ₽/шт
23
95701-060-1200
Bolt
58 ₽/шт
24
95701-060-2000
Bolt
55 ₽/шт
