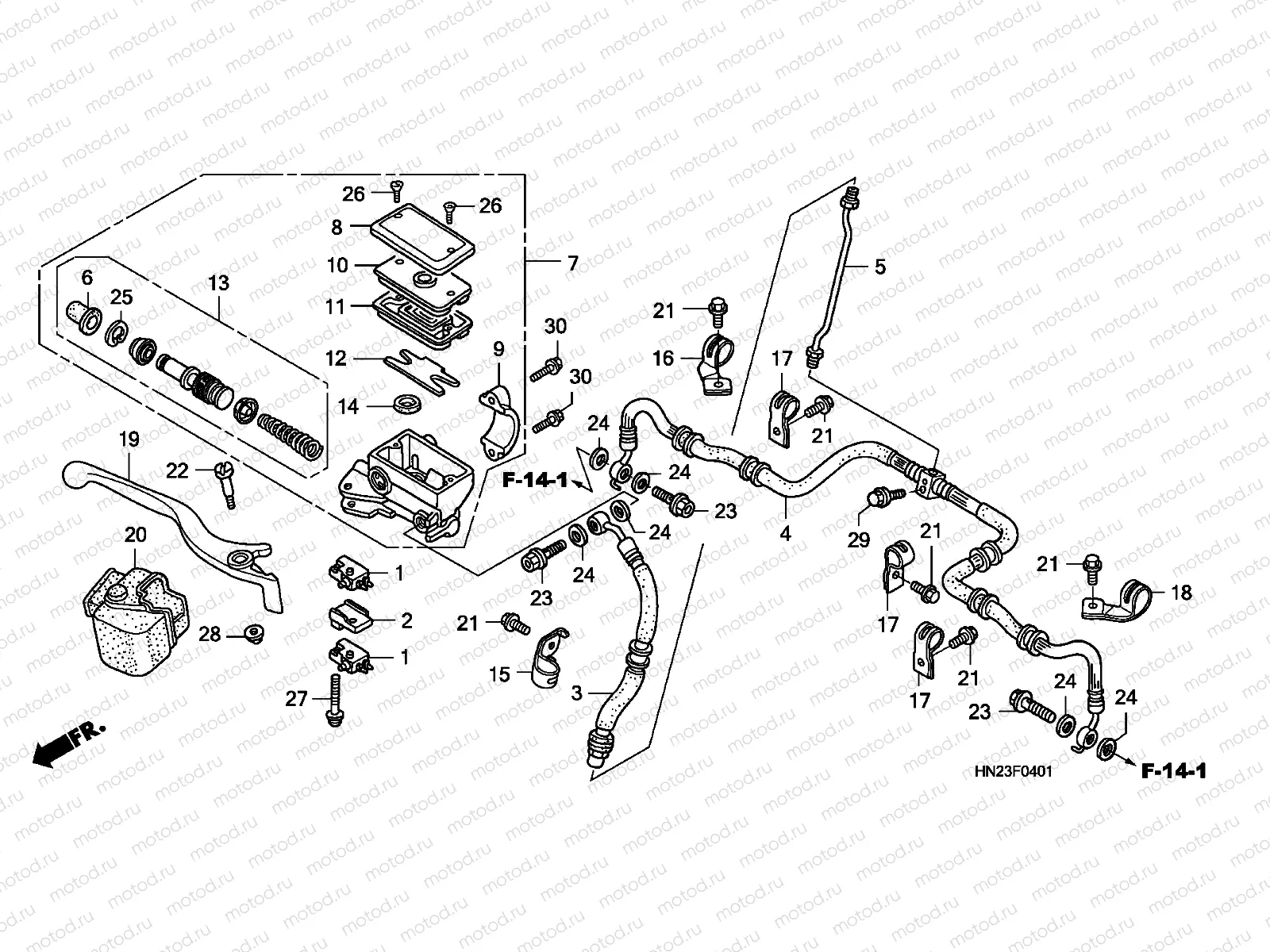

F-4-1 FR. BRAKE MASTER CYLINDER (TRX500FA5/6/7/8)

F-4-1 FR. BRAKE MASTER CYLINDER (TRX500FA5/6/7/8)
Например: 35340-ML4-005
1
35340-ML4-005
Commutateur de feu-stop
1 478 ₽/шт
2
35343-HN2-740
SPACER, FR. STOP SWITCH
3
45126-HN2-B71
OSE COMP AFR BR
4
45127-HP0-A01
OSE COMP BFR BR
5
45128-HN8-000
PIPE COMP., FR. BRAKE
6
45504-410-003
BOOT COMP.
771 ₽/шт
7
45510-HP0-A01
CYLINDER SUB ASSY., FR. B
8
45513-MB4-673
CAP, MASTER CYLINDER
2 305 ₽/шт
9
45517-MA5-671
HOLDER, MASTER CYLINDER
1 459 ₽/шт
10
45518-MB4-671
PLATE, DIAPHRAGM
849 ₽/шт
11
45520-MA5-672
DIAPHRAGM
1 255 ₽/шт
12
45523-HC5-971
FLOATFR M/C
13
45530-HN8-006
Kit de réparation pour de frein
14
46666-961-013
SEPARATOR COMP.
15
51206-HP0-A00
CLAMP BFR BRK HO
16
51207-HP0-A00
CLAMP A, R. FR. BRAKE HOS
17
51208-HP0-A00
CLAMP C, FR. BRAKE HOSE
18
51209-HP0-A00
CLAMP A, L. FR. BRAKE HOS
19
53175-HP0-A00
LEVER COMP., R. HANDLE
20
53176-HN8-000
COVER, R. HANDLE
21
90107-HC5-000
Vis
22
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
613 ₽/шт
23
90145-MS9-612
BOLT, OIL, 10X22 (SAGA)
726 ₽/шт
24
90545-300-000
Rondelle
291 ₽/шт
25
90651-MA5-671
CIRCLIP
275 ₽/шт
26
93600-040-120G
ВИНТ
39 ₽/шт
27
93893-040-3007
Screw-washer (4x30) (n/a: use
58 ₽/шт
28
94050-06000
Nut
55 ₽/шт
29
95701-060-2507
БОЛТ
66 ₽/шт
30
96001-060-2207
Болт
96 ₽/шт
