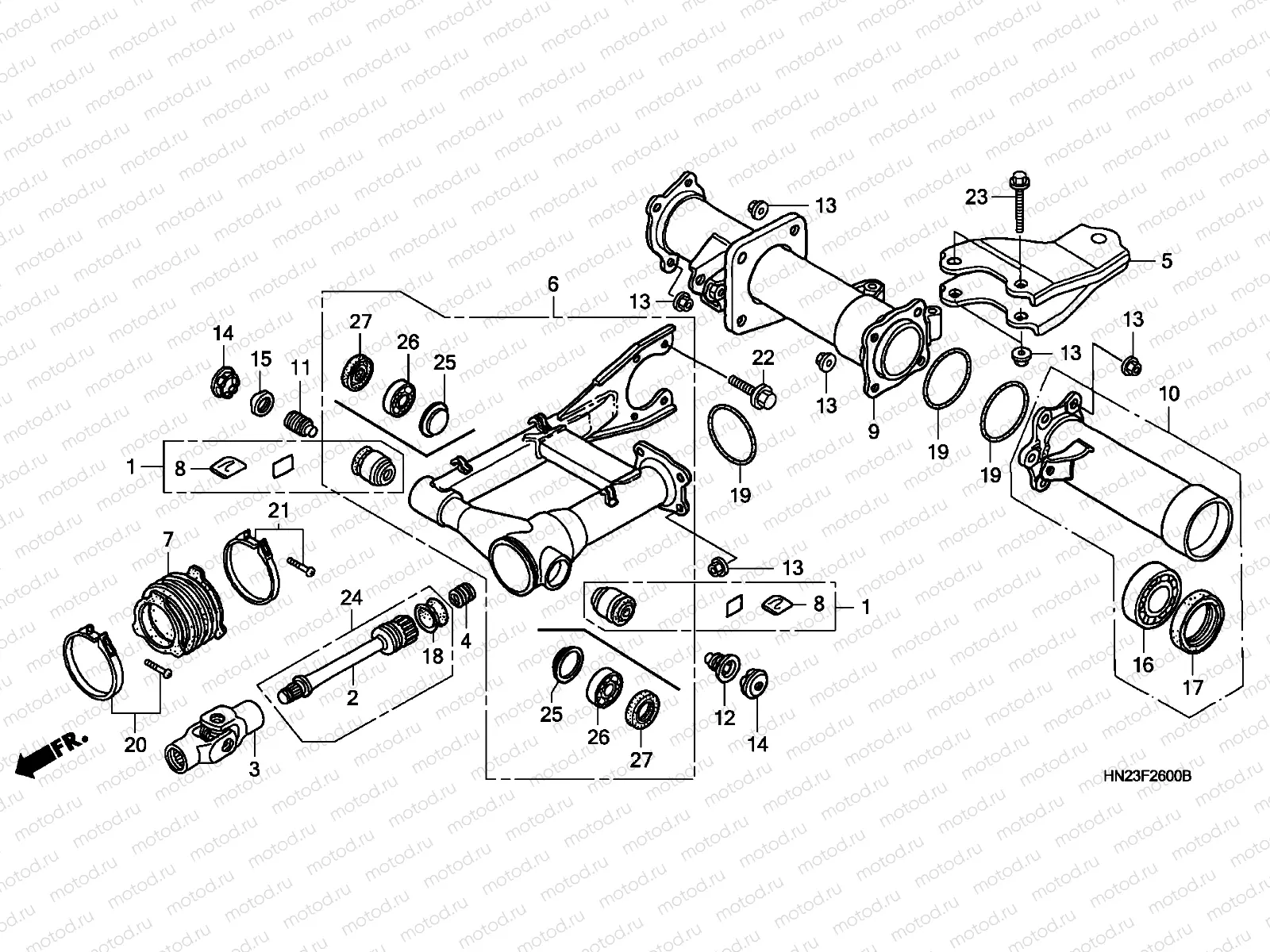

F-26 SWINGARM

F-26 SWINGARM
Например: 06912-HN2-010
1
06912-HN2-010
BRG SETTAPER ROL
2
40201-HN2-000
SHAFT, PROPELLER
3
40210-HN7-010
JOINT COMP., YOKE
4
40215-HN0-671
SPRING, PROPELLER SHAFT
5
50810-HP0-A00
ITCH COMPTRAILE
6
52100-HP0-A00
SWINGARM ASSYRR
7
52101-HM7-000
BOOT, JOINT
8
52102-HN2-P01
GREASE(SHELL 6459
9
52210-HP0-A00
IPE COMP RHOUSI
10
52300-HN2-000
PIPE ASSYL HOUSI
11
90121-HN2-000
BOLT, R. SWINGARM PIVOT
12
90122-HN2-000
BOLT LSWINGARM P
13
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
14
90312-HM5-670
CAP, LOCK NUT
15
90355-469-000
NUT, SWINGARM PIVOT LOCK
1 022 ₽/шт
16
91055-HN5-681
BEARING, RADIAL BALL, 32X
17
91255-HA0-681
Joint
1 548 ₽/шт
18
91302-HM7-003
SEAL A, RUBBER
19
91320-HM7-702
O-Ring
348 ₽/шт
20
95018-74250
BAND, AIR CLEANER CONNECT
21
95018-90250
BAND, AIR CLEANER CONNECT
22
95701-100-2000
Bolt
79 ₽/шт
23
95701-100-6000
Bolt, flange, 10x60
110 ₽/шт
24
40200-HP0-A00
SHAFT ASSYPROP
25
52112-MA1-300
HOLDER, RR. FORK GREASE
425 ₽/шт
26
91066-HC4-004
BEARING, ANGULAR, 7203
27
91268-HN0-A01
DUST SEAL, 26X40X5 (NOK)
