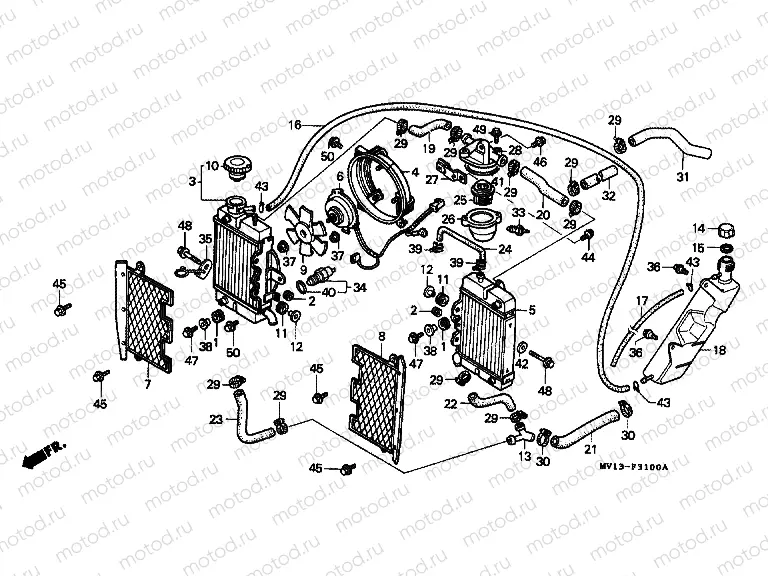

F-31 RADIATOR / COVER

F-31 RADIATOR / COVER
Например: 17245-107-010
1
17245-107-010
RUBBER, AIR CLEANER CASE
363 ₽/шт
2
18624-634-670
GROMMET, AIR BYPASS
3
19011-MS8-003
Radiateur - refroidisseur d’eau (RH)
4
19013-MV1-000
SHROUD COMP.
5
19020-MS8-003
Radiateur - refroidisseur d’eau (LH)
6
19030-MV1-003
OTOR ASSY.FAN
7
19031-MV1-000
GRILLER.RADIATOR ** NLA**
8
19032-MV1-000
GRILLEL.RADIATOR ** NLA**
9
19040-MF5-751
AN, COOLING (T.RAD)
4 612 ₽/шт
10
19045-MY3-621
CAP COMP., RADIATOR
2 760 ₽/шт
11
19051-MS8-000
Damper (Radiator)
315 ₽/шт
12
19052-MS8-000
Entretoise
322 ₽/шт
13
19069-MS8-000
JOINT, WATER HOSE
1 533 ₽/шт
14
19104-ME9-000
CAP, RESERVE TANK
876 ₽/шт
15
19107-MG8-000
PACKING, RESERVE TANK
283 ₽/шт
16
19107-MV1-000
TUBEOVERFLOW
17
19108-MV1-000
TUBEDRAIN
18
19110-MV1-000
TANKRESERVE
19
19222-MS8-000
HOSEWATER (NO.5)** NLA **
20
19223-MS8-000
HOSENO.6 WATER** NLA **
21
19231-MS8-000
Durite radiateur
851 ₽/шт
22
19232-MS8-000
HOSE,L.WATER
23
19234-MS8-000
HOSE,R.WATER
24
19235-MV1-000
TUBE,RADIATOR JOI
25
19300-KE8-000
Thermostat
5 982 ₽/шт
26
19311-MS8-000
Thermostat cover
4 729 ₽/шт
27
19312-MS8-010
BRKTTHERMOSTAT
28
19315-MM9-000
Thermostat cover
29
19506-KS6-700
Collier
739 ₽/шт
30
19516-MB6-000
Collier
991 ₽/шт
31
19521-MS8-000
HOSEFR.OUTER WAT ** NLA**
32
19522-MS8-000
HOSERR.OUTER WAT ** NLA**
33
37750-PC1-004
THERMO UNIT (DENSO)
4 523 ₽/шт
34
37760-MR1-003
Water temperature switch
7 040 ₽/шт
35
50716-MV1-000
GUIDE,CLUTCH CABL
36
90111-162-000
Vis
338 ₽/шт
37
90315-MK3-003
NUT, SERRATE, 5MM
215 ₽/шт
38
61104-422-000
COLLAR, SETTING
503 ₽/шт
39
90661-MV1-000
CLIP,SPA14
40
91214-ZM3-003
OIL SEAL, 15X25X6
41
91311-KE8-000
O-Ring
259 ₽/шт
42
94103-06700
Rondelle (6 mm)
39 ₽/шт
43
95002-02100
Collier
55 ₽/шт
44
95701-060-1200
Bolt
58 ₽/шт
45
95701-060-1207
Bolt
58 ₽/шт
46
95701-060-1800
Bolt, flange, 6x18
55 ₽/шт
47
95701-060-2007
Bolt
61 ₽/шт
48
95801-060-2807
Болт
63 ₽/шт
49
96001-060-2007
Болт
63 ₽/шт
50
96001-060-1007
БОЛТ
55 ₽/шт
