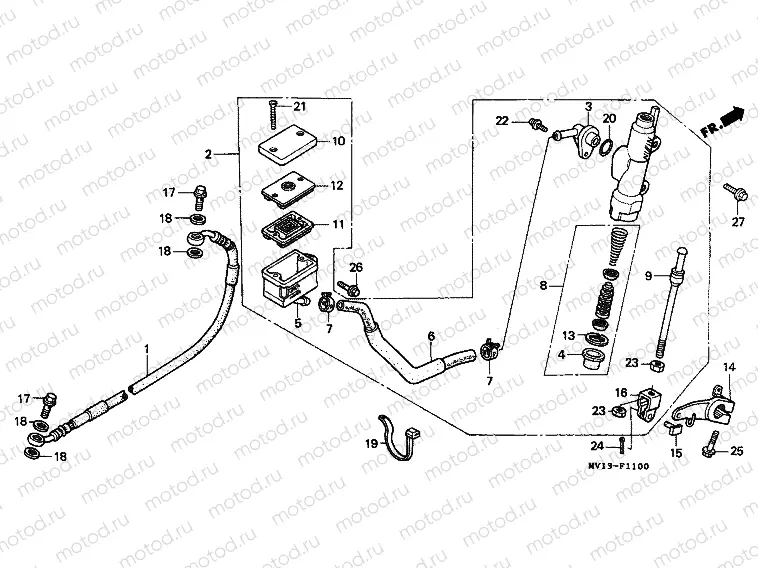

F-11 REAR MAIN BRAKE CYLINDER

F-11 REAR MAIN BRAKE CYLINDER
Например: 43310-MV1-003
1
43310-MV1-003
Durite de frein (Rear)
2
43500-MS8-612
/CASSY REAR*** NLA ***
3
43503-MS8-006
CONNECTOR
916 ₽/шт
4
43504-MB2-006
OOT COMP.
566 ₽/шт
5
43511-KT8-006
CUP COMP., OIL
2 170 ₽/шт
6
43512-MS8-006
HOSEMASTER CYLIN
7
43514-445-771
CLAMP, MASTER CYLINDER OI
1 022 ₽/шт
8
43520-MB2-315
Kit de réparation pour de frein (NISSIN)
4 393 ₽/шт
9
43530-MS8-006
ROD COMP.PUSH
10
45513-KK1-771
CAP, MASTER CYLINDER
11
45520-MG7-006
DIAPHRAGM
739 ₽/шт
12
45521-HA2-006
PLATE, DIAPHRAGM
802 ₽/шт
13
46182-500-013
CIRCLIP
189 ₽/шт
14
46502-MS8-000
ARMRR.BRAKE MIDD
15
95015-54000
PIN D, JOINT
173 ₽/шт
16
46504-MB2-006
JOINT, BRAKE ROD
17
90145-MS9-612
BOLT, OIL, 10X22 (SAGA)
726 ₽/шт
18
90545-300-000
Rondelle
291 ₽/шт
19
90652-KT1-771
BAND, WIRE (BLACK)
244 ₽/шт
20
91212-422-006
O-Ring
283 ₽/шт
21
93600-040-401G
Screw, flat (4x40)
41 ₽/шт
22
93893-040-1208
Screw-washer
61 ₽/шт
23
94002-080-000S
Гайка
47 ₽/шт
24
94201-20120
PIN, SPLIT, 2.0X12
39 ₽/шт
25
95701-080-2508
Bolt
79 ₽/шт
26
96300-060-1400
Болт
66 ₽/шт
27
96300-060-1600
Болт
69 ₽/шт
