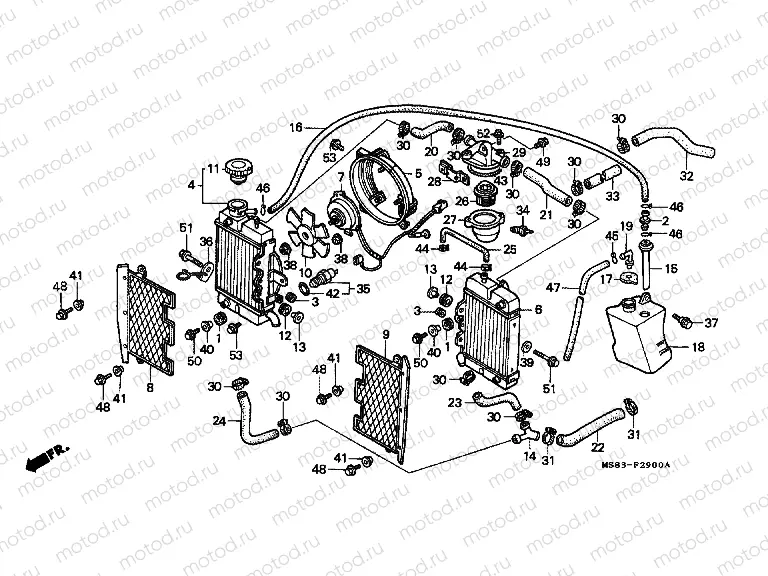

F-29 RADIATOR

F-29 RADIATOR
Например: 17245-107-010
1
17245-107-010
RUBBER, AIR CLEANER CASE
363 ₽/шт
2
17359-419-670
JOINT, BREATHER TUBE
244 ₽/шт
3
18624-634-670
GROMMET, AIR BYPASS
4
19011-MS8-003
Radiateur - refroidisseur d’eau (RH)
5
19013-MS8-003
HROUD COMP.(TOYO
6
19020-MS8-003
Radiateur - refroidisseur d’eau (LH)
7
19030-MS8-010
OTOR ASSY.FAN
8
19031-MV1-000
GRILLER.RADIATOR ** NLA**
9
19032-MV1-000
GRILLEL.RADIATOR ** NLA**
10
19040-MF5-751
AN, COOLING (T.RAD)
4 612 ₽/шт
11
19045-MY3-621
CAP COMP., RADIATOR
2 760 ₽/шт
12
19051-MS8-000
Damper (Radiator)
315 ₽/шт
13
19052-MS8-000
Entretoise
322 ₽/шт
14
19069-MS8-000
JOINT, WATER HOSE
1 533 ₽/шт
15
19205-MF5-010
TUBE,LEVEL
16
19107-MS8-000
TUBEOVERFLOW
17
19108-KK4-000
CAP, RESERVE TANK
708 ₽/шт
18
19110-MS8-000
TANKRESERVE ** NLA**
19
19113-KR1-760
ADAPTER, RESERVE CAP
912 ₽/шт
20
19222-MS8-000
HOSEWATER (NO.5)** NLA **
21
19223-MS8-000
HOSENO.6 WATER** NLA **
22
19231-MS8-000
Durite radiateur
851 ₽/шт
23
19232-MS8-000
HOSE,L.WATER
24
19234-MS8-000
HOSE,R.WATER
25
19235-MS8-000
TUBERAD JOINT
26
19300-KE8-000
Thermostat
5 982 ₽/шт
27
19311-MS8-000
Thermostat cover
4 729 ₽/шт
28
19312-MS8-010
BRKTTHERMOSTAT
29
19315-MM9-000
Thermostat cover
30
19506-KS6-700
Collier
739 ₽/шт
31
19516-MB6-000
Collier
991 ₽/шт
32
19521-MS8-000
HOSEFR.OUTER WAT ** NLA**
33
19522-MS8-000
HOSERR.OUTER WAT ** NLA**
34
37750-PC1-004
THERMO UNIT (DENSO)
4 523 ₽/шт
35
37760-MR1-003
Water temperature switch
7 040 ₽/шт
36
50716-MS8-000
GUIDECLUTCH CABL
37
90111-162-000
Vis
338 ₽/шт
38
90315-MK3-003
NUT, SERRATE, 5MM
215 ₽/шт
39
94103-06700
Rondelle (6 mm)
39 ₽/шт
40
61104-422-000
COLLAR, SETTING
503 ₽/шт
41
90522-170-700
COLLAR, GEARSHIFT LEVER
244 ₽/шт
42
91214-ZM3-003
OIL SEAL, 15X25X6
43
91311-KE8-000
O-Ring
259 ₽/шт
44
95002-412-0004
Clamp
79 ₽/шт
45
95002-02070
Collier
47 ₽/шт
46
95002-02120
Collier
55 ₽/шт
47
95005-456-0030S
TUBE
48
95701-060-1207
Bolt
58 ₽/шт
49
95701-060-1800
Bolt, flange, 6x18
55 ₽/шт
50
95801-060-2507
Bolt
63 ₽/шт
51
95801-060-2807
Болт
63 ₽/шт
52
96001-060-2007
Болт
63 ₽/шт
53
96001-060-1007
БОЛТ
55 ₽/шт
