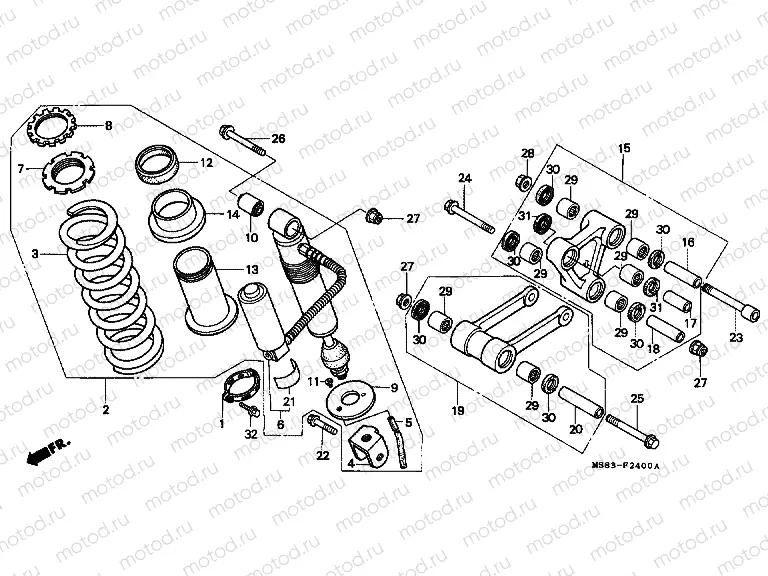

F-24 REAR SHOCK ABSORBER

F-24 REAR SHOCK ABSORBER
Например: 50252-KR6-000
1
50252-KR6-000
BANDSUB TANK ** NLA**
2
52400-MS8-611ZA
CUSHION ASSY*NH1*
3
52401-MS8-003ZA
PRINGRR.CU*NH1*
4
52403-MM9-003
ETALJOINT ** NLA**
5
52405-MN8-405
PIPE DRAIN
6
52410-MS8-611
DAMPER COMP.RR.
7
52422-MA0-003
DJUSTER, SPRING
1 676 ₽/шт
8
52423-KA3-711
NUTADJUSTING
9
52424-KB7-003
STOPPER, SPRING SEAT
10
52451-MA0-000
BUSH, DAMPER LOWER
833 ₽/шт
11
52456-KB7-003
JOINTPIPE
12
52457-KB7-003
SEAL, DUST
629 ₽/шт
13
52458-KR6-003
GUIDE, SPRING
949 ₽/шт
14
52459-KB7-003
SEAT C, SPRING (SHOWA)
1 472 ₽/шт
15
52460-MS8-000
ARM ASSY.CUSHION
16
52463-MS8-000
COLLAR A, CUSHION ARM
17
52464-MN9-000
COLLAR, DAMPER LOWER
18
52464-MS8-000
COLLAR B, CUSHION ARM
19
52470-MS8-000
ROD ASSY.,CUSH CO
20
52473-MS8-000
COLLARCUSHION CO ** NLA**
21
87516-MBL-610
ABEL, RR. DAMPER
338 ₽/шт
22
90126-KT2-000
Vis
739 ₽/шт
23
90128-MV1-000
is
24
90130-KA3-730
Vis
1 387 ₽/шт
25
90151-MM9-000
Vis
26
90154-HA6-000
Vis
744 ₽/шт
27
90304-GBL-003
Nut (10 mm)
307 ₽/шт
28
90306-KF0-003
Nut (12 mm)
346 ₽/шт
29
91079-KA3-831
Needle bearing (17,5x24,5x22)
1 488 ₽/шт
30
91205-KT2-005
Joint
476 ₽/шт
31
91261-MN9-005
SEAL, CUSHION ARM, 17.5X2
448 ₽/шт
32
96300-060-2500
Bolt, flange, 6x25
83 ₽/шт
