Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA NSS 125 Forza HONDA NSS125ADH 2017 HONDA (VIN: ZDCJF69A) F-24 SEAT

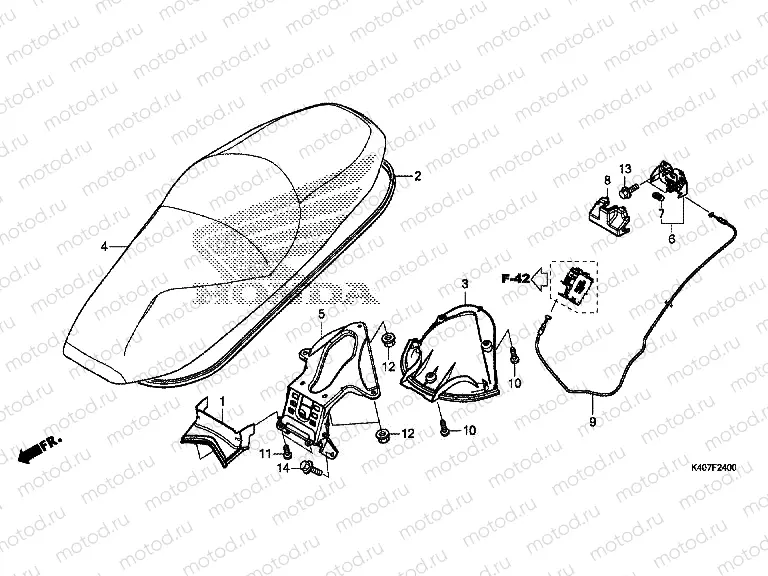

F-24 SEAT

F-24 SEAT
Например: 77110-K40-F00ZD
1
77110-K40-F00ZD
COVER SEAT HINGE *N
1
77110-K40-F00ZG
COVER SEAT HINGE *N
1
77110-K40-F00ZF
COVER SEAT HINGE *Y
1
77110-K40-F00ZE
COVER SEAT HINGE *P
2
77115-K40-F00
RUBBER, SEAL
3
77160-K40-F00
COVER SEAT HINGE UN
4
77200-K40-F00ZA
SEAT COMP., DOUBLE *TYPE1
5
77210-K40-F00
HINGE ASSY. SEAT
6
77230-K35-V00
CATCH COMP., SEAT
3 598 ₽/шт
7
77234-K35-V00
SPRING, SEAT LOCK
283 ₽/шт
8
77237-K35-V00
COVER, SEAT CATCH
708 ₽/шт
9
77240-K40-F01
CABLE COMP. SEAT LO
10
93903-24480
Vis
39 ₽/шт
11
93903-34380
Vis
44 ₽/шт
12
94050-06000
Nut
55 ₽/шт
13
95701-060-1200
Bolt
58 ₽/шт
14
95701-080-1608
Bolt
63 ₽/шт
