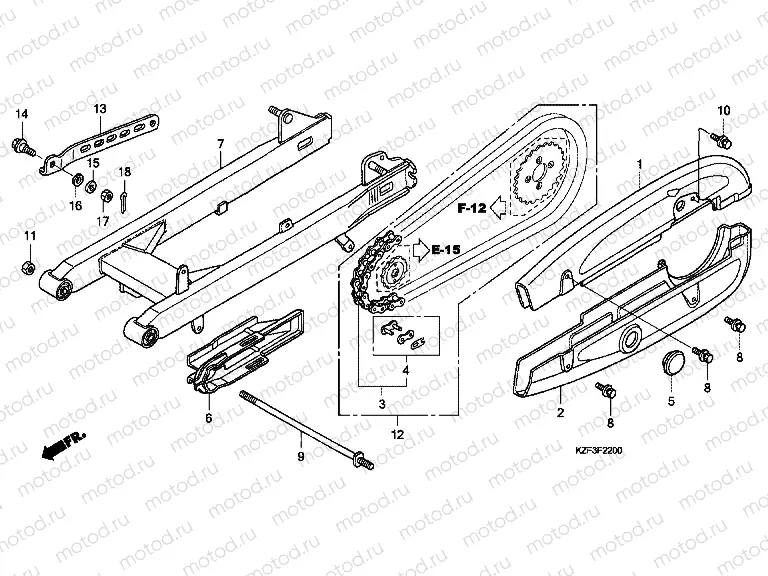

F-22 SWING ARM / CHAIN ​​CABINET (E, ED, F)

F-22 SWING ARM / CHAIN ​​CABINET (E, ED, F)
Например: 40510-KPH-900ZA
1
40510-KPH-900ZA
CASE, UPPER HALF DRIVE CH
2
40520-KPH-900ZA
CASE, UNDER HALF DRIVE CH
3
40530-KPH-902
CHAINDRIVE DID42
4
40531-KPH-901
JOINT RJDRIVE CH
5
40545-001-000
CAP, CHAIN CASE PEEP HOLE
503 ₽/шт
6
40591-KPH-900
ACKING, DRIVE CHAIN CASE
7
52200-KTM-D20ZA
SWINGARM *NH364M*
8
90118-383-000
Vis
283 ₽/шт
9
90121-KPH-900
BOLTSWINGARM PIV
10
93401-060-1000
Bolt-washer,6x10
58 ₽/шт
11
94031-10000
Nut (10 mm)
55 ₽/шт
12
06406-KTM-D20
CHAIN KIT, DRIVE (Standard original)
13
43431-KPH-700
ARMRR BRK STPR
14
92812-10000
BOLT A, STOPPER ARM
197 ₽/шт
15
94101-08000
Rondelle (8 mm)
39 ₽/шт
16
94111-10000
Rondelle (Spring, 10 mm)
315 ₽/шт
17
94001-080-000S
Гайка
47 ₽/шт
18
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
