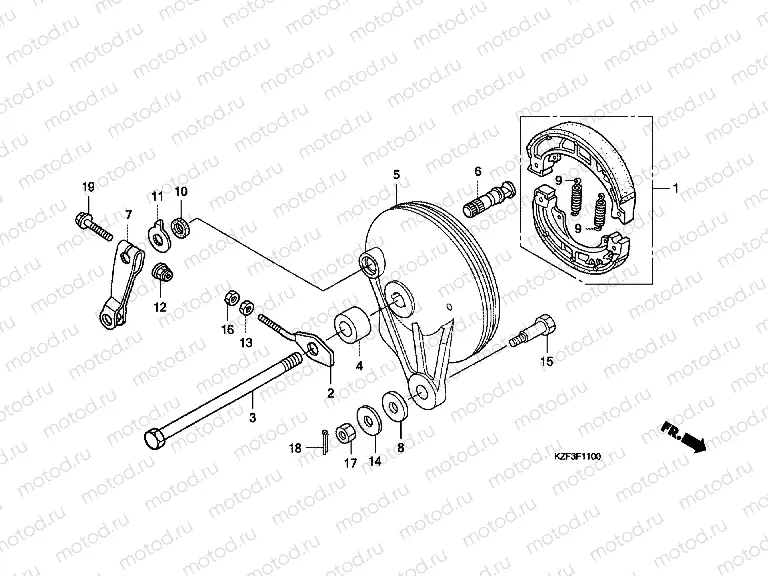

F-11 REAR BRAKE PANEL

F-11 REAR BRAKE PANEL
Например: 06430-KPH-900
1
06430-KPH-900
Brake shoe
3 540 ₽/шт
2
40543-KPH-970
ADJUSTER, R. CHAIN
3
42301-KPG-900
AXLE, RR. WHEEL (Rear)
4
42313-KTM-D00
COLLAR, R. RR. WHEEL SIDE
5
43100-KPH-700ZA
NEL COM*NH364M*
6
43141-GC5-003
AMREAR BRAKE
1 478 ₽/шт
7
43410-KPH-970
ARMRR BRK
8
43434-ME1-670
RUBBER, STOPPER ARM
283 ₽/шт
9
45133-028-000
SPRING, BRAKE SHOE
228 ₽/шт
10
45134-250-000
DUST SEAL, BRAKE CAM
204 ₽/шт
11
45145-KFM-900
INDICATOR, FR. BRAKE
354 ₽/шт
12
90301-KGH-901
NUT, U, 6MM (FUJI SEIMITS
244 ₽/шт
13
90302-KBP-900
Nut (spec. 6mm)
215 ₽/шт
14
90524-030-000
Rondelle
189 ₽/шт
15
92811-10000
BOLT A, BRAKE STOPPER
197 ₽/шт
16
94001-062-000S
Гайка
47 ₽/шт
17
94001-080-000S
Гайка
47 ₽/шт
18
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
19
95701-060-3500
Bolt, flange, 6x35
63 ₽/шт
